Removal








2UR-GSE ENGINE CONTROL: HEATED OXYGEN SENSOR: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal
2. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal
3. REMOVE FRONT DOOR SCUFF PLATE RH Removal
4. REMOVE FRONT DOOR OPENING TRIM COVER RH Removal
5. REMOVE FRONT FLOOR FOOTREST LH Removal
6. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
(a) Remove the front floor silencer pad LH.





(b) Disconnect the heated oxygen sensor connector.





(c) Remove the grommet.

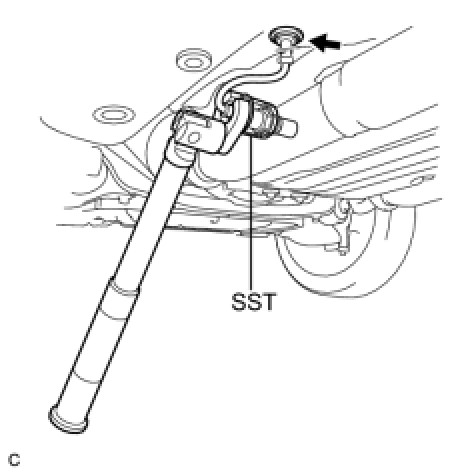

(d) Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
SST: 09224-00010
7. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
(a) Remove the front floor silencer pad RH.





(b) Disconnect the heated oxygen sensor connector.





(c) Remove the grommet.

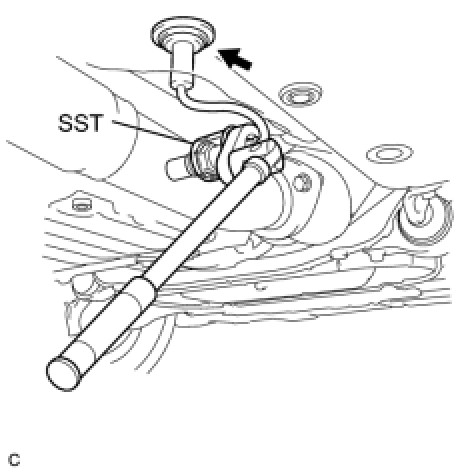

(d) Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
SST: 09224-00010
