Inspection

2UR-GSE ENGINE CONTROL: CAMSHAFT TIMING CONTROL MOTOR: INSPECTION

INSPECTION

1. INSPECT CAMSHAFT TIMING CONTROL MOTOR

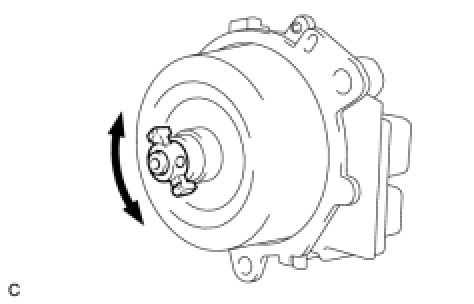

(a) Rotate the joint of the camshaft timing control motor assembly by hand.
Standard Condition:
The motor rotates smoothly.
- Do not drop the camshaft timing control motor assembly. If dropped, replace the camshaft timing control motor assembly.
- Do not disassemble the camshaft timing control motor assembly. If disassembled, replace the camshaft timing control motor assembly.
- Do not allow foreign matter to contact the oil seal face of the camshaft timing control motor (the surface that contacts the timing chain cover sub-assembly).
If the result is not as specified, replace the camshaft timing control motor assembly.
