Installation








DOOR LOCK: DOOR CONTROL RECEIVER (for Luggage Compartment): INSTALLATION

INSTALLATION

1. INSTALL NO. 2 DOOR CONTROL RECEIVER





(a) Install the door No. 2 control receiver with the nut.
(b) Connect the connector.
2. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER RH

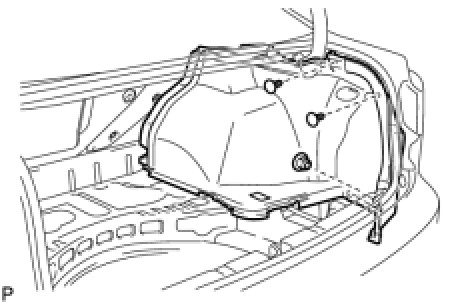

(a) Install the side luggage compartment trim cover with the 3 clips.
3. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK





(a) Install the No. 1 luggage compartment trim hook with the screw.
4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER Installation
5. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK Installation
6. INSTALL ROPE HOOK Installation
7. INSTALL NO. 2 ROOM LIGHT ASSEMBLY Installation
8. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER Installation
9. INSTALL ROPE HOOK ASSEMBLY





(a) Install the 3 rope hook assemblies with the 3 bolts.
10. INSTALL DECK SIDE TRIM BOX RH
11. INSTALL DECK SIDE TRIM BOX LH
12. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER
