Oil Pan, Engine

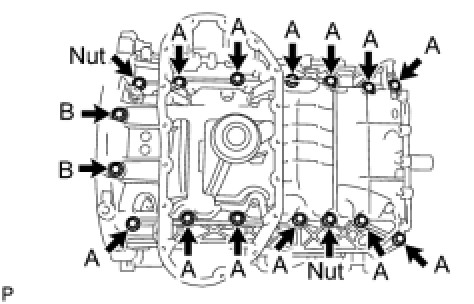

OIL PAN SUB-ASSEMBLYInstall the
oil pan sub-assembly with the 14 bolts and 2 nuts.
Bolt A - Torque: 35 Nm (357 kgf-cm, 26 ft-lbf)
Bolt B - Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
Nut - Torque: 35 Nm (357 kgf-cm, 26 ft-lbf)

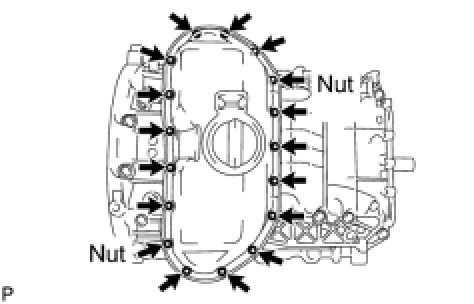

NO. 2 OIL PAN SUB-ASSEMBLYInstall the No. 2
oil pan sub-assembly with the 15 bolts and 2 nuts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
