Oil Pump, Engine
OIL PUMP COVER
Install the oil pump cover to the
timing chain cover sub-assembly with the 13 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
SCAVENGING PUMP ASSEMBLY
Temporarily install the scavenging pump assembly and a new gasket with the 6 bolts.

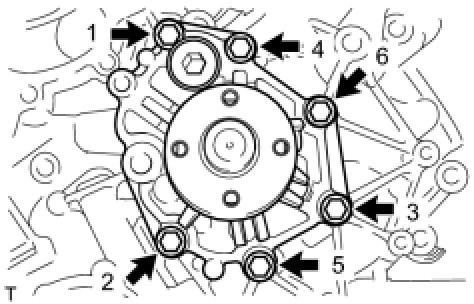

Using several steps, uniformly install and tighten the 6 bolts in the sequence shown in the illustration.
Torque: 23 Nm (235 kgf-cm, 17 ft-lbf)
