Torque Specifications

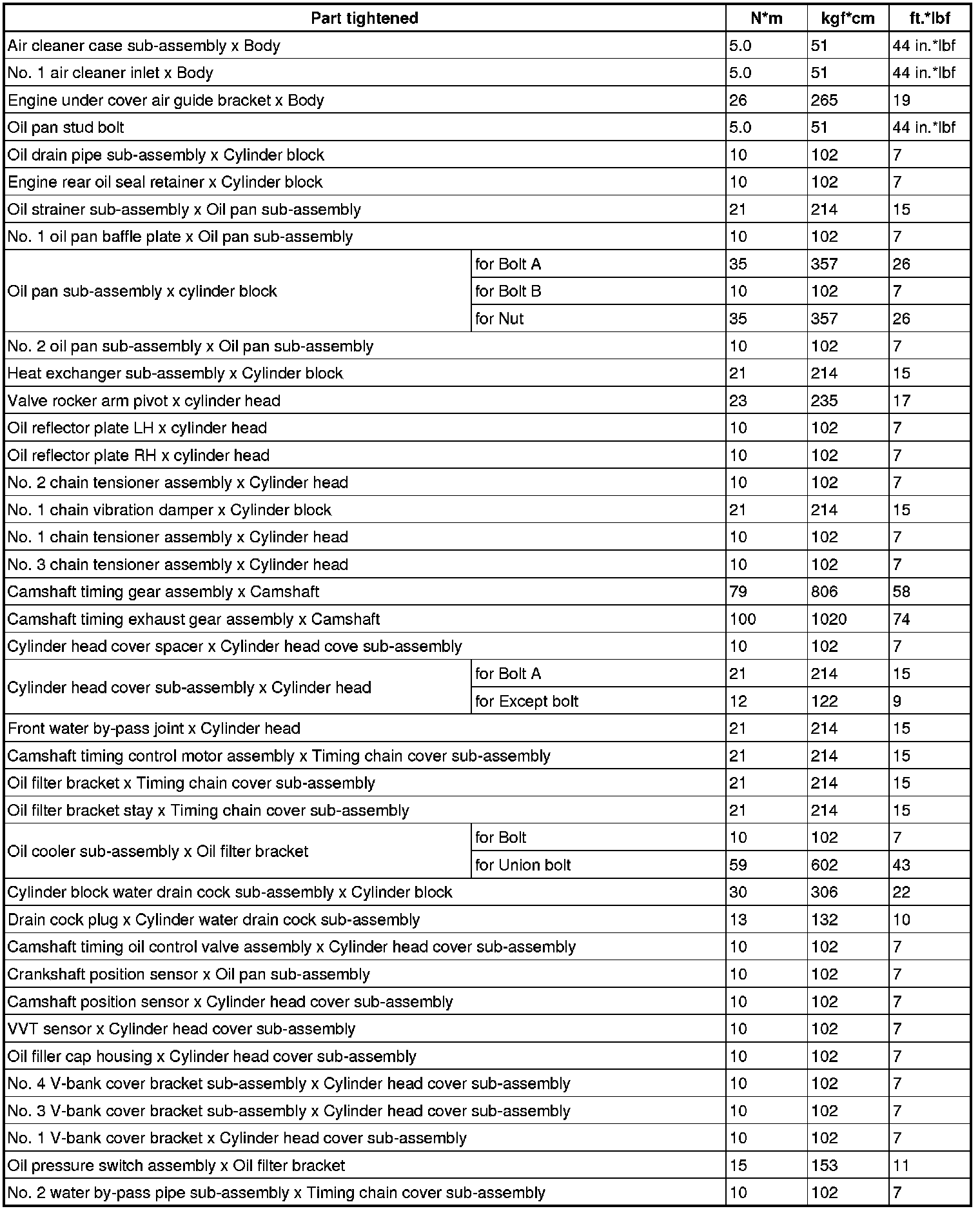

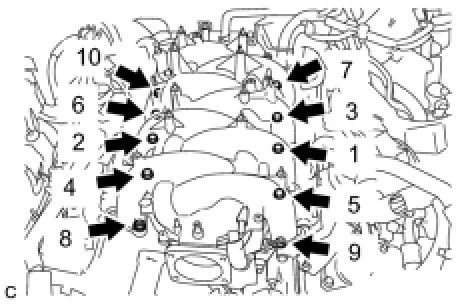

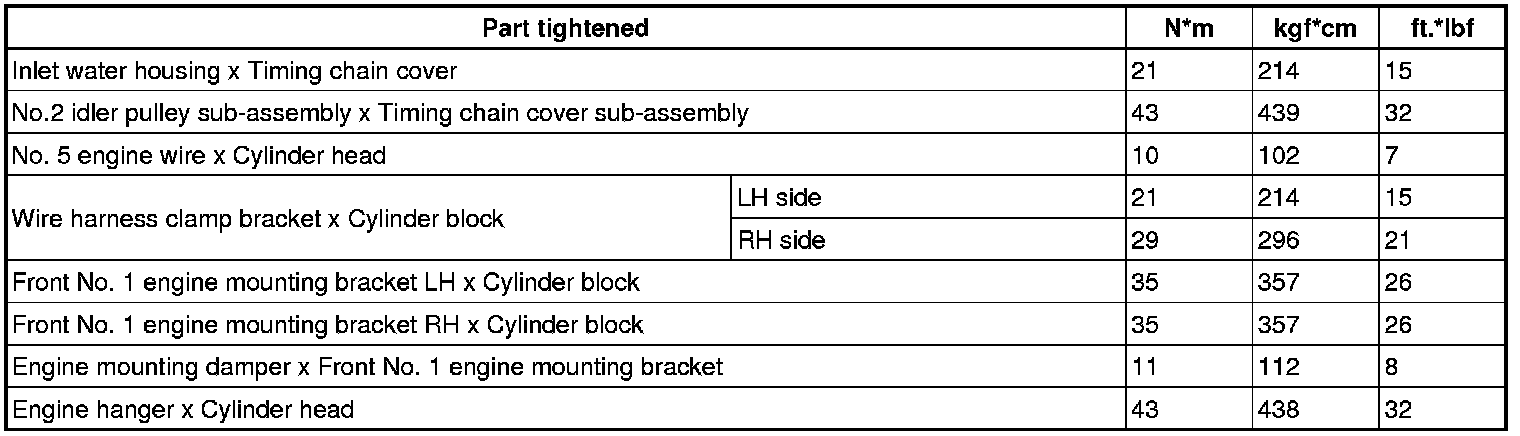

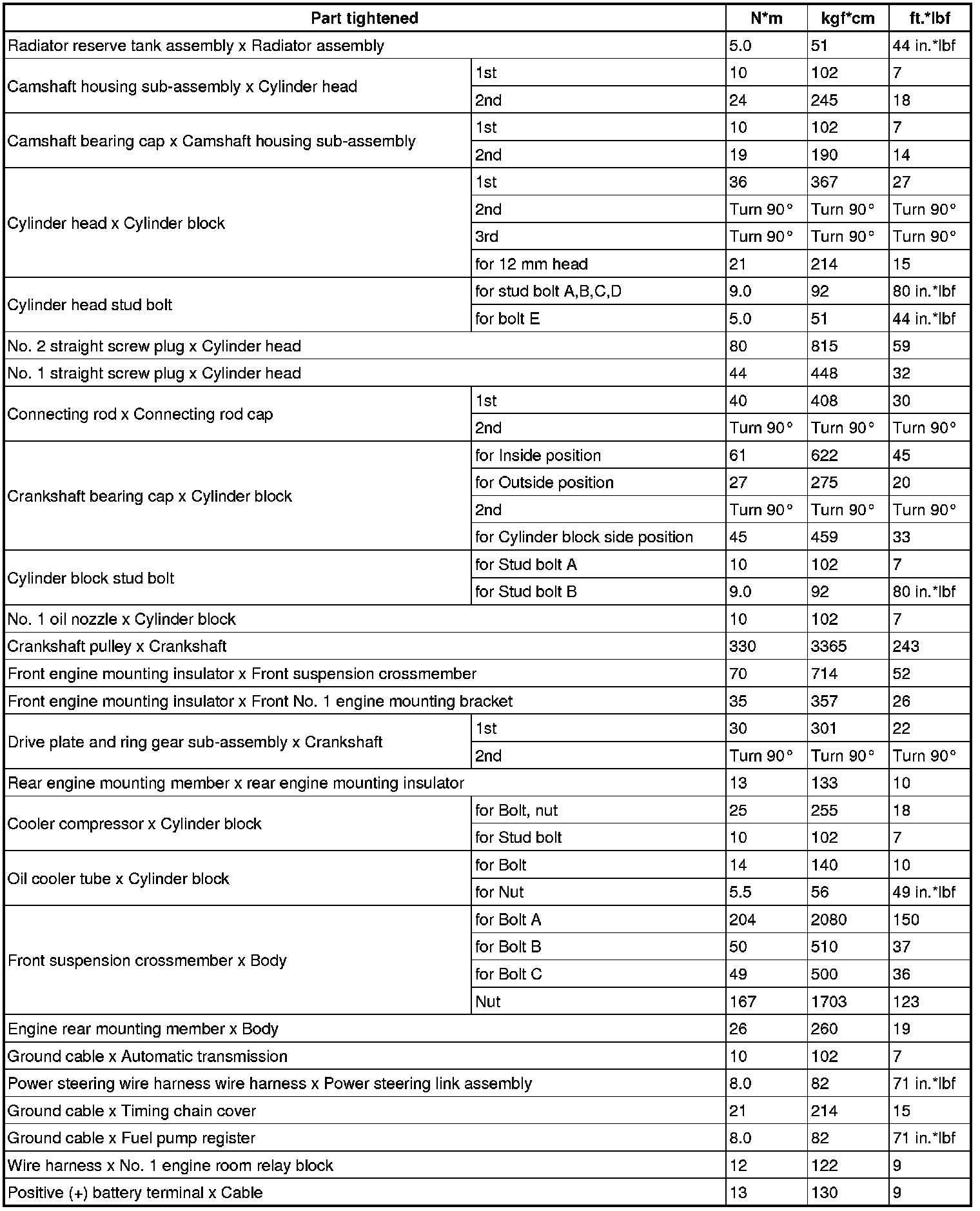

SPECIFICATIONS: 2UR-GSE ENGINE MECHANICAL: TORQUE SPECIFICATIONSTORQUE SPECIFICATIONSIntake air surge tank assembly
21 Nm (214 kgf-cm, 15 ft-lb)
Oil pump cover x
Timing chain cover sub-assembly
10 Nm (102 kgf-cm, 7 ft lb)

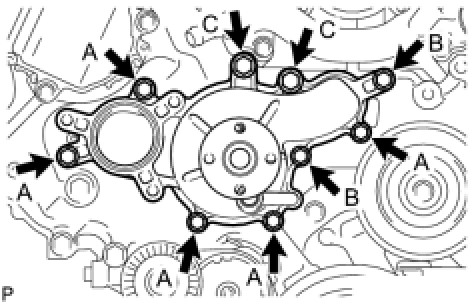

Water pump
Torque
20 Nm (204 kgf-cm, 15 ft-lb)
Torque
23 Nm (235 kgf-cm, 17 ft-lb)
Torque
47 Nm (479 kgf-cm, 35 ft-lb)

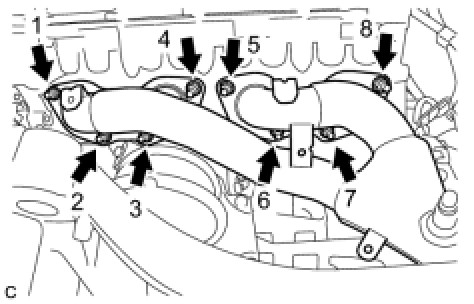

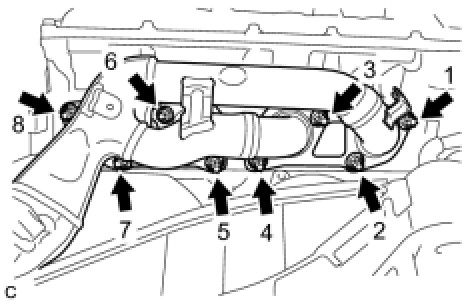

Exhaust manifold sub-assembly
21 Nm (214 kgf-cm, 15 ft lb)
LH:
RH:
