Timing Cover

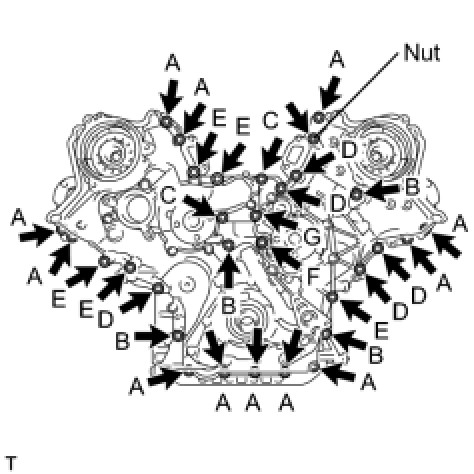

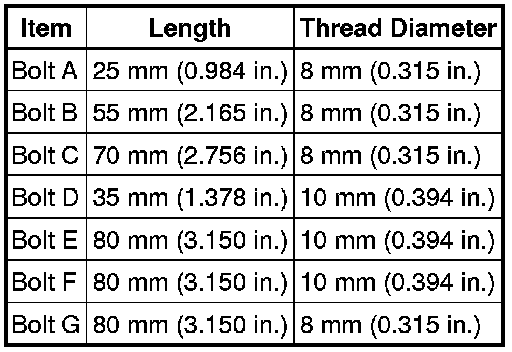

TIMING CHAIN COVER SUB-ASSEMBLYBolt Length:

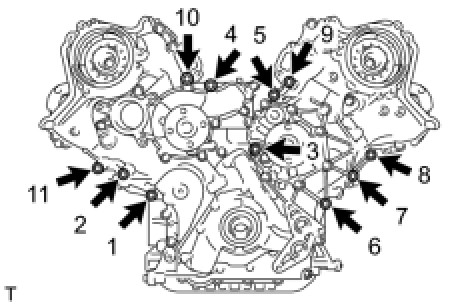

Tighten the 11 bolts in several steps, in the sequence shown in the illustration.
Torque: 47 Nm (479 kgf-cm, 35 ft-lbf)

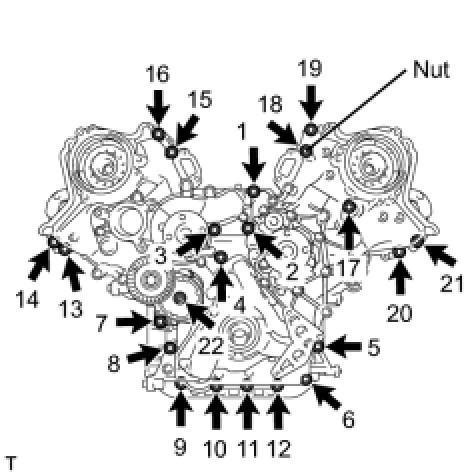

Tighten the 21 bolts and nut in several steps, in the sequence shown in the illustration.
Torque: 23 Nm (235 kgf-cm, 17 ft-lbf)
HINT: Use a 6 mm socket hexagon wrench to tighten the bolt numbered 22 in the illustration.
