AUDIO / VISUAL: SATELLITE RADIO TUNER: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.





1. INSTALL NO. 1 SATELLITE RADIO TUNER BRACKET

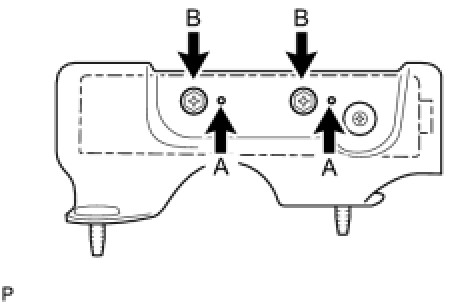

(a) Set the bracket's aligning protrusions labeled A into the tuner holes.
(b) Install the bracket with the 2 bolts labeled B.





2. INSTALL NO. 2 SATELLITE RADIO TUNER BRACKET
(a) Set the bracket's aligning protrusions labeled A into the tuner holes.
(b) Install the bracket with the 2 bolts labeled B.





3. INSTALL SATELLITE RADIO TUNER ASSEMBLY WITH BRACKET
(a) Install the tuner with the 3 nuts.
(b) Connect the connectors.
4. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Installation
5. INSTALL NO. 1 COOLER COVER (W/ Rear Cooler) Installation
6. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT Installation
7. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (W/O Rear Cooler) Installation
8. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Installation
9. INSTALL REAR FLOOR FINISH PLATE Installation
10. INSTALL DECK TRIM SIDE BOARD RH Installation
11. INSTALL ROPE HOOK Installation
12. INSTALL ROPE HOOK ASSEMBLY Installation
13. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Installation
14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
15. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
16. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
