CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Removal
2. REMOVE BATTERY SERVICE HOLE COVER LH Removal
3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTICE:
- After the power switch is turned OFF, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the power switch OFF, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. REMOVE SWITCH AND VOLUME CASE Removal
5. REMOVE LOWER NO. 2 STEERING WHEEL COVER Removal
6. REMOVE STEERING PAD Removal

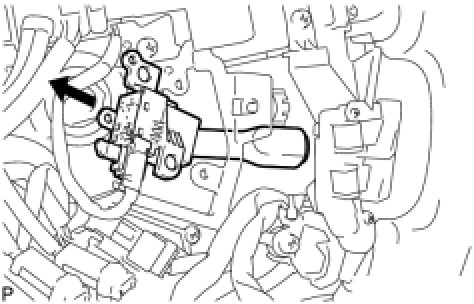

7. REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY

(a) Disconnect the connector and clamp.

(b) Remove the 2 screws.
