Installation








CRUISE CONTROL: OBJECT RECOGNITION ECU: INSTALLATION

INSTALLATION

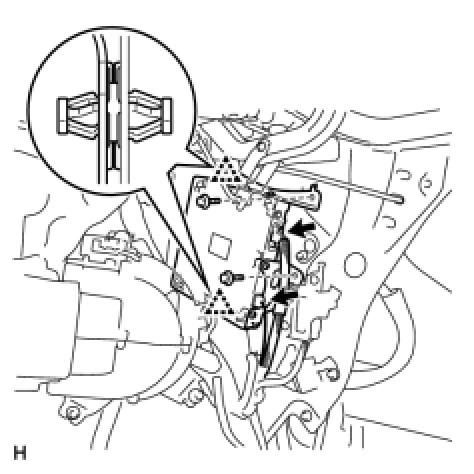

1. INSTALL OBJECT RECOGNITION ECU
(a) Attach the 2 clips to install the ECU.
(b) Install the 2 bolts.
Torque: 7.4 Nm (76 kgf-cm, 66in-lbf)
(c) Connect the 2 connectors.
NOTICE:
Do not use an ECU which has been dropped or subjected to any strong shocks.

2. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Installation
3. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER Installation
4. INSTALL NO. 1 COOLER COVER (w/ Rear Cooler) Installation
5. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Installation
6. INSTALL REAR FLOOR FINISH PLATE Installation
7. INSTALL TOOL BOX (w/o Spare Tire) Installation
8. INSTALL DECK BOARD ASSEMBLY (w/o Spare Tire)
9. INSTALL DECK TRIM SIDE BOARD RH Installation
10. INSTALL DECK TRIM SIDE BOARD LH (w/o Spare Tire) Installation
11. INSTALL ROPE HOOK Installation
12. INSTALL ROPE HOOK ASSEMBLY Installation
13. INSTALL BATTERY SERVICE HOLE COVER Installation
14. INSTALL BATTERY SERVICE HOLE COVER LH Installation
15. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Installation
16. ADJUST OBJECT RECOGNITION CAMERA Adjustments
