Installation








CRUISE CONTROL: OBJECT RECOGNITION CAMERA: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.





1. INSTALL OBJECT RECOGNITION CAMERA
(a) Attach the clip to the camera, and temporarily install the camera with the 3 bolts.

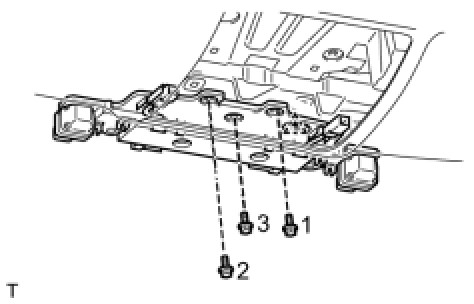

(b) Tighten the bolts in the order shown in the illustration.
(c) Connect the wire harness.
(d) Connect the camera connector.
2. INSTALL REAR INNER VIEW MIRROR ASSEMBLY Installation
3. INSTALL RAIN SENSOR COVER Installation
4. INSTALL MAP LIGHT ASSEMBLY Installation
5. ADJUST OBJECT RECOGNITION CAMERA Adjustments
