Installation








2UR-FSE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION





1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
(a) Install a new gasket to the sensor.

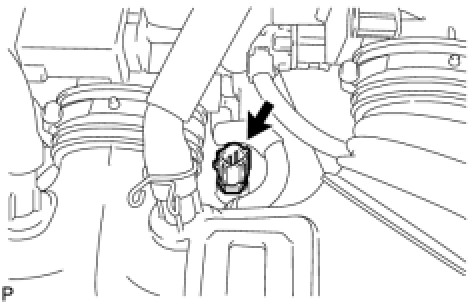

(b) Install the sensor.
Torque: 20 Nm (204 kgf-cm, 15ft-lbf)
(c) Connect the sensor connector.
2. ADD ENGINE COOLANT Service and Repair
3. INSPECT FOR COOLANT LEAK Testing and Inspection
4. INSTALL NO. 1 ENGINE UNDER COVER Installation
5. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH Installation
6. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH Installation
7. INSTALL NO. 1 AIR CLEANER INLET Installation
8. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation
9. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
