Installation

CELLULAR COMMUNICATION: BUS BUFFER ECU: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL BUS BUFFER ECU

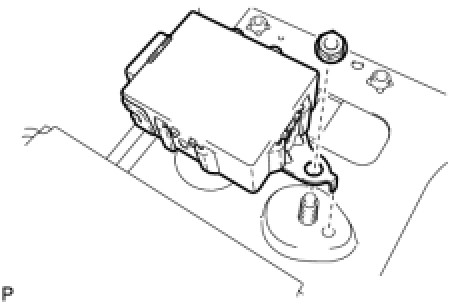

(a) Install the ECU with the nut as shown in the illustration.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
2. INSTALL TELEPHONE ECU ASSEMBLY WITH BRACKET Installation
3. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable some, systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

5. INSTALL ENGINE ROOM SIDE COVER LH Installation
6. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
