Installation
MIRROR (EXT): OUTER MIRROR SWITCH: INSTALLATIONINSTALLATION 1.
INSTALL OUTER MIRROR SWITCH ASSEMBLY
(a)
Install the mirror switch with the 3 screws.
2.

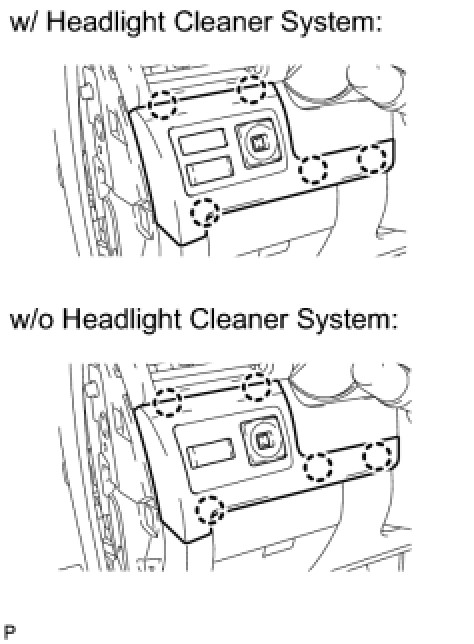

INSTALL NO. 1 SWITCH HOLE BASE
(a)
Connect the 2 connectors.
(b)
Attach the 5 claws to install the switch hole base.
3.
INSTALL INSTRUMENT SIDE PANEL LH
Installation
