Installation








BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: CRAWL SWITCH: INSTALLATION

INSTALLATION

1. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (CRAWL SWITCH)

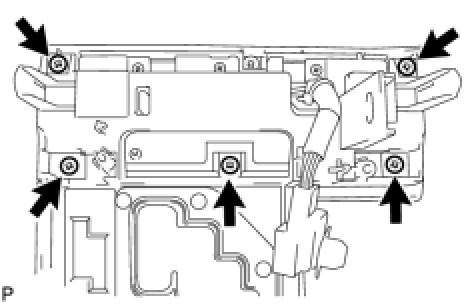

(a) Install the integration control and panel to the position indicator housing with the 5 screws.
(b) Connect the connector.
2. INSTALL LOWER POSITION INDICATOR HOUSING Reassembly
3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
4. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY Installation
5. INSTALL PARKING BRAKE HOLE COVER Installation
6. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation
7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
8. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH Installation
9. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Installation
10. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH Installation
11. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
