Installation








BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VSC OFF SWITCH: INSTALLATION

INSTALLATION

1. INSTALL VSC OFF SWITCH

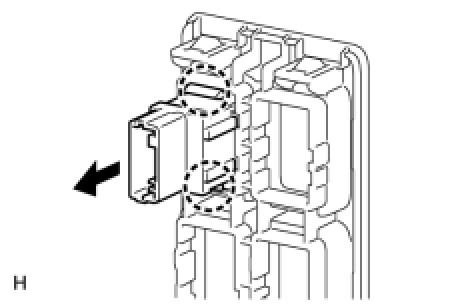

(a) Attach the 2 claws to install the VSC OFF switch to the lower instrument panel finish panel.
(b) Connect the VSC OFF switch connector.
2. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation
3. INSTALL COWL SIDE TRIM BOARD LH Installation
4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
5. INSTALL FRONT DOOR SCUFF PLATE LH Installation
