3UR-FE LUBRICATION: OIL LEVEL SENSOR: INSTALLATION

INSTALLATION

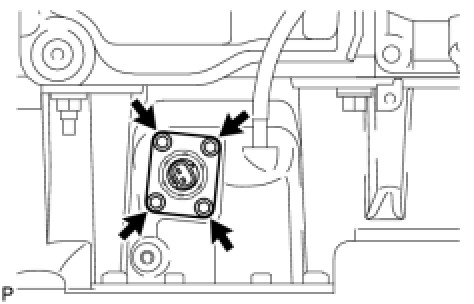

1. INSTALL ENGINE OIL LEVEL SENSOR





(a) Install a new gasket and the oil level sensor with the 4 bolts.
Torque: 7.0 Nm (71 kgf-cm, 62 in-lbf)
(b) Connect the oil level sensor connector.

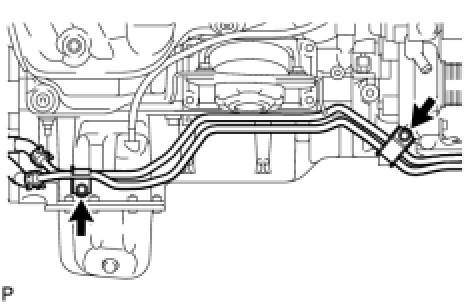

2. CONNECT OIL COOLER PIPE ASSEMBLY





(a) Connect the oil cooler pipe with the 2 bolts.
Torque: 14 Nm (143 kgf-cm, 10 ft-lbf)
3. ADD ENGINE OIL Replacement
4. INSPECT FOR OIL LEAK Replacement
5. INSPECT ENGINE OIL LEVEL Testing and Inspection
6. INSTALL NO. 2 ENGINE UNDER COVER Installation
7. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Installation
8. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation
9. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Installation
