Installation

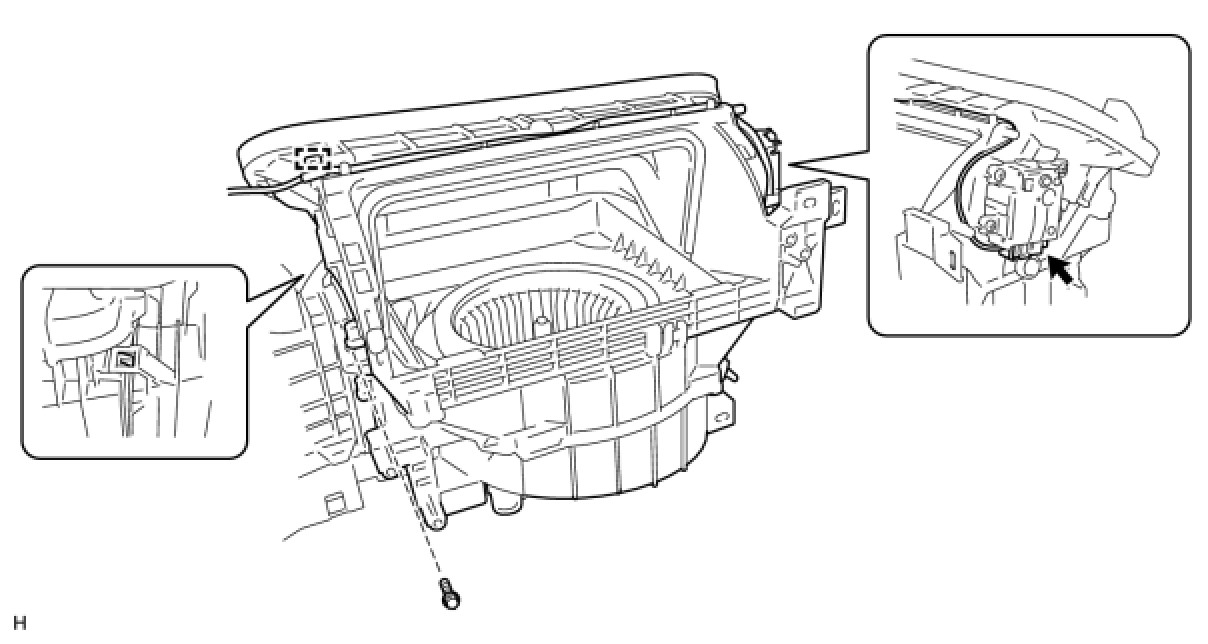

HEATING / AIR CONDITIONING: BLOWER UNIT: INSTALLATIONINSTALLATION 1.
INSTALL BLOWER ASSEMBLY
(a)
Attach the claw to install the blower unit.
(b)
Connect the connector and clamp.
(c)
Install the screw.
2.
INSTALL AIR CONDITIONING UNIT
(a)
Install the air conditioning unit
Installation.
