HEATING / AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Front Side): INSTALLATION

INSTALLATION

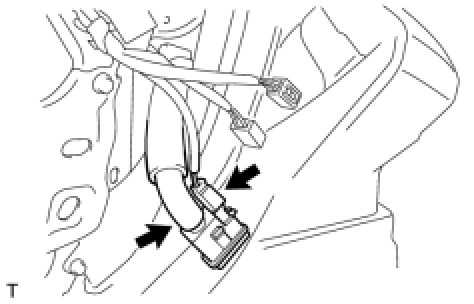

1. INSTALL ROOM TEMPERATURE SENSOR
(a) Install the sensor and connect the hose.
(b) Connect the connector.
2. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation
3. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
4. INSTALL NO. 1 SWITCH HOLE BASE Installation
5. INSTALL INSTRUMENT SIDE PANEL LH Installation
6. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH Installation
7. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSTALL ENGINE ROOM SIDE COVER LH Installation
10. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Check Mode Procedure.
