Installation








3UR-FE ENGINE MECHANICAL: DRIVE BELT: INSTALLATION

INSTALLATION

1. INSTALL FAN AND GENERATOR V BELT

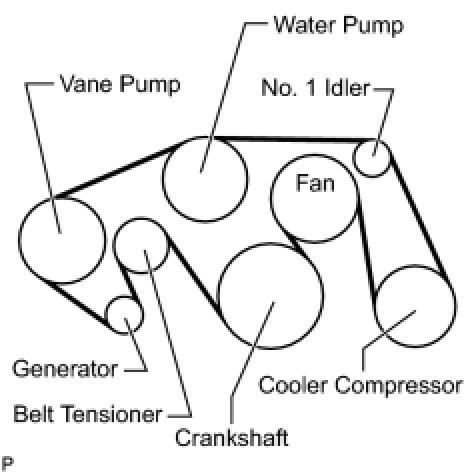

(a) Set the V belt onto every part.
(b) While turning the belt tensioner counterclockwise, remove the bar.
NOTE:
Make sure that the V belt is properly set to each pulley.





(c) After installing the belt, check that it fits properly in the ribbed grooves.
HINT: Make sure to check by hand that the belt has not slipped out of the grooves on the bottom of the pulley.

2. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Installation
3. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation
4. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Installation
5. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
6. INSTALL UPPER RADIATOR SUPPORT SEAL Installation
7. INSTALL ENGINE ROOM SIDE COVER LH Installation
8. INSTALL ENGINE ROOM SIDE COVER RH Installation
