Installation
PARK ASSIST / MONITORING: PARKING ASSIST ECU: INSTALLATIONINSTALLATION 1.
INSTALL PARKING ASSIST ECU
(a)

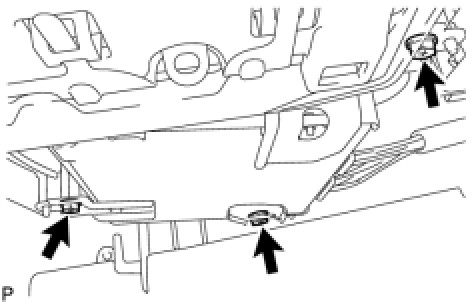

Install the parking assist ECU to the blower unit with the 3 screws.
NOTICE: -
Avoid any impact to the parking assist ECU.
-
Do not drop the ECU. If it is dropped, replace it with a new one.
(b)
Connect the connector.
2.
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
