Ignition Timing
Standard
Ignition Timing Engine idling at operating temperature, transmission in neutral, A/C switch and all accessories off
Using Techstream
8 to 12° BTDC
Using timing light that detects primary signals

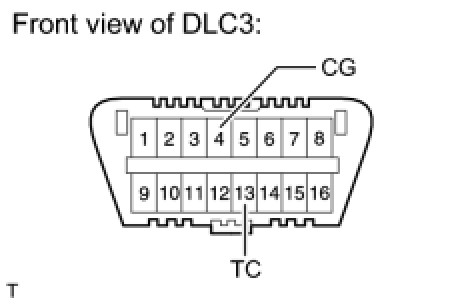

Connect DLC3 terminals 13 (TC) and 4 (CG) with SST 09843-18040
Inspect timing
8 to 12° BTDC
Remove SST from DLC3
Inspect timing
7 to 24° BTDC
