Removal

3UR-FE STARTING: STARTER: REMOVAL

REMOVAL

1. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH
(a) Remove the exhaust manifold RH Removal.
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
- W/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

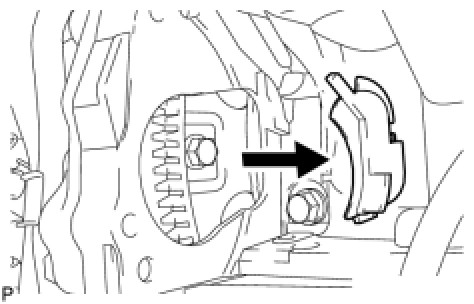

3. REMOVE STARTER COVER





(a) Remove the 3 bolts and starter cover.
4. REMOVE STARTER ASSEMBLY





(a) Disconnect the starter connector.
(b) Remove the nut and disconnect the starter wire.





(c) Remove the 2 bolts and starter.





(d) Remove the flywheel housing side cover.
