VARIABLE GEAR RATIO STEERING: STEERING CONTROL ECU: INSTALLATION

INSTALLATION





1. INSTALL STEERING CONTROL ECU
(a) Install the ECU to the junction block with the bolt and nut.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)

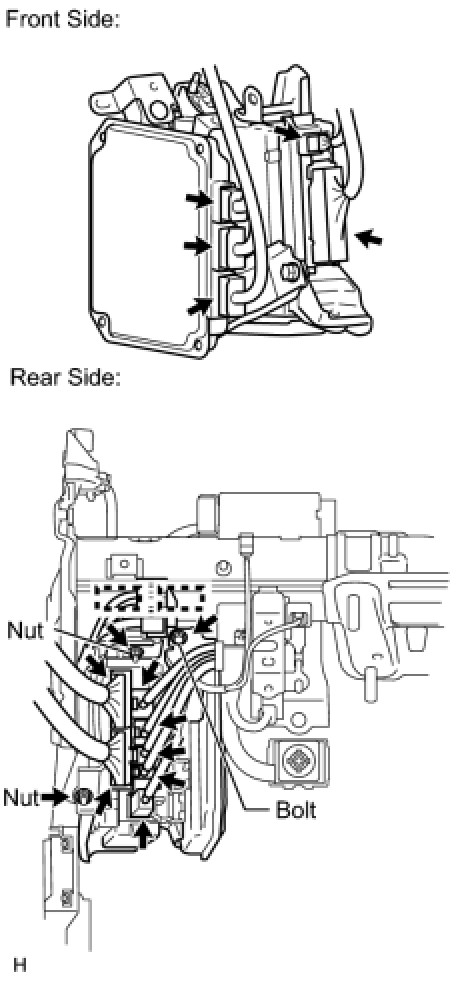

2. INSTALL STEERING CONTROL ECU WITH JUNCTION BLOCK
(a) Front side:
(1) Connect the 5 connectors.
(b) Rear side:
(1) Install the ECU with junction block with the bolt and 2 nuts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
(2) Attach the 2 clamps.
(3) Connect the 7 connectors.
3. INSTALL INSTRUMENT PANEL BOX ASSEMBLY Installation
4. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation
5. INSTALL NO. 1 SWITCH HOLE BASE Installation
6. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation
7. INSTALL COWL SIDE TRIM BOARD LH Installation
8. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
9. INSTALL FRONT DOOR SCUFF PLATE LH Installation
10. INSTALL INSTRUMENT SIDE PANEL LH Installation
11. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH Installation
12. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

14. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
