Installation
BRAKE CONTROL: FRONT SPEED SENSOR: INSTALLATION
INSTALLATION
1. INSTALL FRONT SPEED SENSOR

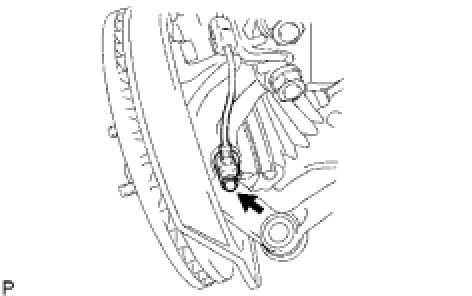

(a) Install the speed sensor front with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71in-lbf)
NOTICE:
Prevent foreign matter from attaching to the sensor tip.

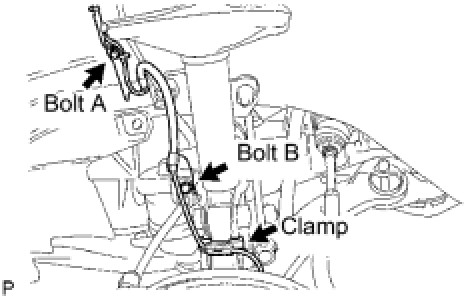

(b) Install the speed sensor front with the 2 bolts and the clamp.
Bolt A - Torque: 5.0 Nm (51 kgf-cm, 44in-lbf)
Bolt B - Torque: 29 Nm (296 kgf-cm, 21ft-lbf)
NOTICE:
Do not twist the sensor wire when installing the sensor.
(c) Connect the speed sensor connector.
2. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation
3. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76ft-lbf)
4. CHECK ABS SPEED SENSOR SIGNAL
HINT:
Test Mode Procedure.
