BRAKE CONTROL: REAR SPEED SENSOR (for 4WD): INSTALLATION

INSTALLATION

1. INSTALL SPEED SENSOR REAR LH

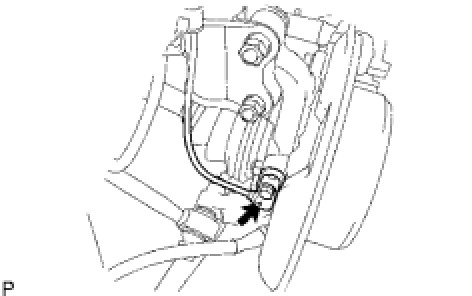

(a) Install the speed sensor rear with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71in-lbf)
NOTICE:
Prevent foreign matter from attaching to the sensor tip.

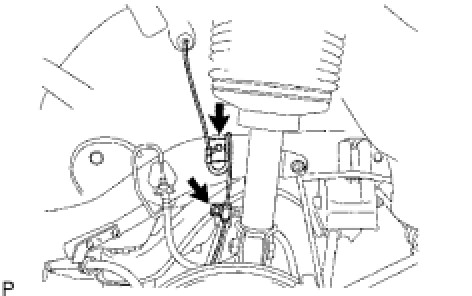

(b) Install the sensor harness clamps with the 2 bolts to the body and the shock absorber assembly.
Torque: 5.0 Nm (51 kgf-cm, 44in-lbf)
NOTICE:
Do not twist the sensor wire when installing the sensor.





(c) Push in the sensor wire harness with grommet.
NOTICE:
When grommet is set to body, pull the grommet. Do not pull sensor wire.

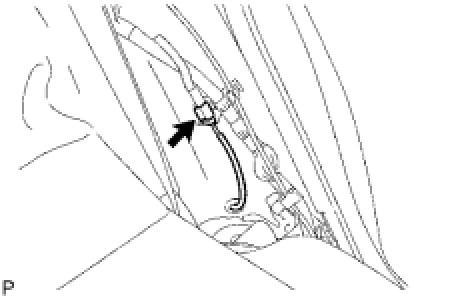

(d) Connect the speed sensor connector.
2. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76ft-lbf)
3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
4. INSTALL ROPE HOOK
5. INSTALL REAR SEAT SIDE COVER LH
6. INSTALL DECK SIDE TRIM COVER LH
7. INSTALL REAR FLOOR FINISH SIDE PLATE LH
8. INSTALL REAR FLOOR FINISH PLATE
9. INSTALL DECK SIDE TRIM BOX LH
10. INSTALL BACK DOOR WEATHERSTRIP
11. INSTALL DECK BOARD SUB-ASSEMBLY NO.3
12. INSTALL DECK BOARD SUB-ASSEMBLY NO.2
13. INSTALL DECK FLOOR BOX REAR
14. INSTALL DECK FLOOR BOX FRONT
15. INSTALL TONNEAU COVER ASSEMBLY
16. INSTALL REAR SEAT ASSEMBLY LH
HINT:
Installation

17. INSTALL DECK BOARD SUB-ASSEMBLY
18. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
19. INSTALL REAR DOOR SCUFF PLATE LH
20. CHECK ABS SPEED SENSOR SIGNAL
HINT:
Test Mode Procedure
