B2030

PRE-COLLISION: PRE-COLLISION SYSTEM: B2015,B2016,B2020,B2021,B2025-B2027,B2030-B2032,B2035,B2040,B2041,B2043,B2047: Open in Right Side Upper MOS

B2015 - Open in Right Side Upper MOS
B2016 - Open in Right Side Lower MOS
B2020 - Open in Left Side Upper MOS
B2021 - Open in Left Side Lower MOS
B2025 - Right Side Current Detection Circuit Malfunction Hi
B2026 - Right Side Current Detection Circuit Malfunction Lo
B2027 - Right Side Over-Circuit Malfunction
B2030 - Left Side Current Detection Circuit Malfunction Hi
B2031 - Left Side Current Detection Circuit Malfunction Lo
B2032 - Left Side Over-Circuit Malfunction
B2035 - Power Supply Relay Adherence Malfunction
B2040 - EEPROM Malfunction
B2041 - Fall of Raised Voltage
B2043 - Fall of B+ Voltage
B2047 - Seat Belt Control ECU Inner Circuit Malfunction

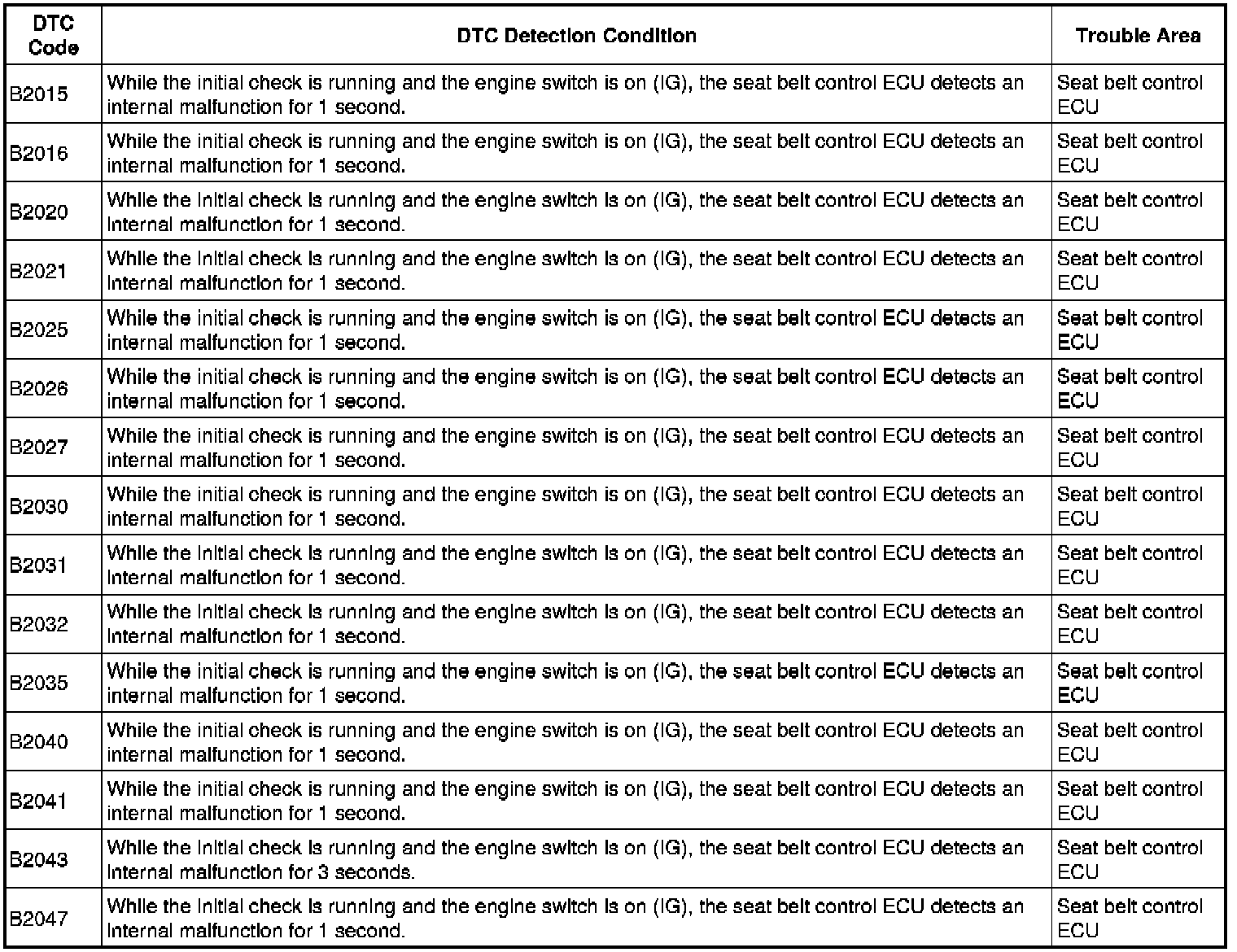

DESCRIPTION

The DTCs above are output during the seat belt control ECU self-diagnosis.

When DTC B2015 or B2016 is stored, DTCs B2026 and B2027 are not stored.

When DTC B2020 or B2021 is stored, DTCs B2031 and B2032 are not stored.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Pre-Collision System.

(b) Check for DTCs Pre-Collision System.

OK:

DTCs B2015 to B2047 are not output.

NG -- REPLACE SEAT BELT CONTROL ECU Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
