Wheel Alignment Standard

WHEEL ALIGNMENT STANDARD

a. FRONT WHEEL ALIGNMENT






1. Standard Vehicle Height (Unloaded Vehicle):

NOTICE: Before inspecting the wheel alignment, adjust the vehicle height to the specification.

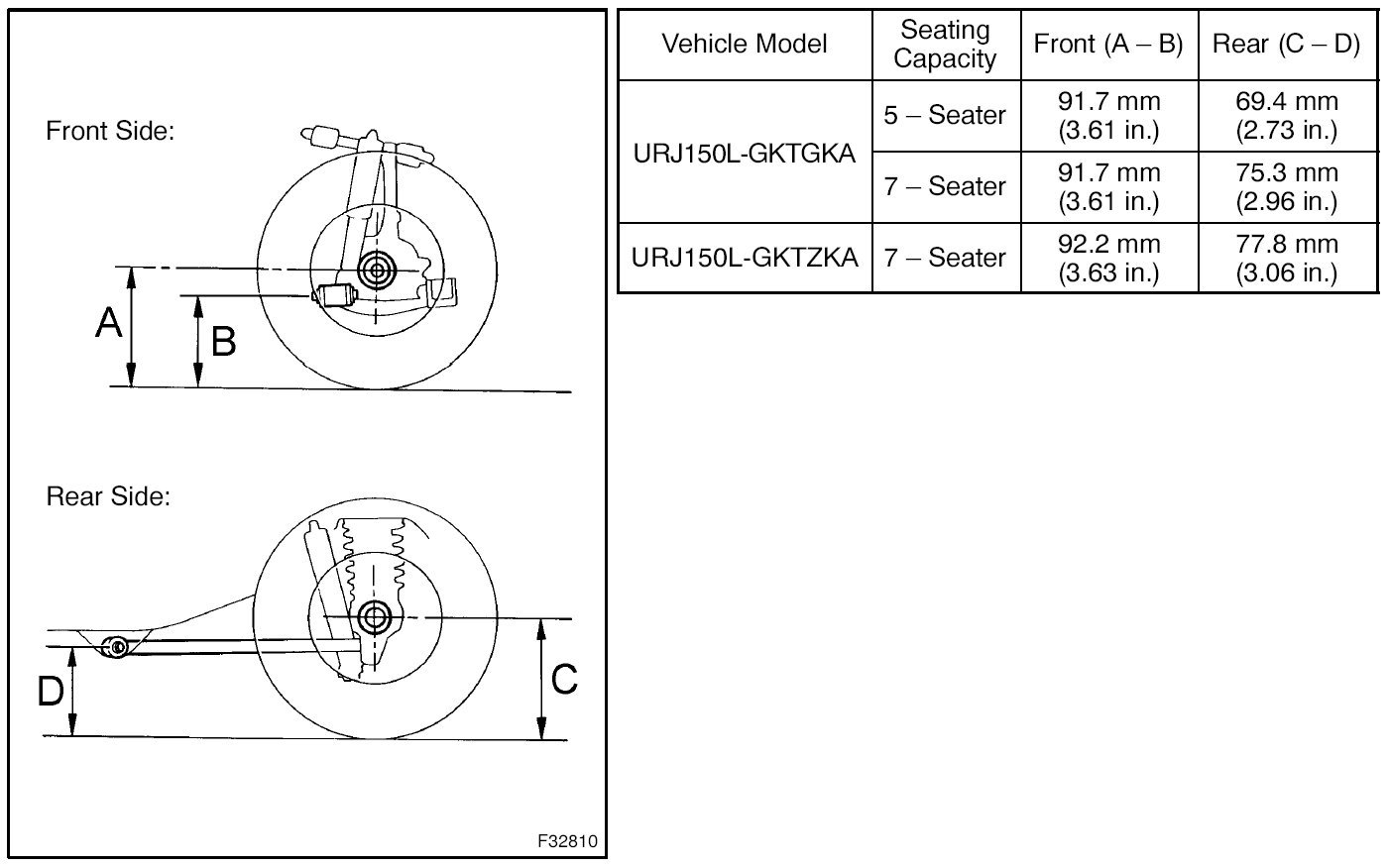

Measuring points:
A: Ground clearance of the center of the front wheel
B: Ground clearance of the center of the front adjusting cam bolt
C: Ground clearance of the center of the rear wheel
D: Ground clearance of the center of the rear lower control arm front side

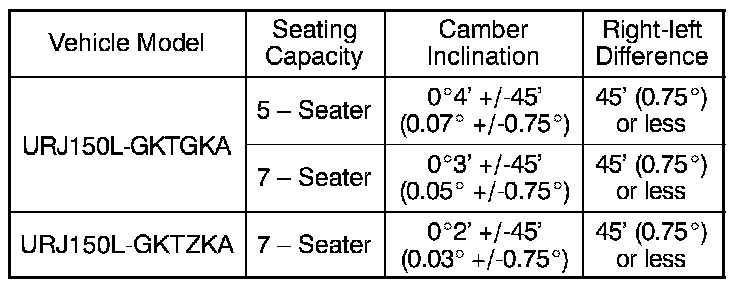

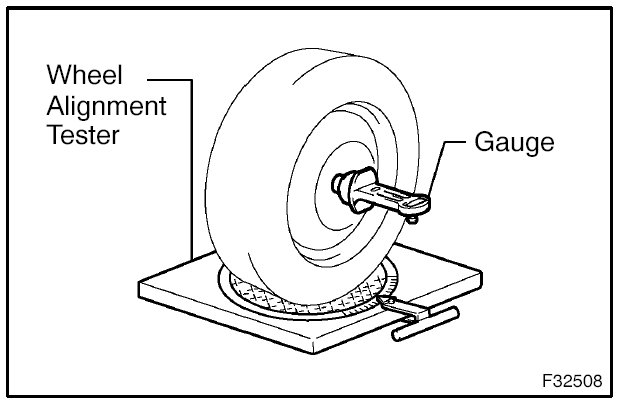

2. Standard Camber Inclination (Unloaded Vehicle):







3. Standard Caster Inclination (Unloaded Vehicle):

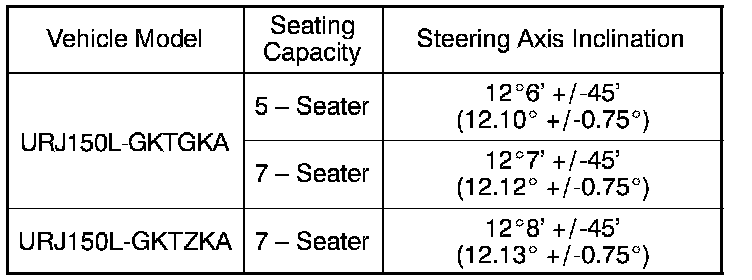

4. Standard Steering Axis Inclination (Unloaded Vehicle):

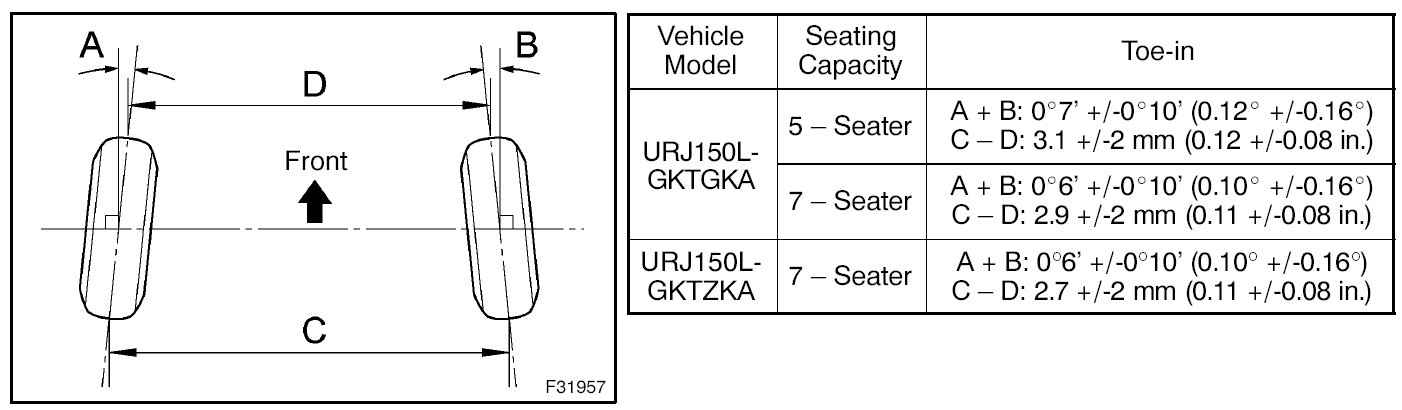

5. Standard Toe-in (Unloaded Vehicle):







6. Standard Wheel Turning Angle (Unloaded Vehicle):
