Headlamp Alignment Control Module: Testing and Inspection





LIGHTING (EXT): LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE

NOTICE:
* Initialize the AFS ECU (headlight swivel ECU assembly) after the vehicle height changes due to replacement of suspension components or after performing such operations as removal and reinstallation or replacement of the rear height control sensor sub-assembly RH.
* When the AFS ECU (headlight swivel ECU assembly) is replaced, initialization is also necessary.

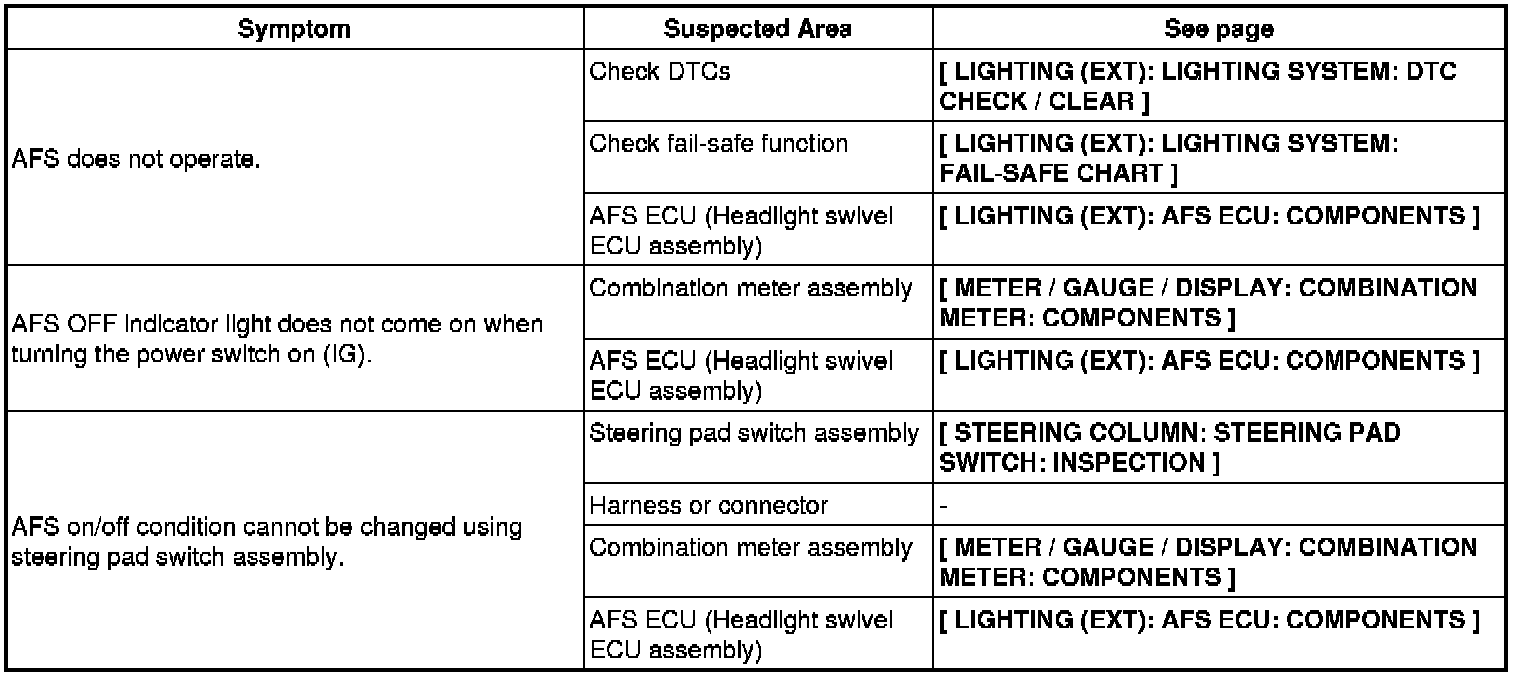

AFS





NOTICE:
Initialize the AFS ECU (headlight swivel ECU assembly) when the AFS ECU (headlight swivel ECU assembly) is replaced.
