Cylinder Head Assembly

Cylinder head bolts





Standard diameter 10.85 to 11.00 mm (0.4272 to 0.4331 in.)
Minimum diameter 10.70 mm (0.4213 in.)
Measurement point (distance from the seat) 100 mm (3.94 in.)
If there is any thread deformation, replace the cylinder head bolt with a new one

Tightening torque

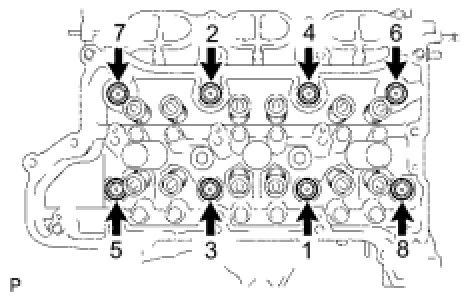

Right:

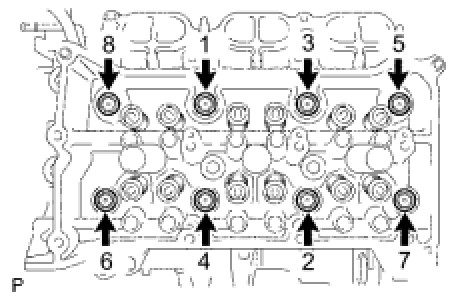

Left:

1st 36 Nm (367 kgf-cm, 27 ft lb)
2nd Turn 90°
3rd Turn 90°





Torque 30 Nm (306 kgf-cm, 22 ft-lbf)

Camshaft caps








Bolt A 28 Nm (286 kgf-cm, 21 ft-lbf)
Bolt B 16 Nm (163 kgf-cm, 12 ft-lbf)
