Cylinder Head Assembly

Cylinder head bolts





Standard diameter 10.85 to 11.00 mm (0.4272 to 0.4330 in.)
Minimum diameter 10.70 mm (0.4212 in.)
Measurement point (distance from the seat) 100 mm (3.94 in.)
If the diameter is less than the minimum, replace the cylinder head set bolt

Tightening torque

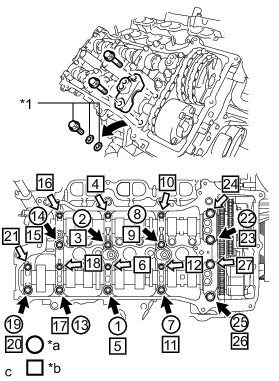

Right:

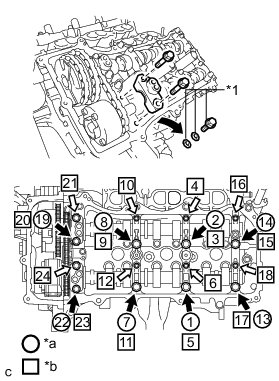

Left:

1st 36 Nm (367 kgf, 27 ft lb)
2nd Turn 90°
3rd Turn 90°

Camshaft caps








Bolt A 28 Nm (286 kgf-cm, 21 ft-lbf)
Bolt B 16 Nm (163 kgf-cm, 12 ft-lbf)

Intake manifold Specifications

Exhaust manifold Specifications

Camshaft gear Specifications
