Installation

AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT PADDLE SWITCH: INSTALLATION

1. INSTALL SHIFT PADDLE SWITCH

(a) Install the 2 shift paddle switches and 2 brackets with the 4 screws.

Torque : 1.7 Nm (17 kgf-cm, 15 in-lbf)

NOTICE:
Make sure that the brackets are securely installed.

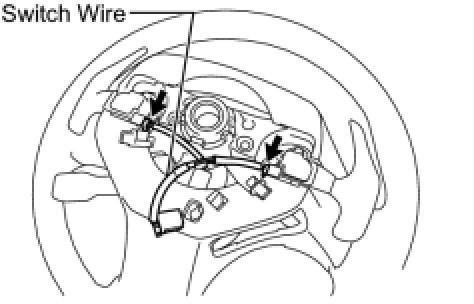

(b) Connect the 2 switch wire connectors to the shift paddle switches.

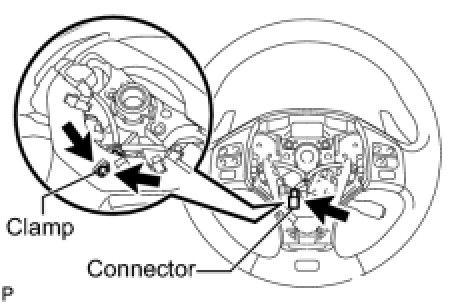

(d) Install the clamp to the steering wheel assembly.

2. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD

3. ADJUST SPIRAL CABLE Installation

4. INSTALL STEERING WHEEL ASSEMBLY Installation

5. INSTALL STEERING PAD Installation

6. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

7. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

8. INSPECT STEERING WHEEL CENTER POINT

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.

10. INSPECT STEERING PAD Installation

11. INSPECT SRS WARNING LIGHT

Diagnosis System.
