Removal

2UR-GSE ENGINE CONTROL: KNOCK SENSOR: REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE

(a) Discharge fuel system pressure Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.

3. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

(a) Remove the intake air surge tank assembly Removal.

4. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal

5. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY LH Removal

6. REMOVE NO. 4 FUEL PIPE SUB-ASSEMBLY Removal

7. REMOVE CASE SEPARATOR

(a) Disconnect the fuel pressure sensor connector.





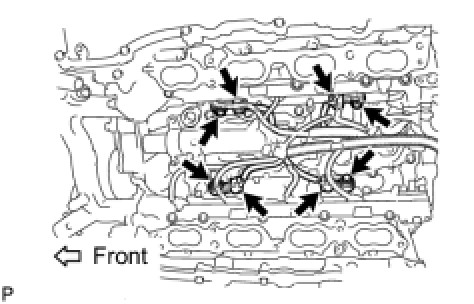

(b) Remove the 4 bolts and case separator.





8. REMOVE KNOCK CONTROL SENSOR





(a) Disconnect the 4 knock control sensor connectors.

(b) Remove the 4 bolts and 4 knock control sensors.
