Crankshaft Main Bearing

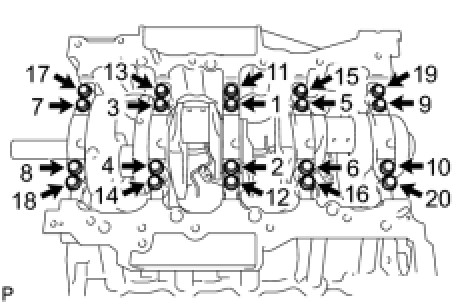

Crankshaft main bearingStep 1
Inside position
61 Nm (622 kgf-cm, 45 ft-lbf)
Outside position
27 Nm (275 kgf-cm, 20 ft-lbf)
Step 2
90°
Torque
45 Nm (459 kgf-cm, 33 ft-lbf)
Oil clearance
No. 1 and No. 5 journal
Standard
0.017 to 0.030 mm (0.0007 to 0.0012 in.)
Maximum
0.050 mm (0.0020 in.)
Other journal
Standard
0.024 to 0.037 mm (0.0009 to 0.0015 in.)
Maximum
0.060 mm (0.0024 in.)
