Installation

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VSC OFF SWITCH: INSTALLATION

1. INSTALL VSC OFF SWITCH

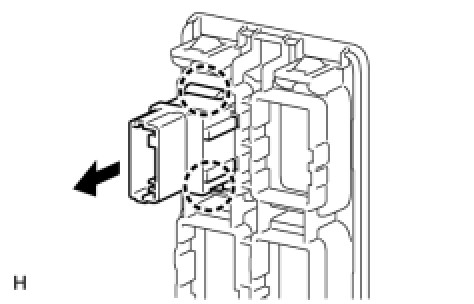

(a) Attach the 2 claws to install the VSC OFF switch to the lower instrument panel finish panel.

(b) Connect the VSC OFF switch connector.

2. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation

3. INSTALL COWL SIDE TRIM BOARD LH Installation

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL FRONT DOOR SCUFF PLATE LH Installation
