Installation

HEATING / AIR CONDITIONING: AIR CONDITIONING PRESSURE SENSOR: INSTALLATION

1. INSTALL AIR CONDITIONER PRESSURE SENSOR





(a) Sufficiently apply compressor oil to a new O-ring and the fitting surface of the pressure sensor.

Compressor oil:

ND-OIL 8 or equivalent

(b) Install the O-ring to the pressure sensor.

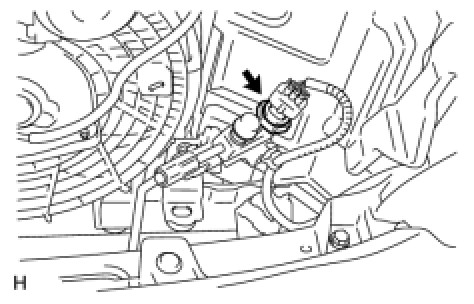

(c) Install the pressure sensor.

Torque : 10.8 Nm (110 kgf-cm, 8 ft-lbf)

(d) Connect the connector.

2. CHARGE REFRIGERANT Service and Repair

3. WARM UP ENGINE Service and Repair

4. CHECK FOR REFRIGERANT GAS LEAK Service and Repair

5. INSTALL FRONT BUMPER COVER

(a) Install the front bumper cover Installation.
