Removal





DOOR LOCK: TRANSMITTER BATTERY: REMOVAL

NOTICE:
Take extra care when handling these precision electronic components.

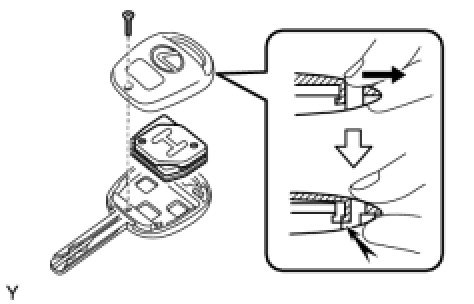

1. REMOVE TRANSMITTER HOUSING COVER





(a) Using a screwdriver, remove the screw.

(b) Push the cover with your finger as shown in the illustration so a gap appears. Then, pry out the cover using that gap.

NOTICE:
Do not forcibly pry up the cover.

2. REMOVE DOOR CONTROL TRANSMITTER ASSEMBLY

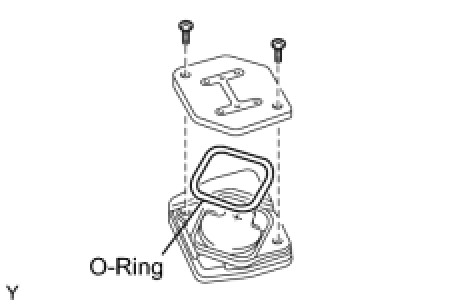

3. REMOVE TRANSMITTER BATTERY





(a) Using a screwdriver, remove the 2 screws and cover.

(b) Remove the transmitter battery (lithium battery).

NOTICE:
* Do not push the terminals with your finger.
* Do not forcibly pry up the battery (lithium battery). The terminals may become damaged.
* Do not touch the battery with wet hands. Water may cause rust.
* Do not touch or move any components inside the transmitter, as it may cease to work.
