BRAKE CONTROL: YAW RATE AND ACCELERATION SENSOR: INSTALLATION

1. INSTALL YAW RATE AND ACCELERATION SENSOR

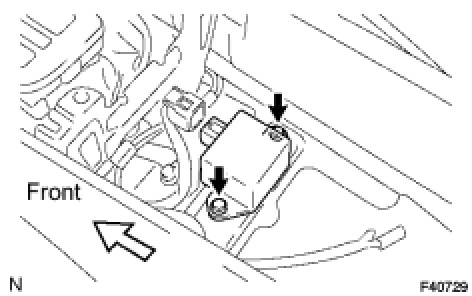

(a) Install the sensor with the 2 bolts.

Torque : 13 Nm (130 kgf-cm, 9 ft-lbf)

(b) Connect the sensor connector.

2. INSTALL CONSOLE BOX ASSEMBLY Installation

3. INSTALL NO. 3 BOX PANEL Installation

4. INSTALL CONSOLE BOX CARPET

5. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

6. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

7. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER

8. INSTALL AIR CONDITIONER CONTROL ASSEMBLY Installation

9. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

10. INSTALL REAR CONSOLE UPPER PANEL GARNISH Installation

11. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

12. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation

13. INSTALL DOOR SCUFF PLATE ASSEMBLY LH Installation

14. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION

(a) Perform the yaw rate sensor zero point calibration Programming and Relearning.

15. CHECK VSC SENSOR SIGNAL

(a) Check the VSC sensor signal Test Mode Procedure.
