Disassembly

3UZ-FE INTAKE: INTAKE MANIFOLD: DISASSEMBLY

1. REMOVE VACUUM CONTROL VALVE SET

(a) Disconnect the vacuum hose from the intake air control valve actuator.





(b) Disconnect the VSV connector (for ACIS).

(c) Disconnect the 2 vacuum hoses from the manifold and clamp.

(d) Remove the bolt and harness clamp.

(e) Remove the 2 nuts and vacuum control valve set.

2. REMOVE INTAKE AIR CONTROL VALVE ACTUATOR

(a) Remove the 3 nuts, actuator and gasket.

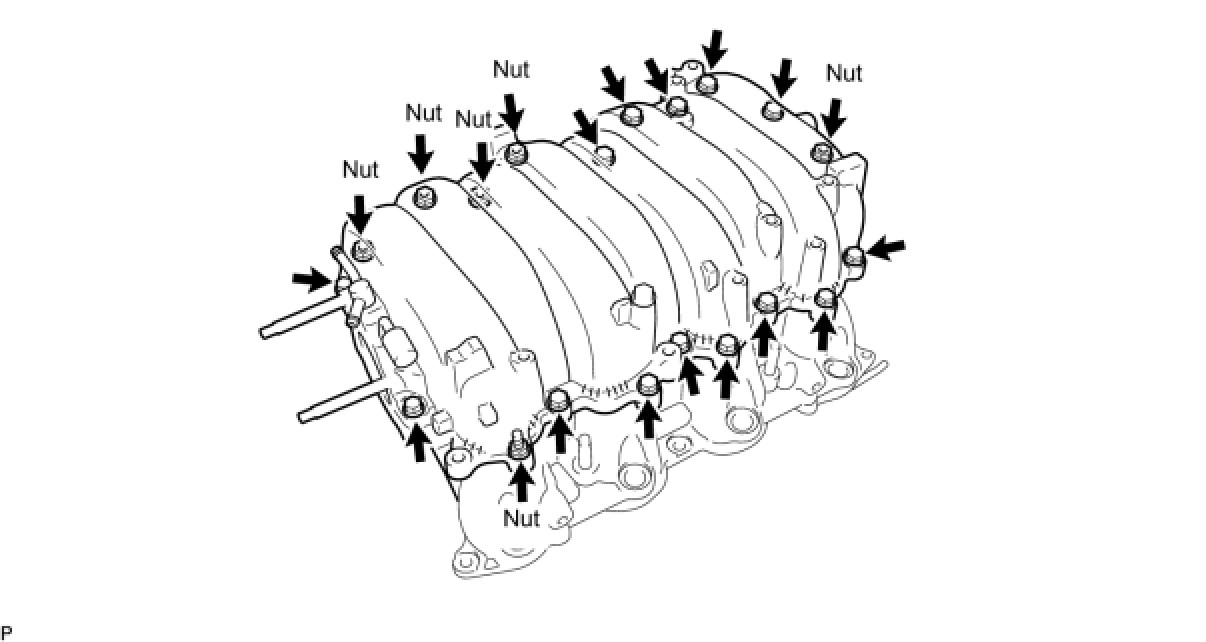

3. REMOVE INTAKE MANIFOLD SUB-ASSEMBLY UPPER

(a) Remove the 14 bolts, 6 nuts, manifold upper and gasket from the manifold lower.





4. REMOVE INTAKE AIR CONTROL VALVE ASSEMBLY

(a) Remove the 6 bolts and control valve.





5. REMOVE VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)

(a) Remove the screw and VSV from the vacuum tank.
