Back-Up Power Source Circuit





AIR CONDITIONING: AIR CONDITIONING SYSTEM: Back-up Power Source Circuit
- Back-up Power Source Circuit

DESCRIPTION

This circuit supplies a back-up power source for the A/C amplifier. Power is supplied even if the ignition switch is OFF and is used for diagnostic trouble code memory, etc.

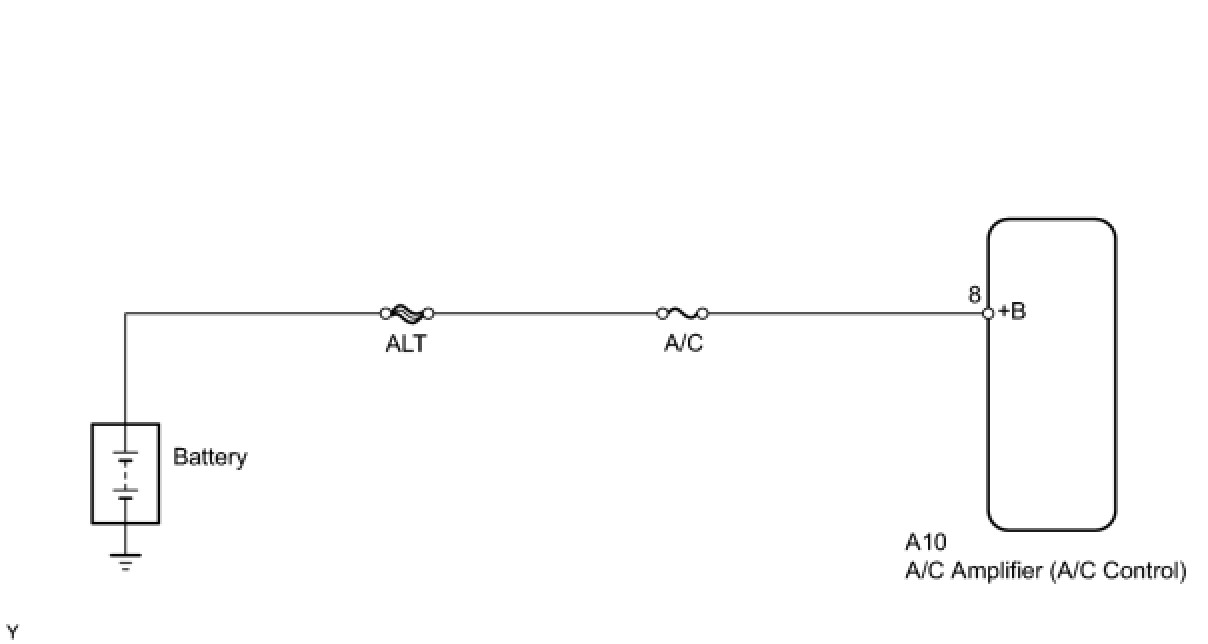

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (A/C)

(a) Remove the A/C fuse from the passenger side junction block.

(b) Measure the resistance of the fuse.

Standard resistance:

Below 1 Ohms

NG -- REPLACE FUSE
OK -- Continue to next step.

2. CHECK WIRE HARNESS (A/C AMPLIFIER - BATTERY)

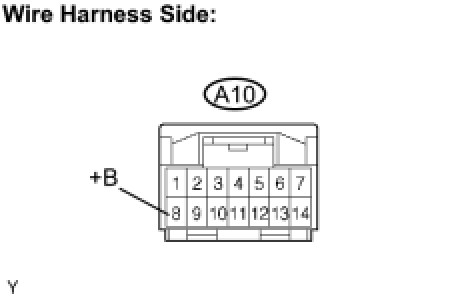

(a) Disconnect the A10 amplifier connector.

(b) Measure the voltage of the wire harness side connector.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
