Removal

3UZ-FE EMISSION CONTROL: HEATED OXYGEN SENSOR (for Sensor 1): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ENGINE UNDER COVER

(a) Remove the 18 bolts, 5 clips and under cover.

3. REMOVE NO. 2 ENGINE UNDER COVER

(a) Remove the 5 bolts and under cover.

4. REMOVE HEATED OXYGEN SENSOR (for Bank 1)

(a) Disconnect the sensor connector.

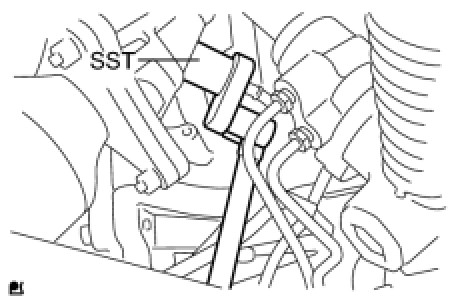

(b) Using SST, remove the sensor.

SST : 09224-00010

5. REMOVE HEATED OXYGEN SENSOR (for Bank 2)

(a) Disconnect the sensor clamp.

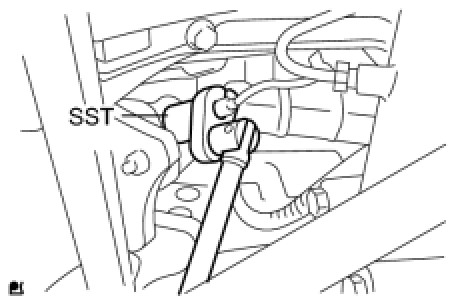

(b) Disconnect the sensor connector.
