Windshield Washer Motor: Testing and Inspection
WIPER AND WASHER: WASHER MOTOR: INSPECTION 1.
INSPECT
WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

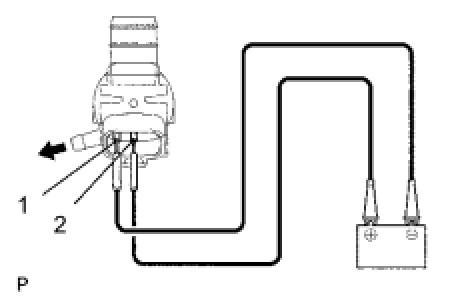

(a)
Apply battery voltage to the
windshield washer motor connector and check the operation of the windshield washer motor assembly.
OK: (a)
If the result is not as specified, replace the motor and pump assembly.
