Part 3

2ZR-FXE ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST (Continued)

13. Check Mode

Check Mode

14. Test Result

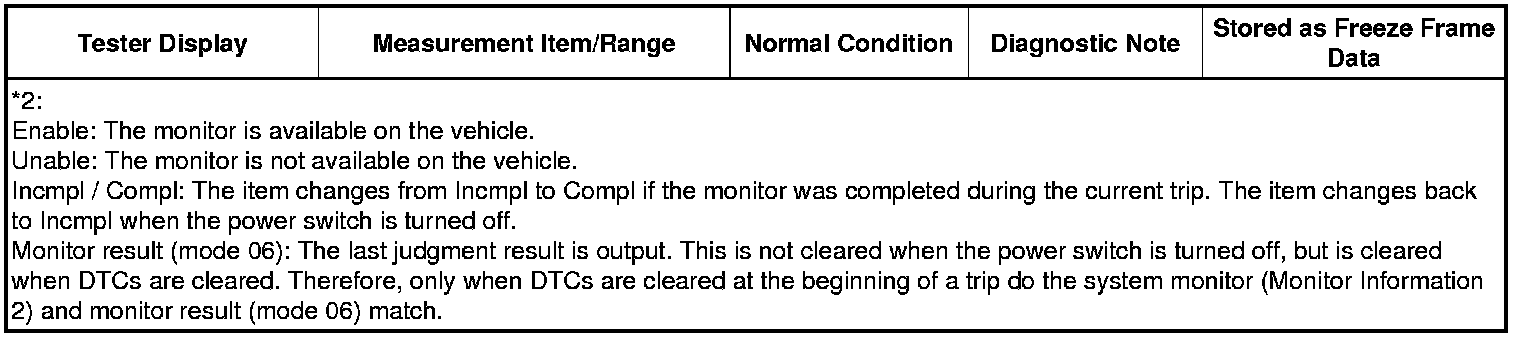

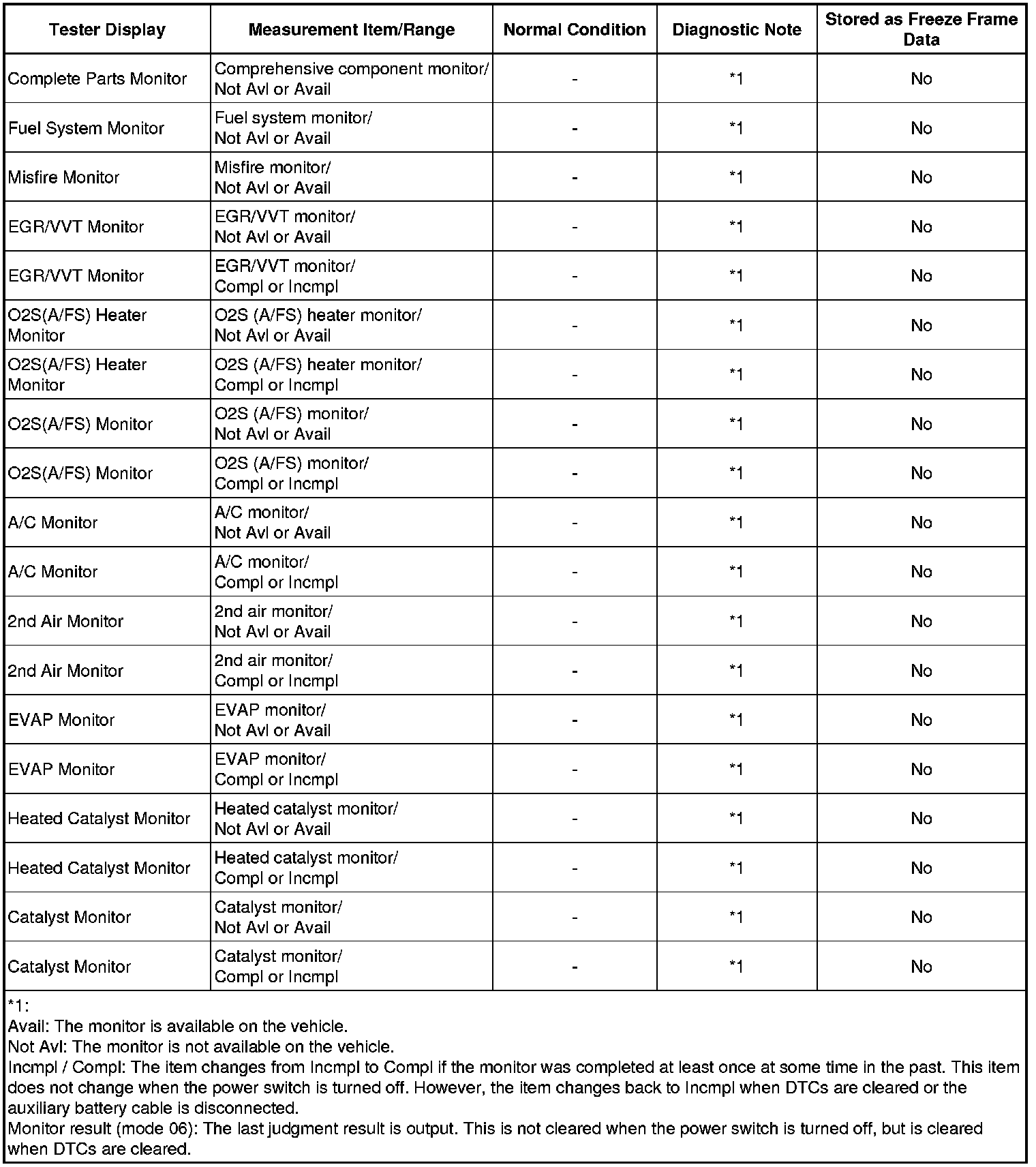

Monitor Information 1

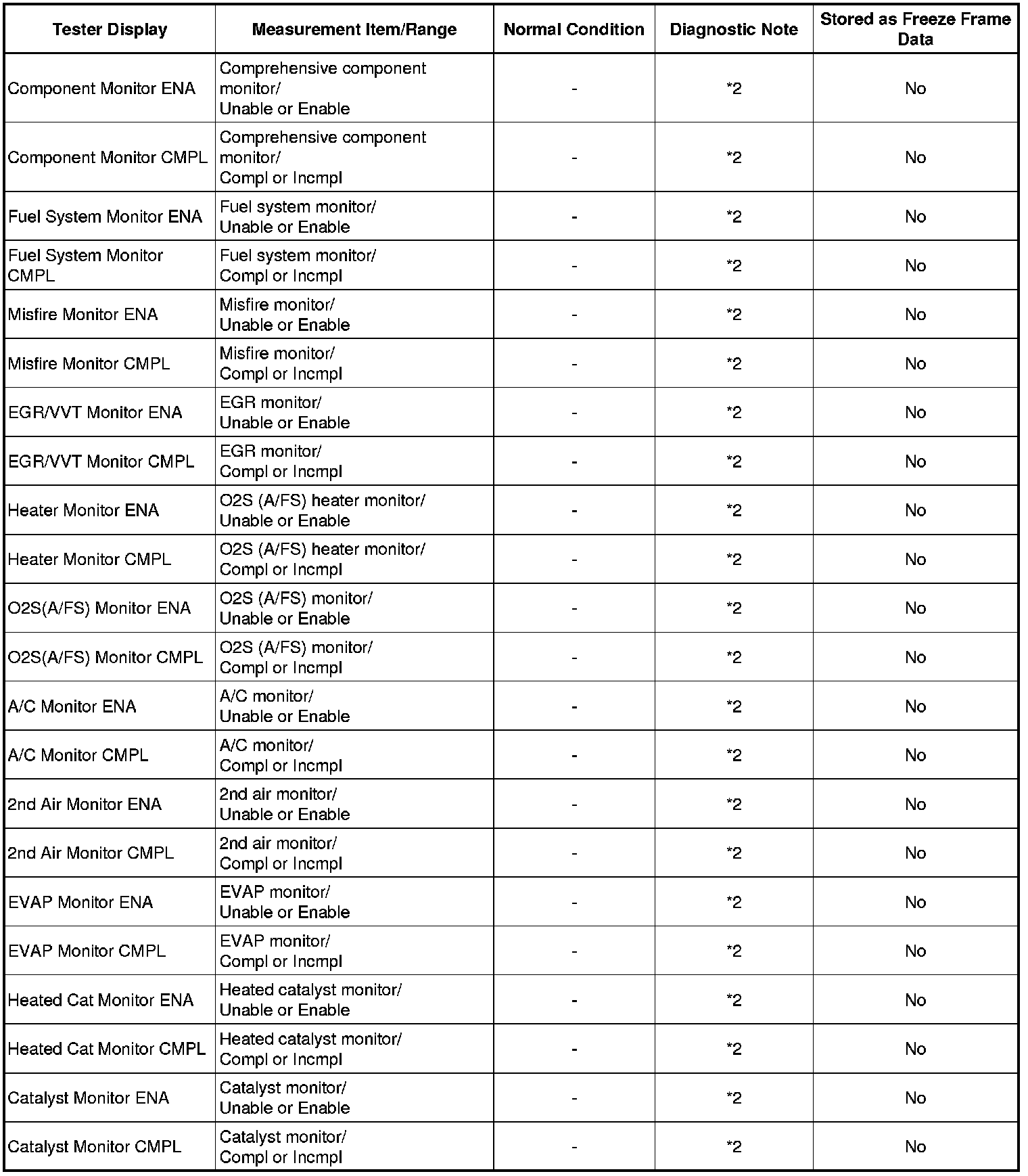

Monitor Information 2

15. Various Vehicle Conditions 3

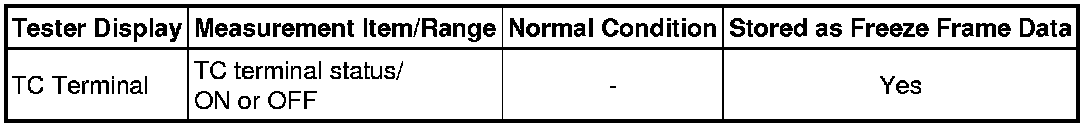

TC Terminal

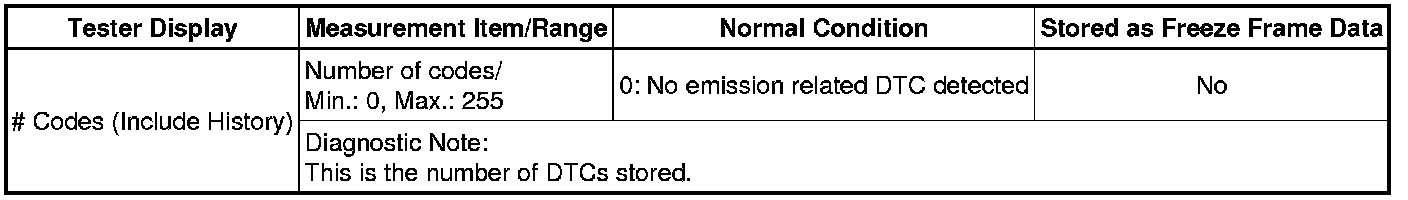

# Codes (Include History)

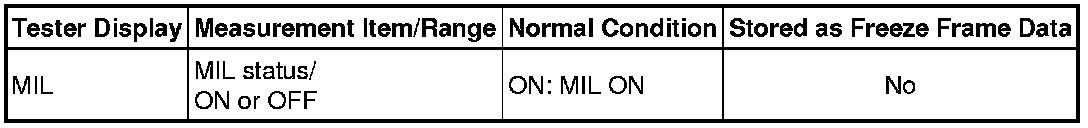

MIL

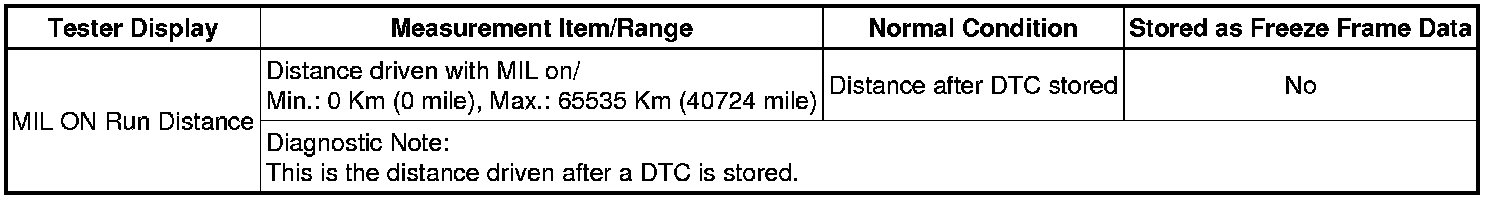

MIL ON Run Distance

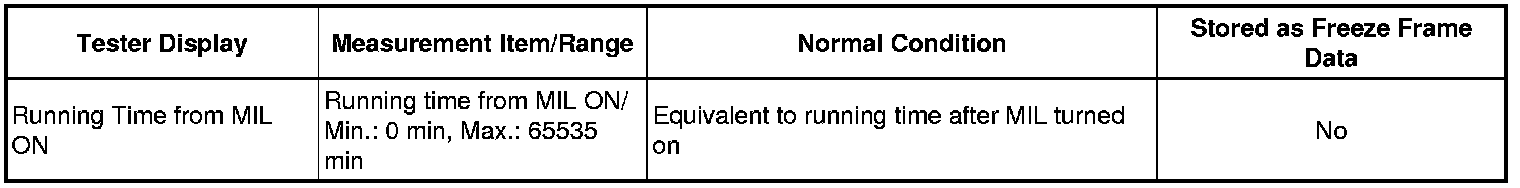

Running Time from MIL ON

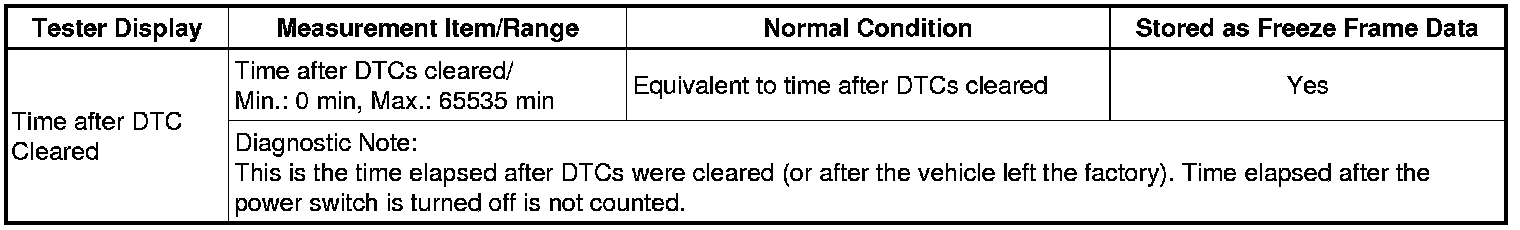

Time after DTC Cleared

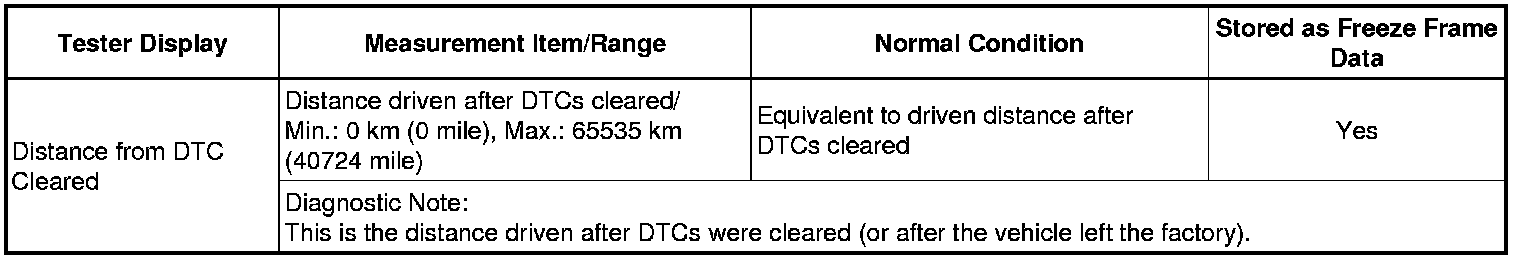

Distance from DTC Cleared

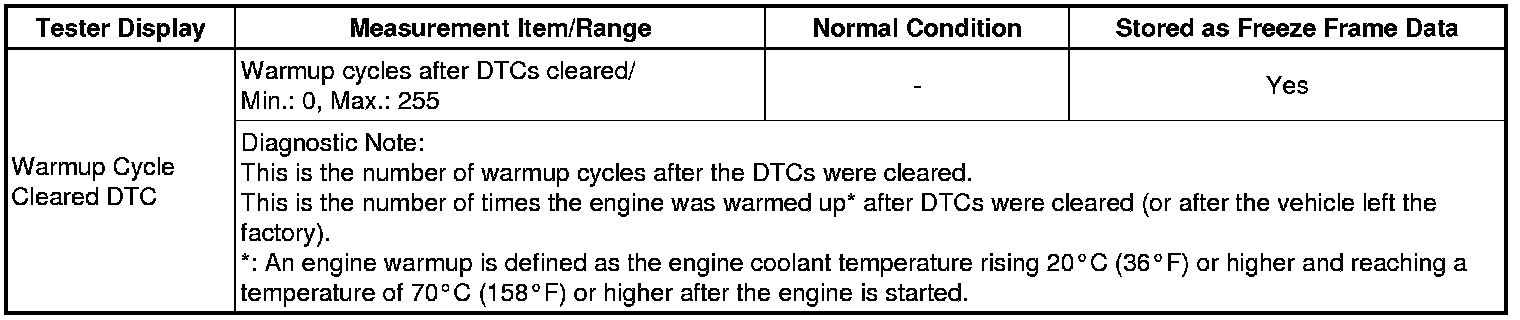

Warm-up Cycle Cleared DTC

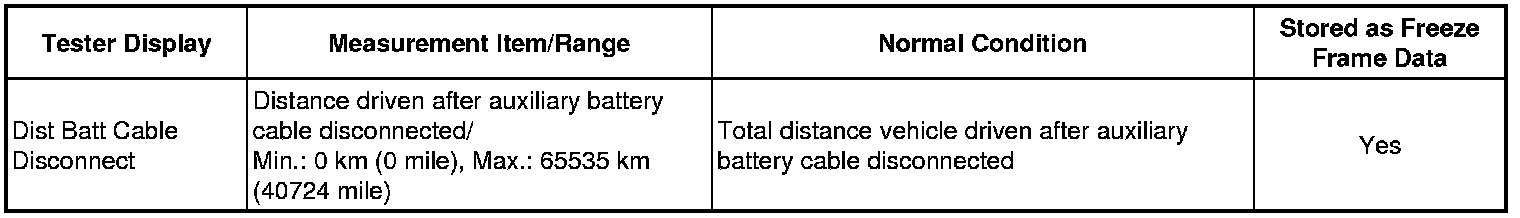

Dist Batt Cable Disconnect

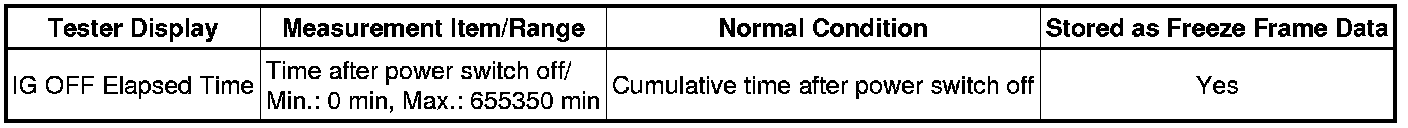

IG OFF Elapsed Time

OBD Requirements

Number of Emission DTC

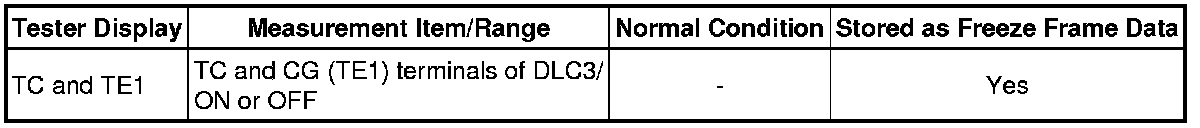

TC and TE1

16. Misfire

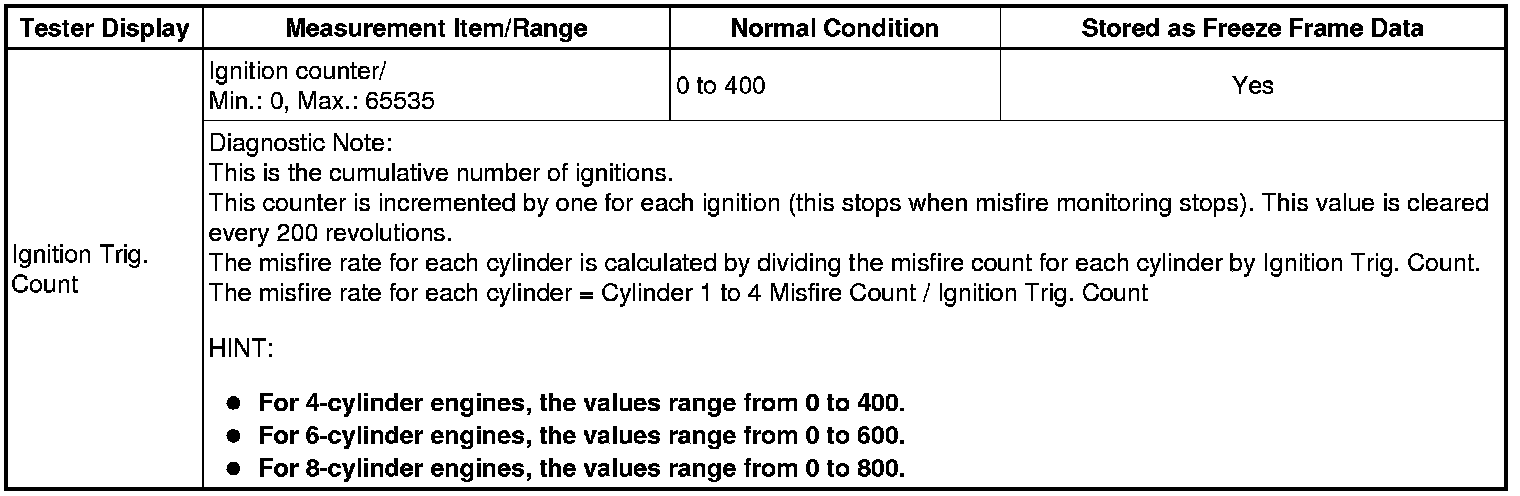

Ignition Trig. Count

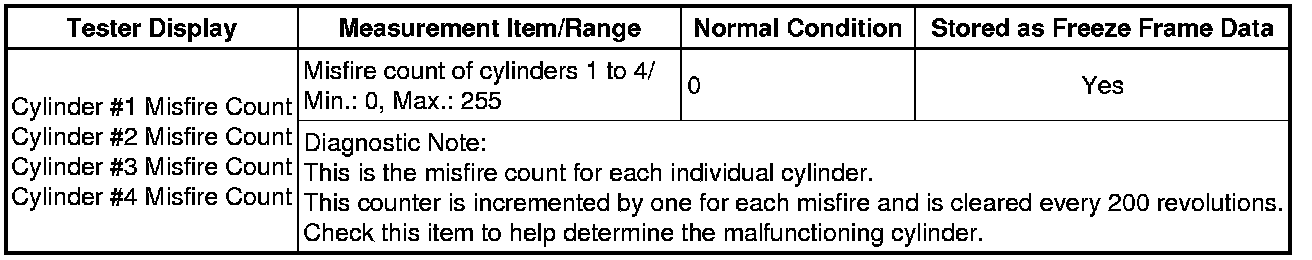

Cylinder #1 Misfire Count to Cylinder #4 Misfire Count

All Cylinders Misfire Count

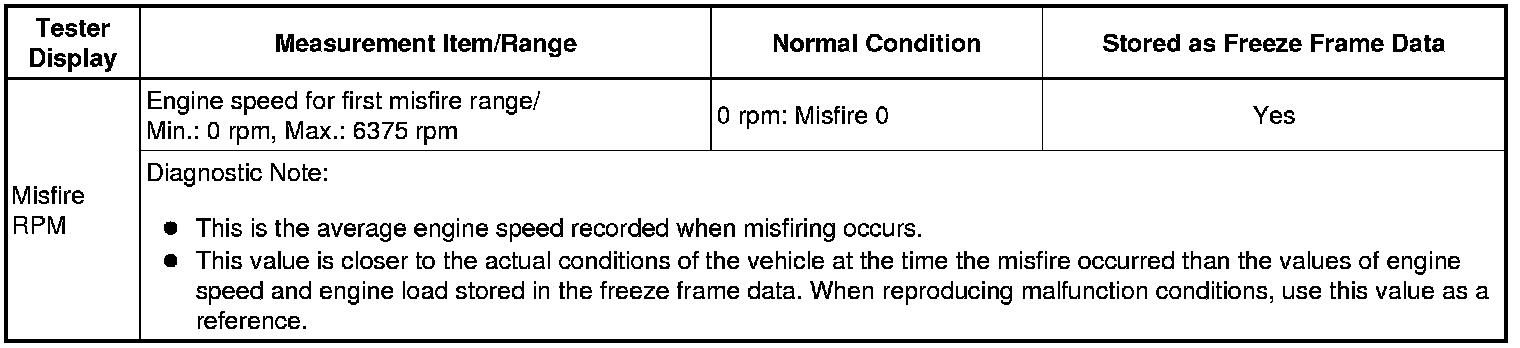

Misfire RPM

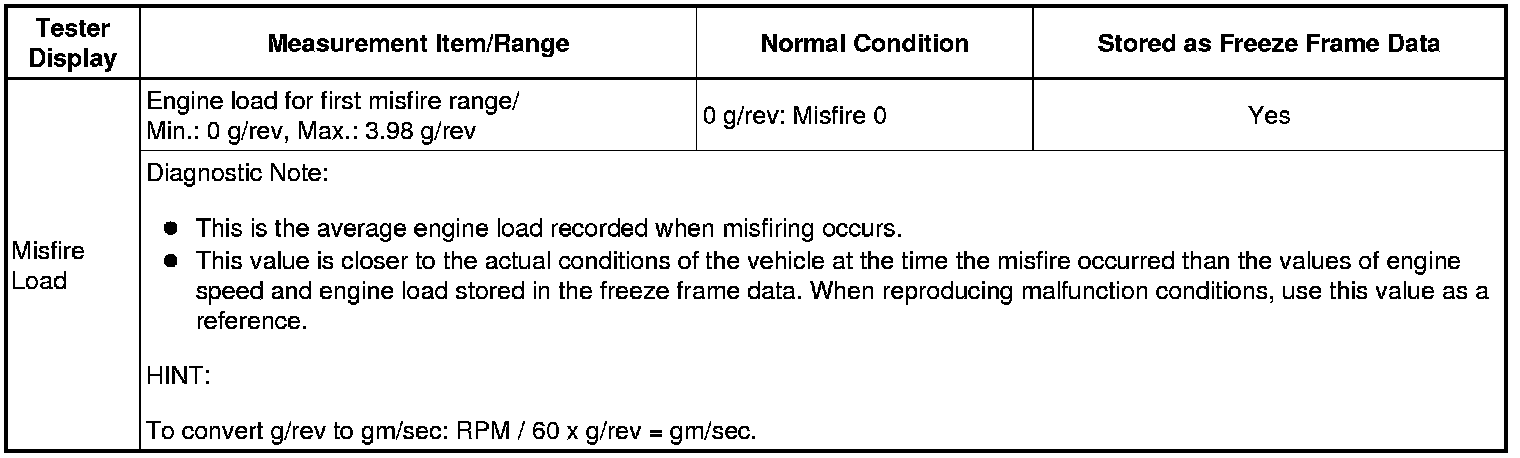

Misfire Load

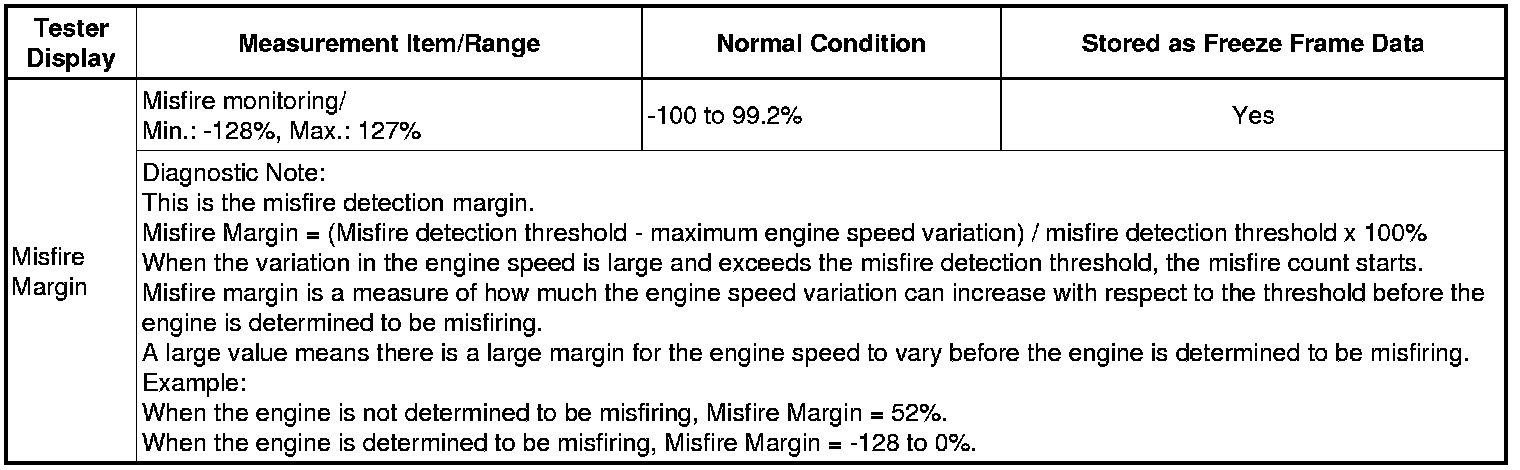

Misfire Margin
