Crankshaft Main Bearing
Crankshaft main bearingStandard oil clearance
0.026 to 0.047 mm (0.0010 to 0.0019 in.)
Maximum oil clearance
0.050 mm (0.0020 in.)
Journal bearings

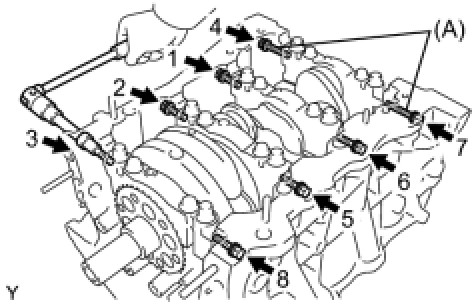

Main bearing cap bolts
Step 1
61 Nm (622 kgf-cm, 45 ft-lbf)
Step 2
90°
Torque
52 Nm (525 kgf-cm, 38 ft-lbf)
