Cylinder Head Assembly

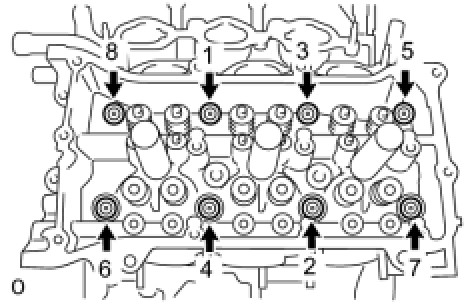

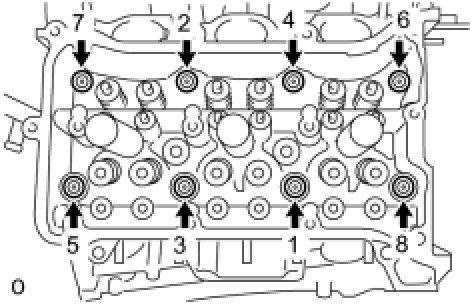

Cylinder head bolts








Step 1 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2 90°
Step 3 another 90°

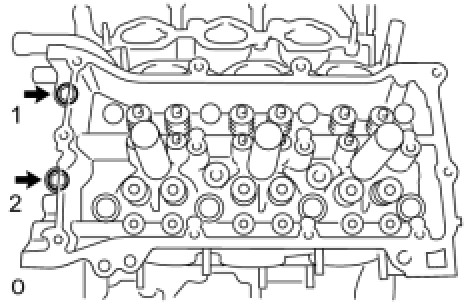

Torque 30 Nm (306 kgf-cm, 22 ft-lbf)










Bolt re-use





Standard outside diameter 10.85 to 11.00 mm (0.4272 to 0.4331 in.)
Minimum outside diameter 10.70 mm (0.4213 in.)
Measuring Point 103 mm (4.06 in.)

If the diameter is less than the minimum, replace the cylinder head bolt

Standard warpage





Maximum warpage

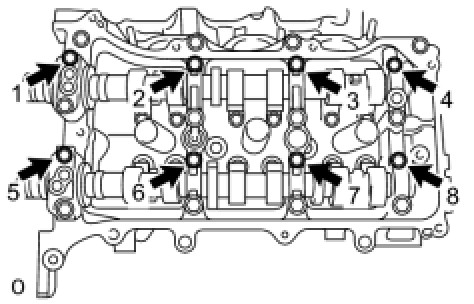

Camshaft housing 28 Nm (286 kgf-cm, 21 ft-lbf)

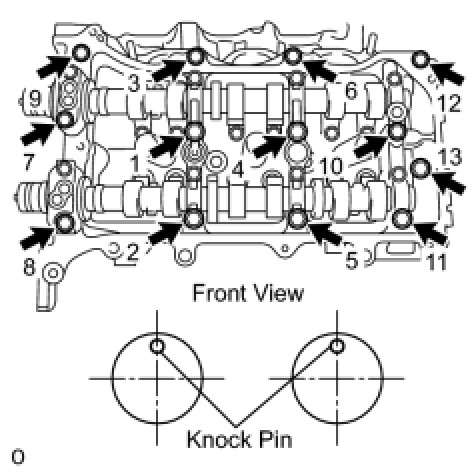

RH:

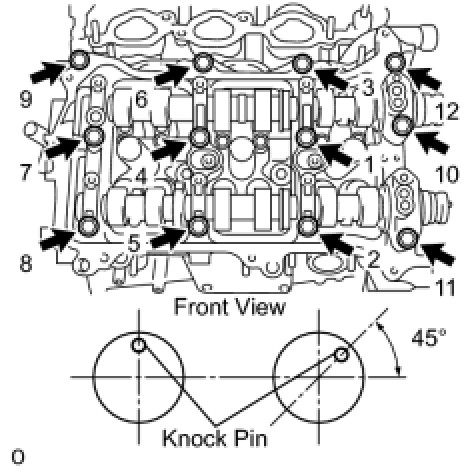

LH:

Camshaft gear Specifications

Intake manifold Specifications

Exhaust manifold Specifications
