Left Hand Front Repair Procedure

1. Remove front door armrest base panel assembly.

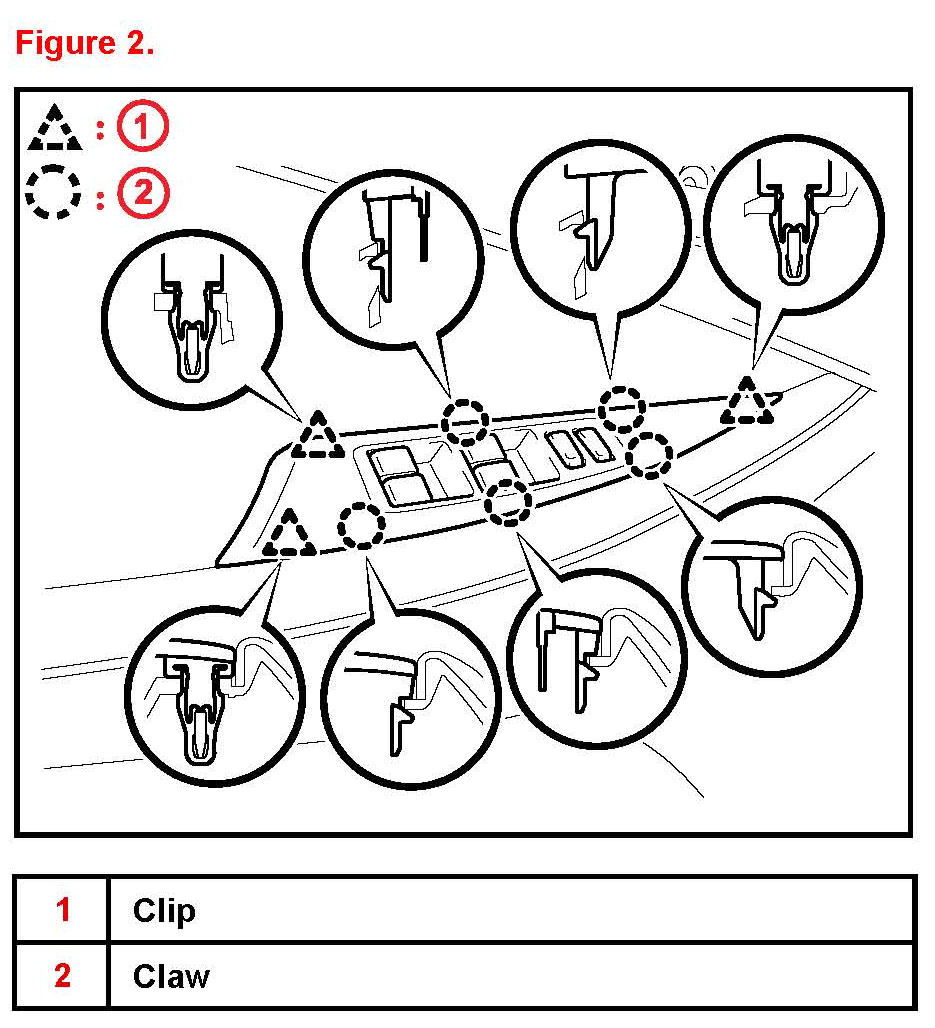

A. Using a pry tool disengage the 5 claws and 3 clips disconnect the connector and remove the front door switch base assembly.

2. Remove the 2 pieces of felt from the switch base.

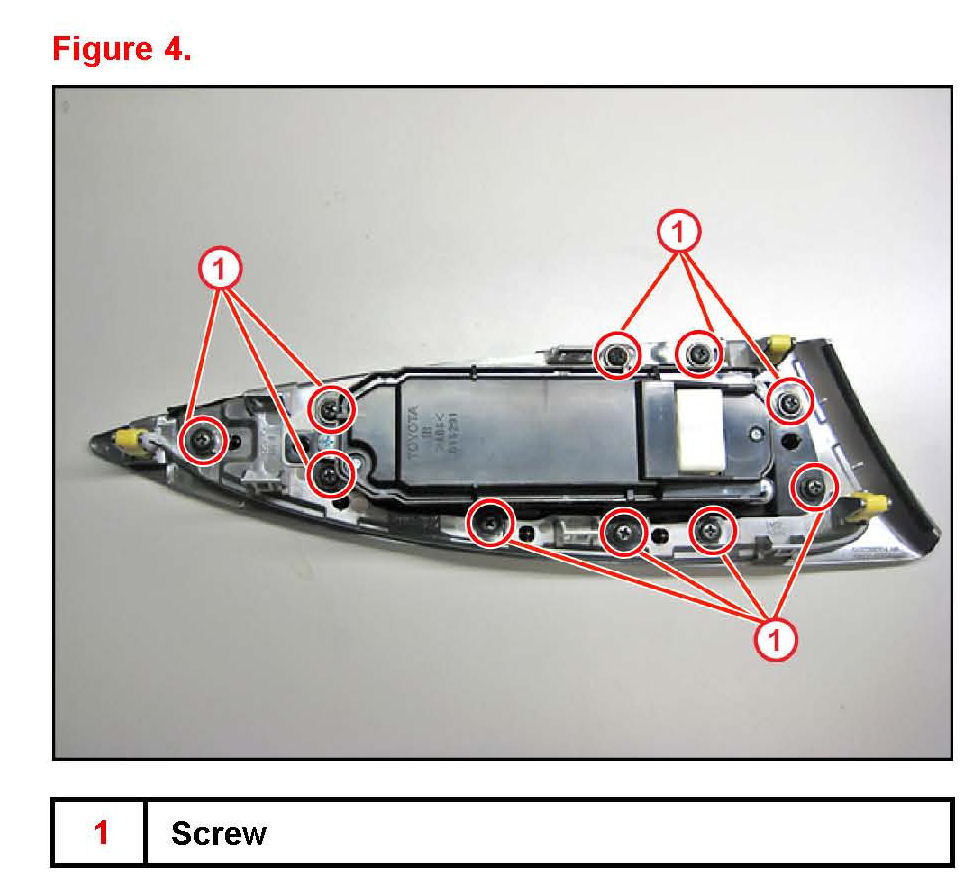

3. Remove the 10 screws.

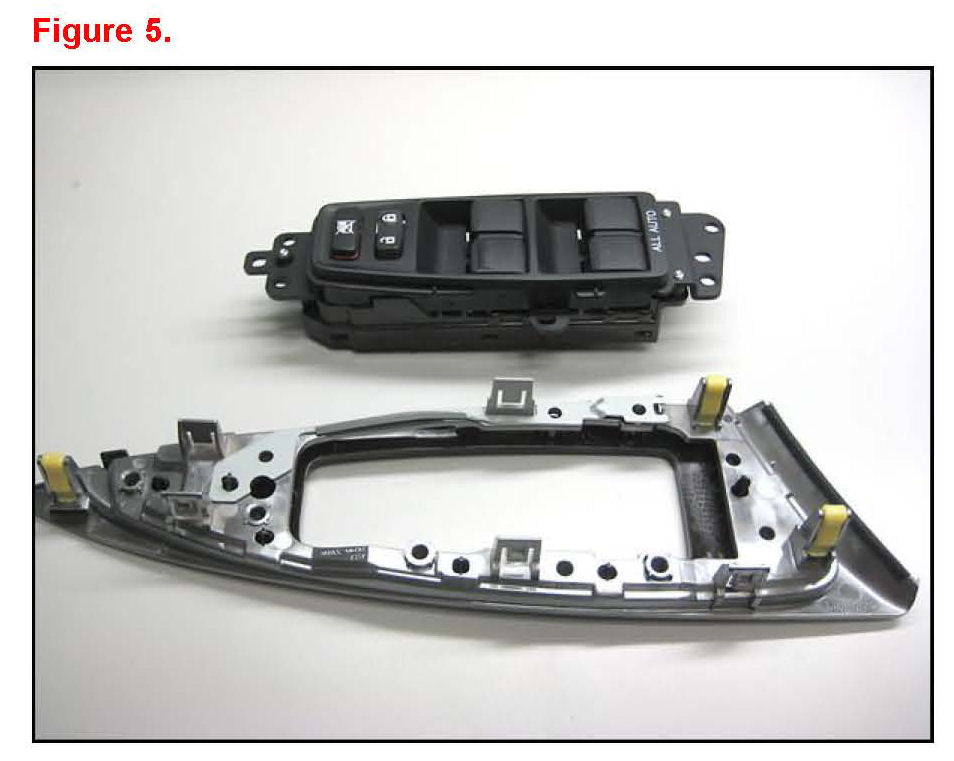

4. Remove the switch assembly.

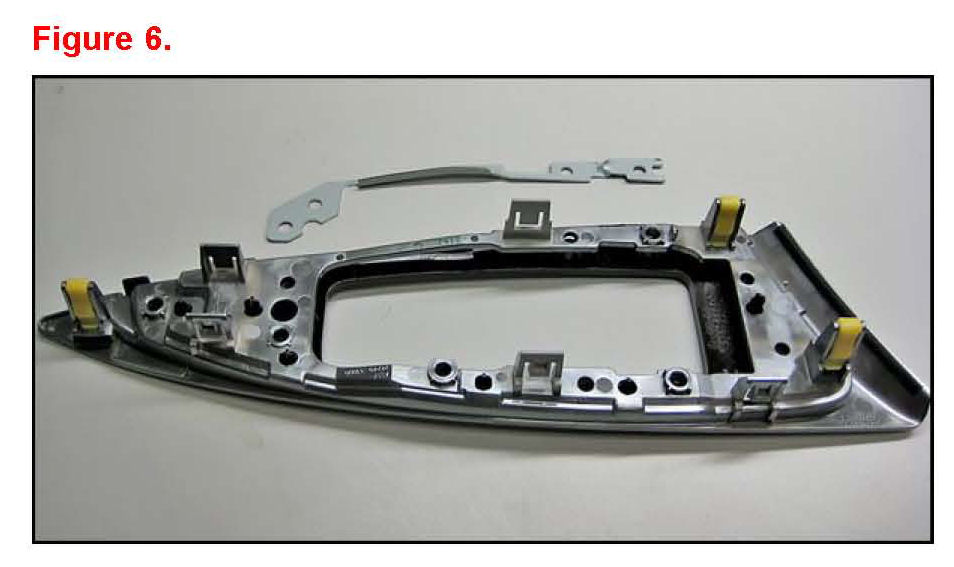

5. Remove steel bracket.

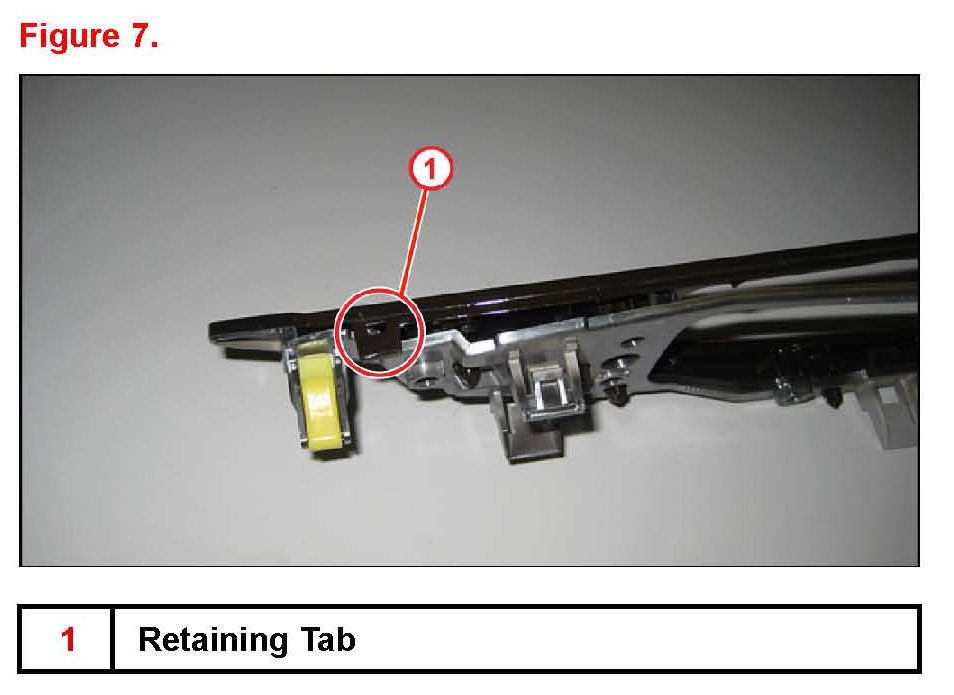

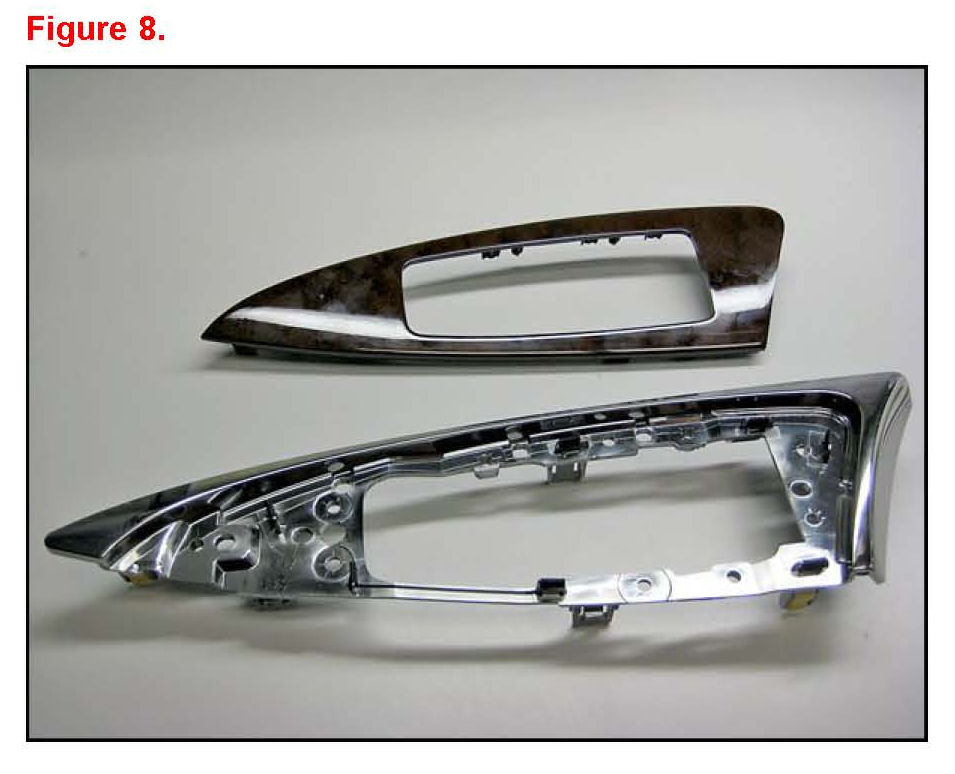

6. Release the retaining tab and separate the trim panel from the finish plate.





7. Fully seat the retaining tab and install the trim panel to the NEW finish plate.

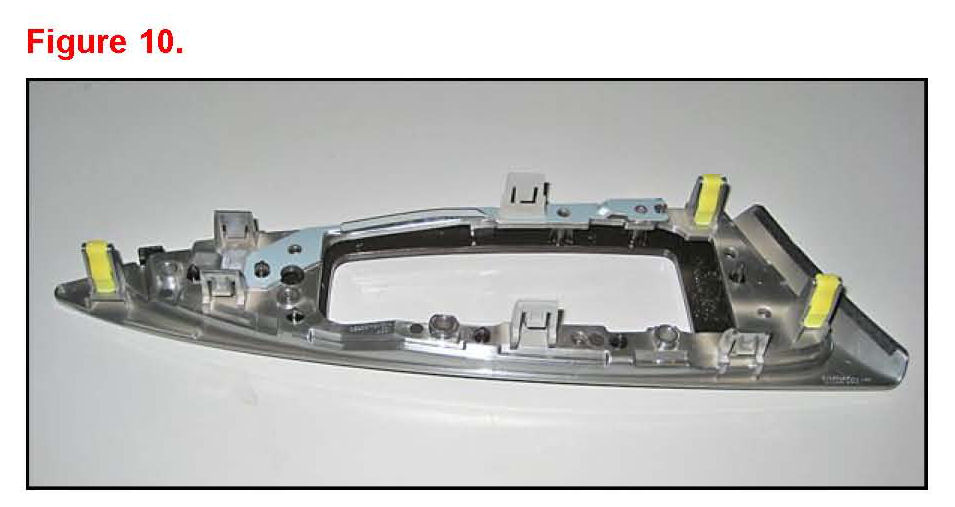

8. Install steel bracket.





9. Install the switch assembly and the 10 screws.

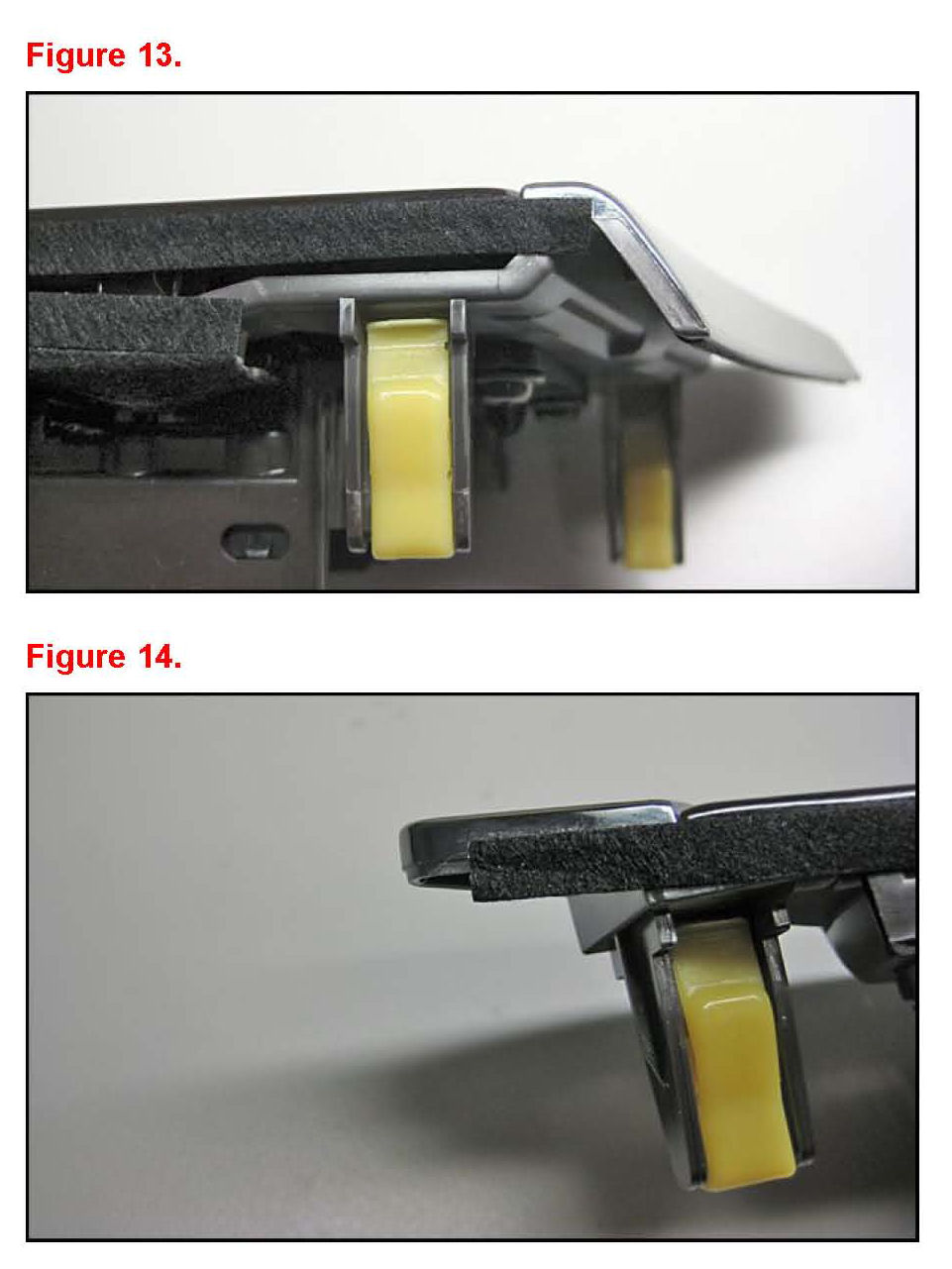

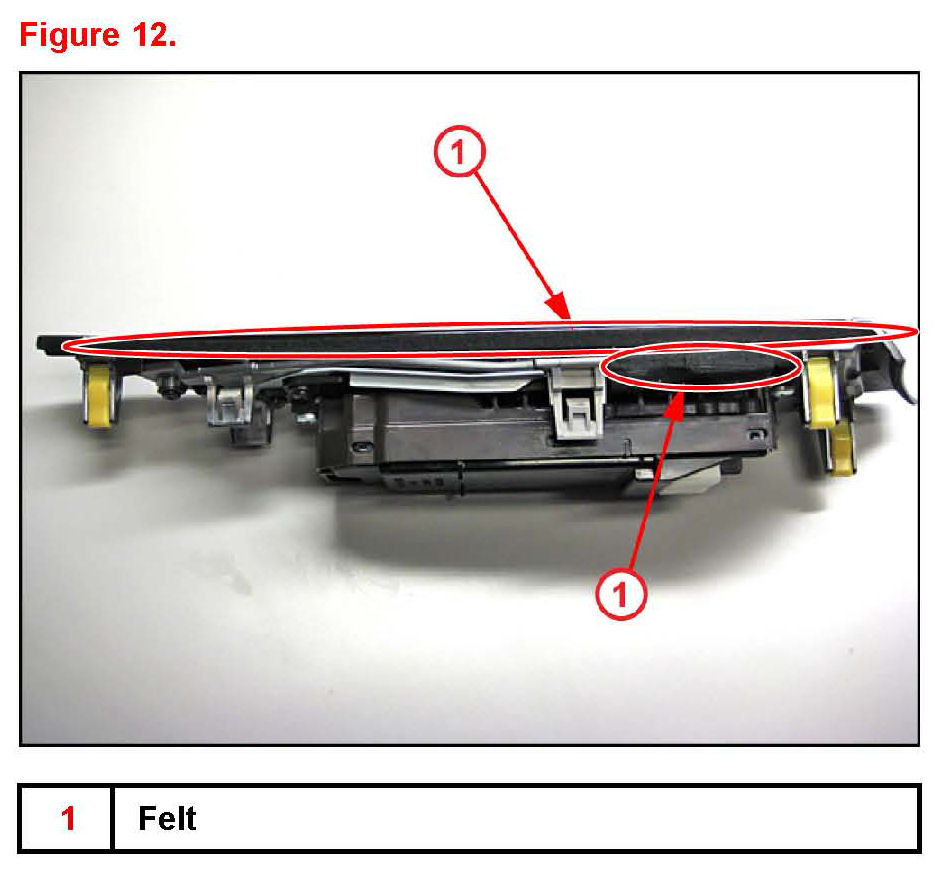

10. Apply NEW felt supplied with the finish plate.

Do not allow edges of felt to protrude.

11. Connect the connector engage the 5 claws and 3 clips and install the front door switch base assembly.
