Fuse Block

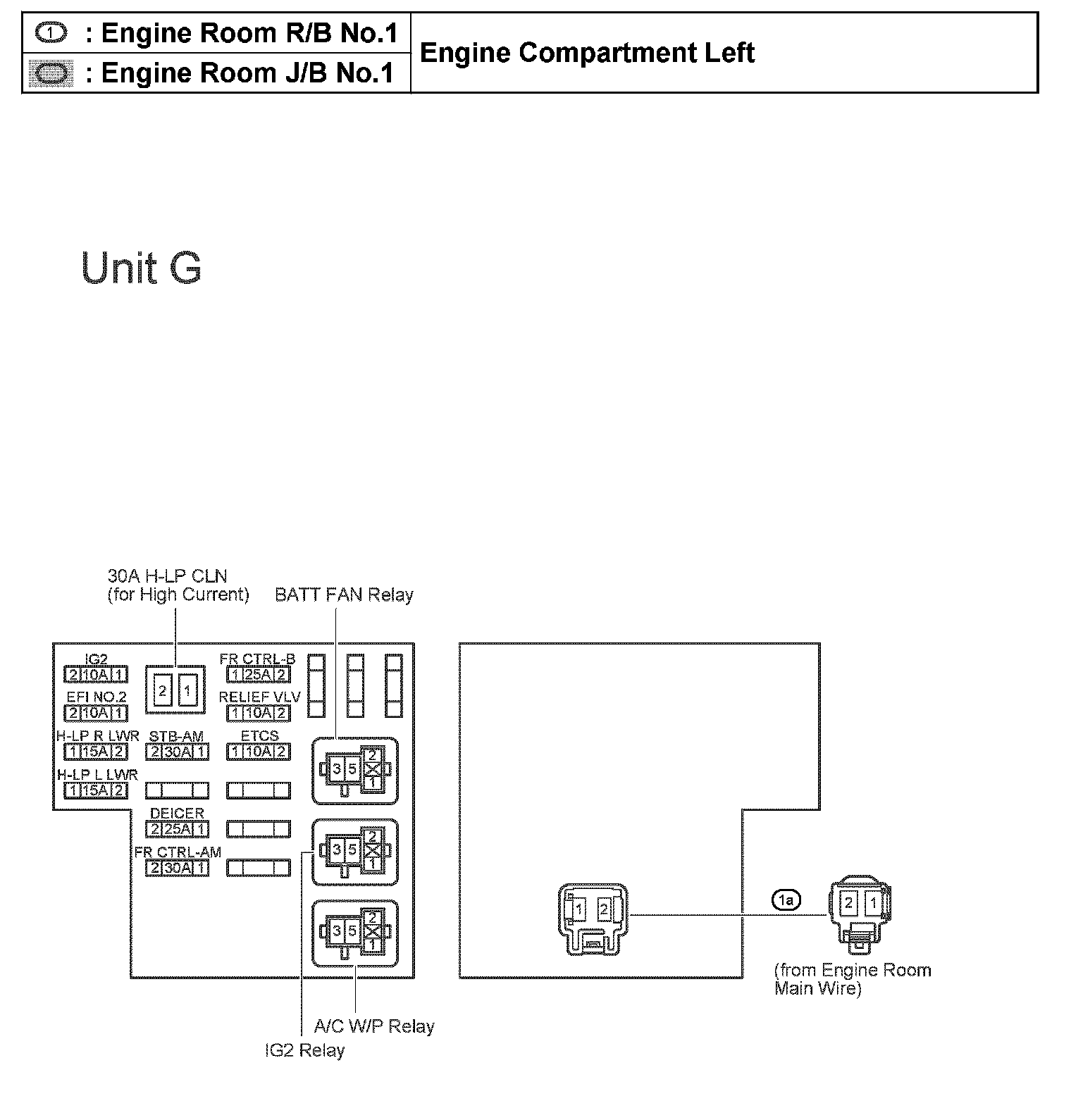

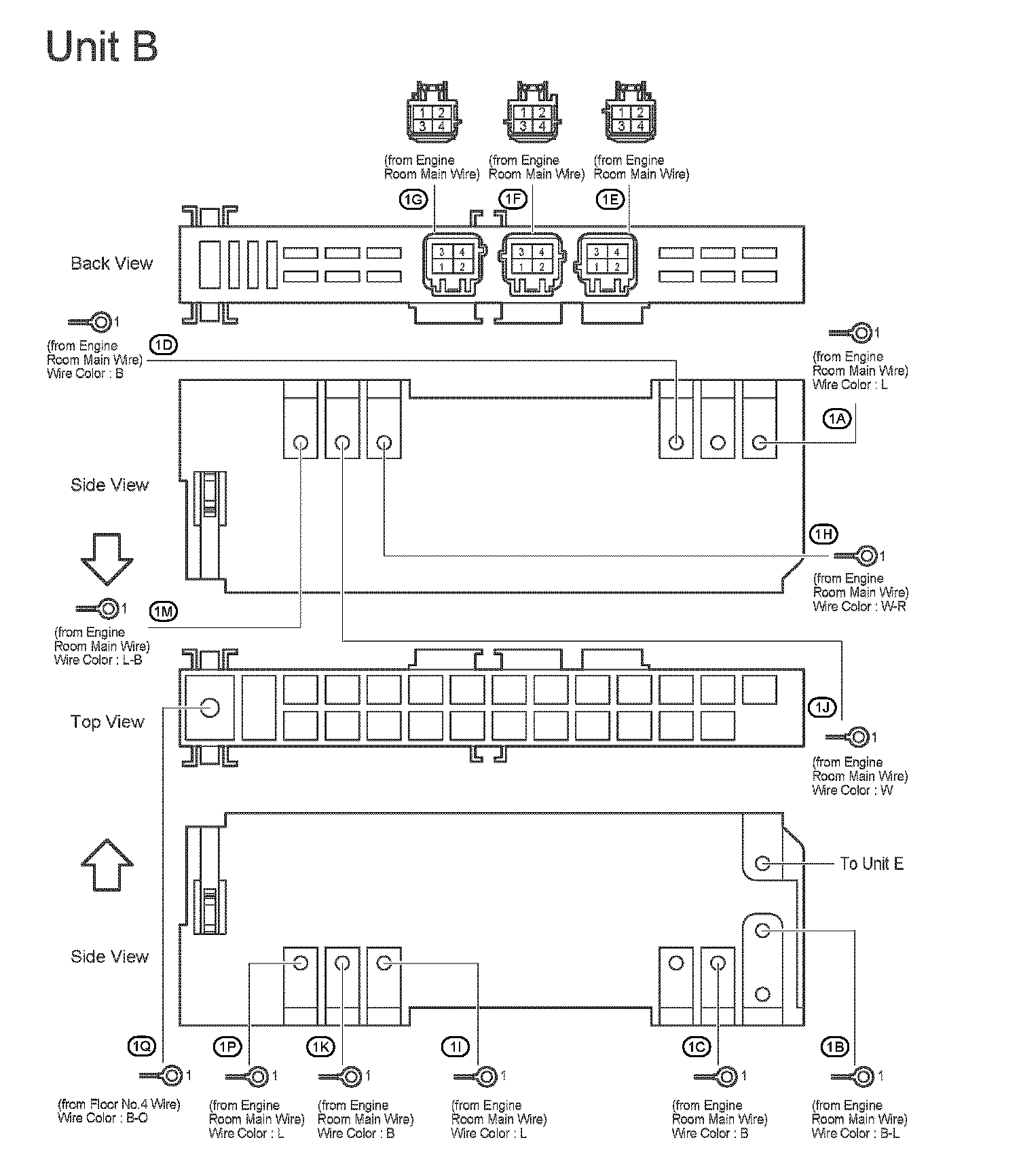

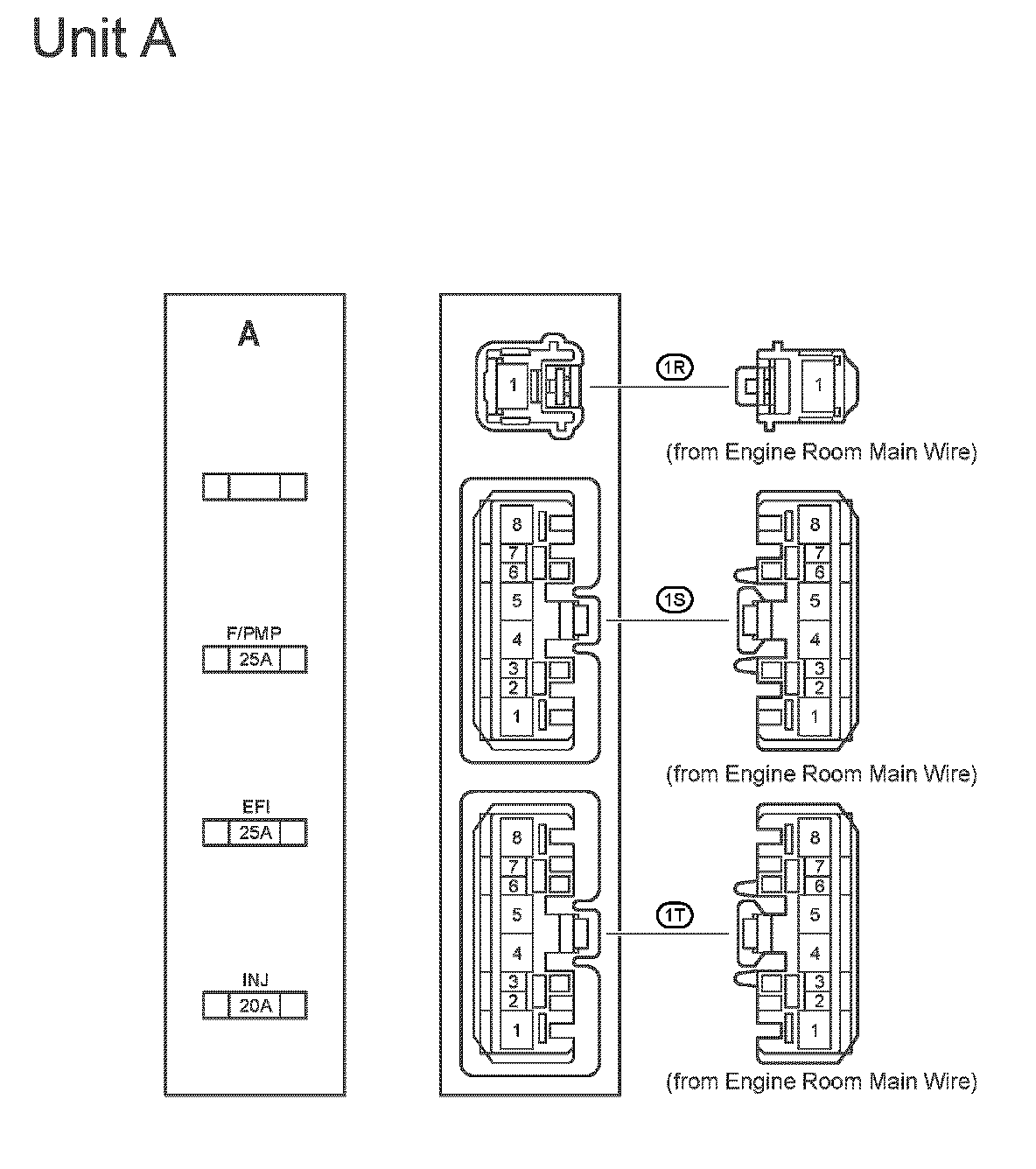

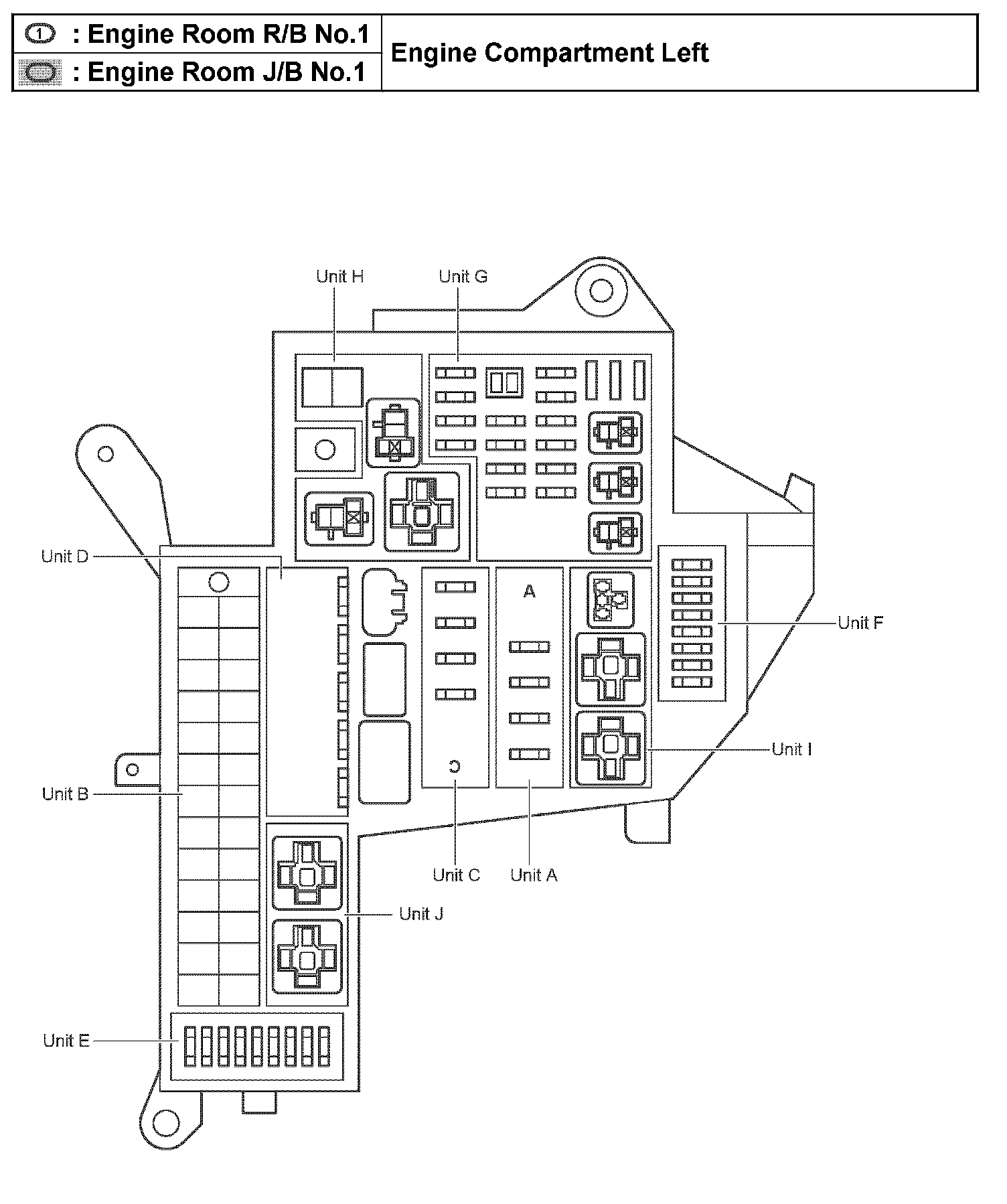

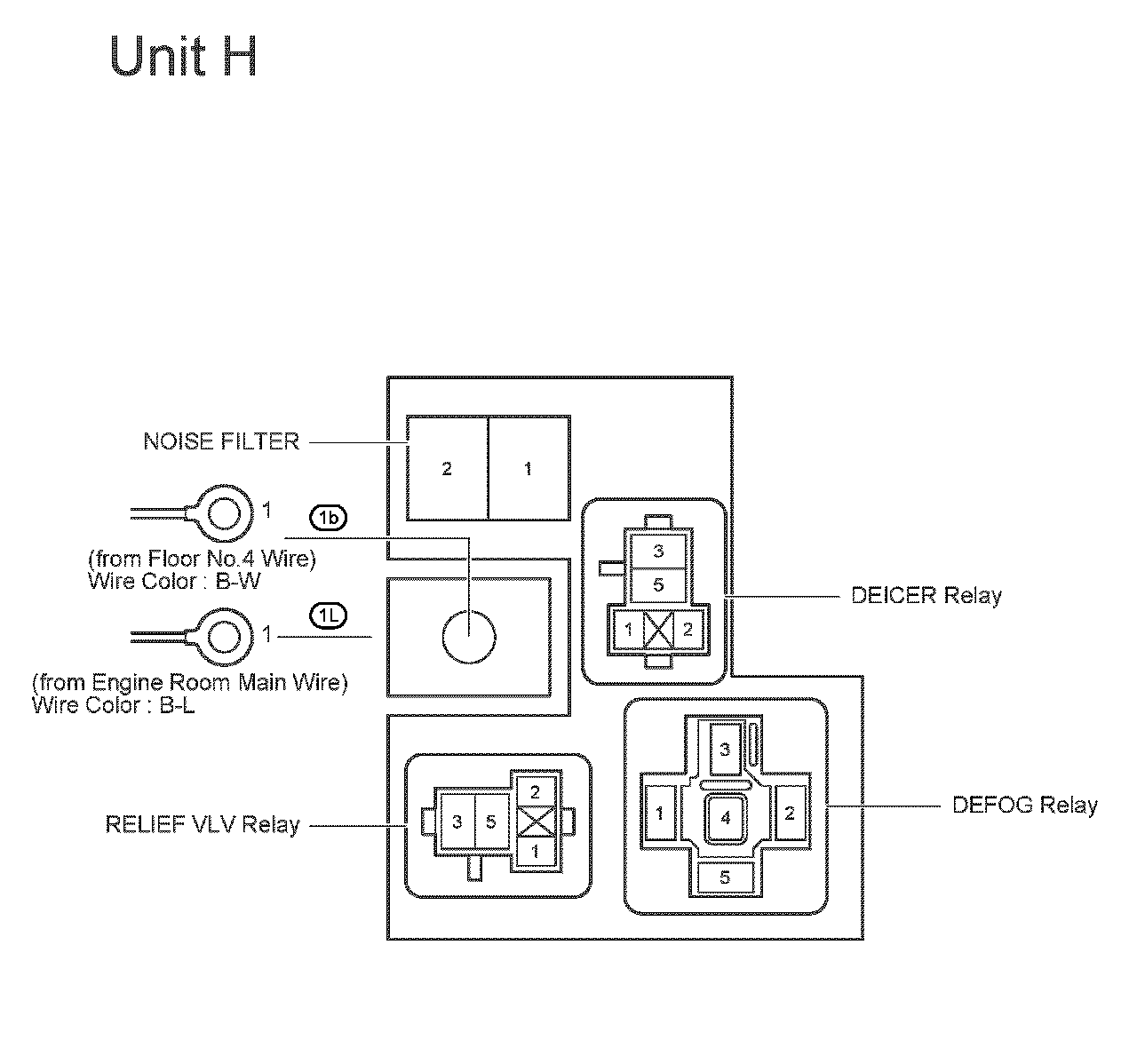

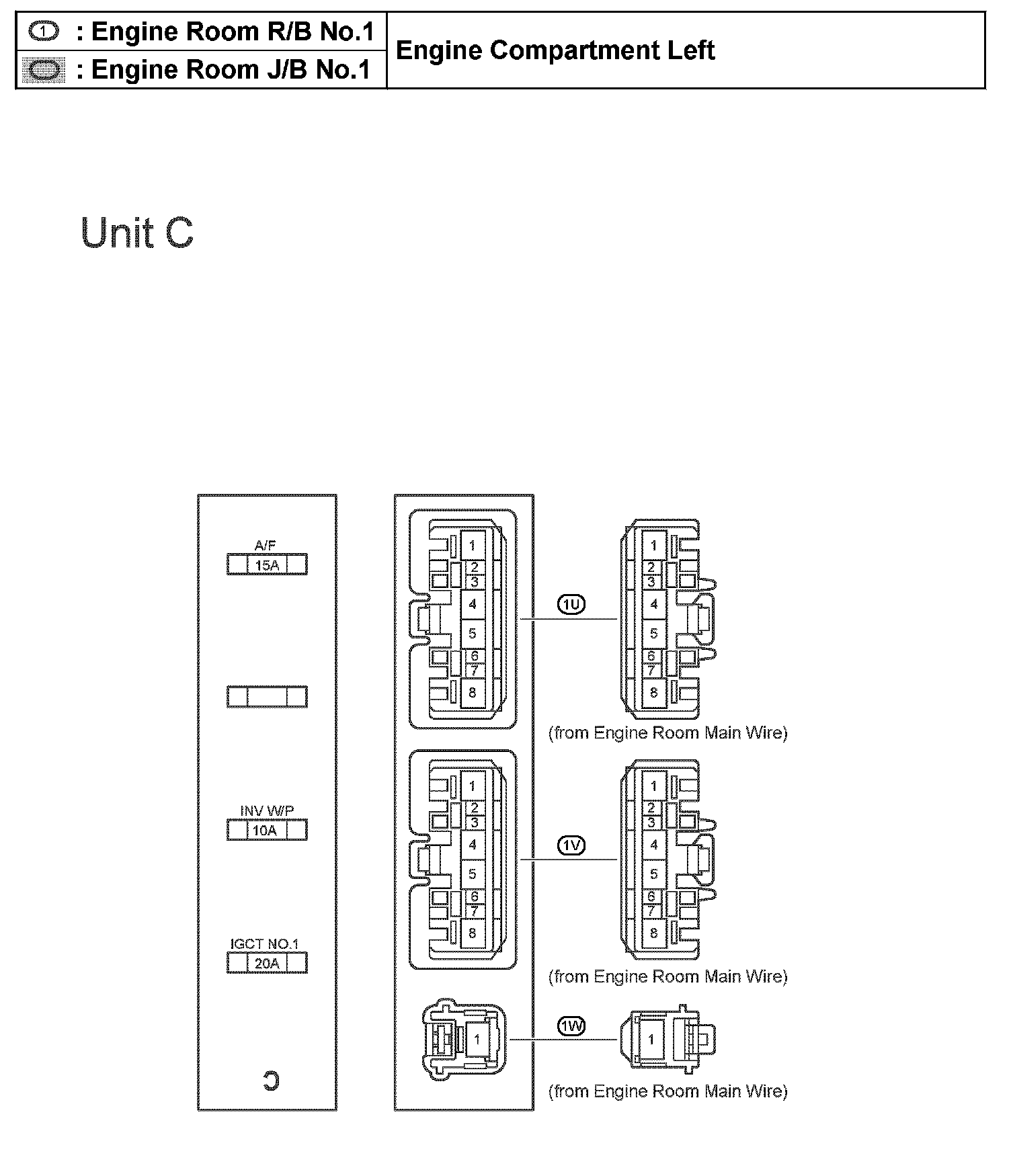

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

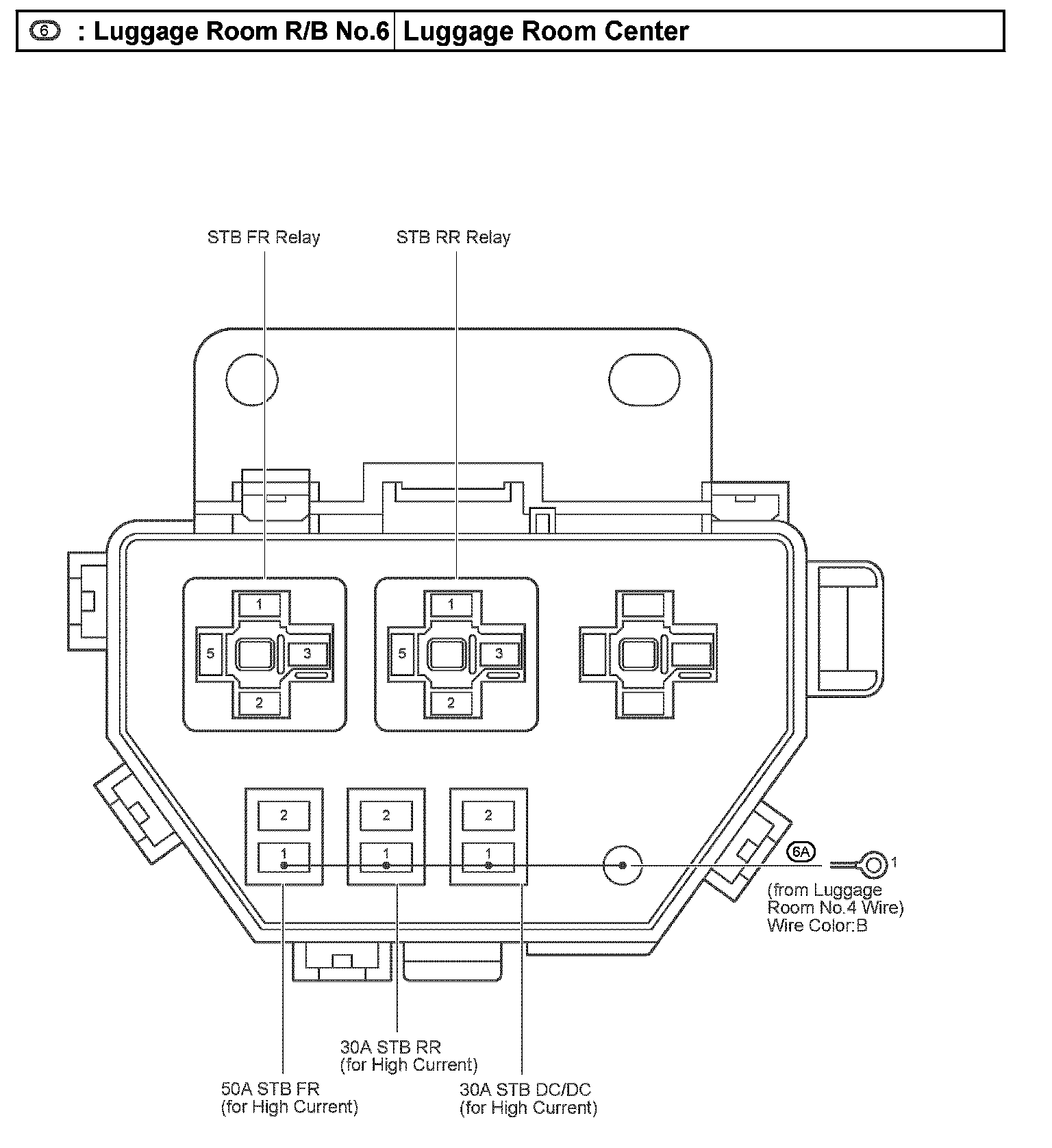

Luggage Room R/B No.6 - Luggage Room Center:

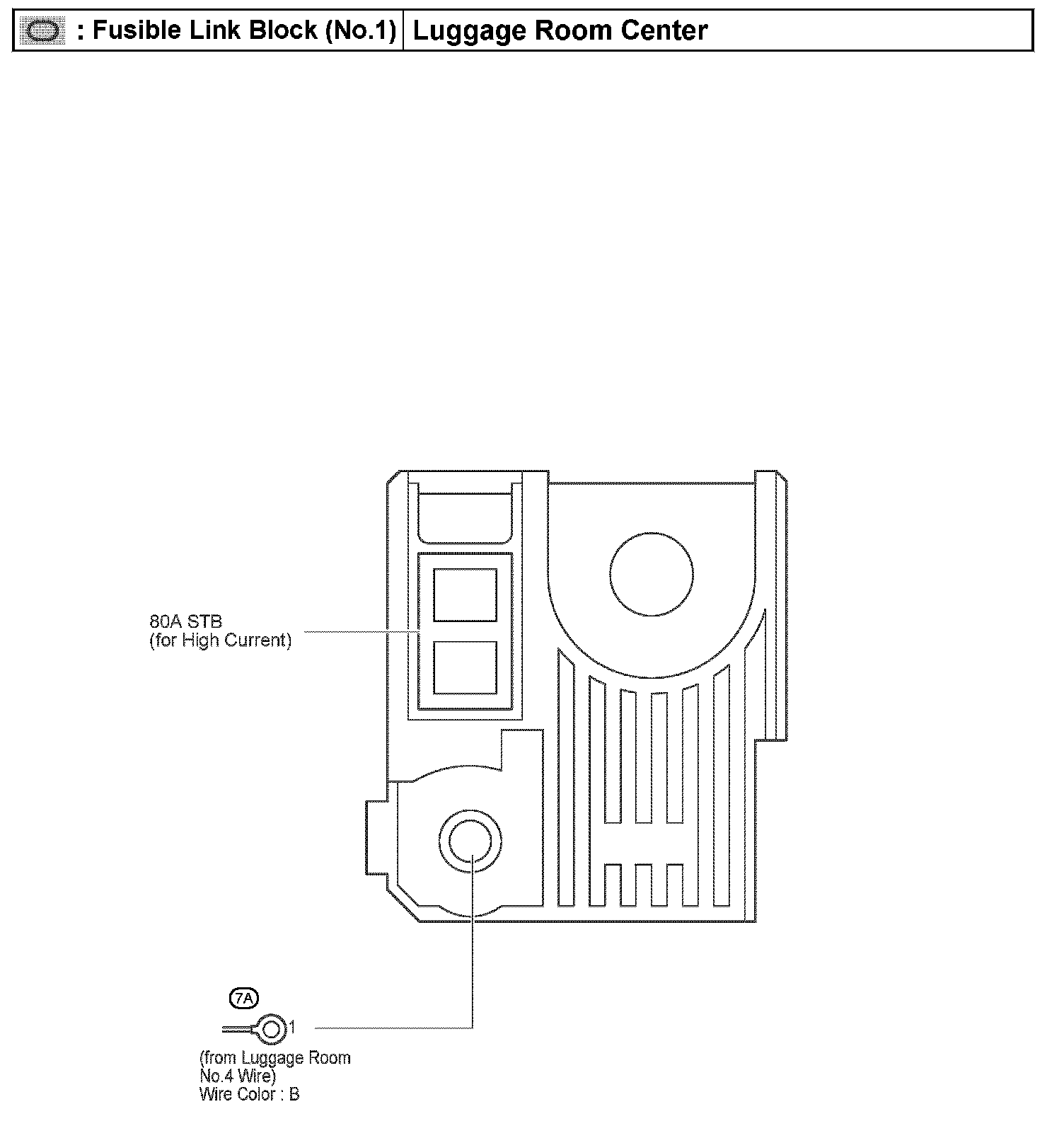

Fusible Link Block (No.1) - Luggage Room Center:

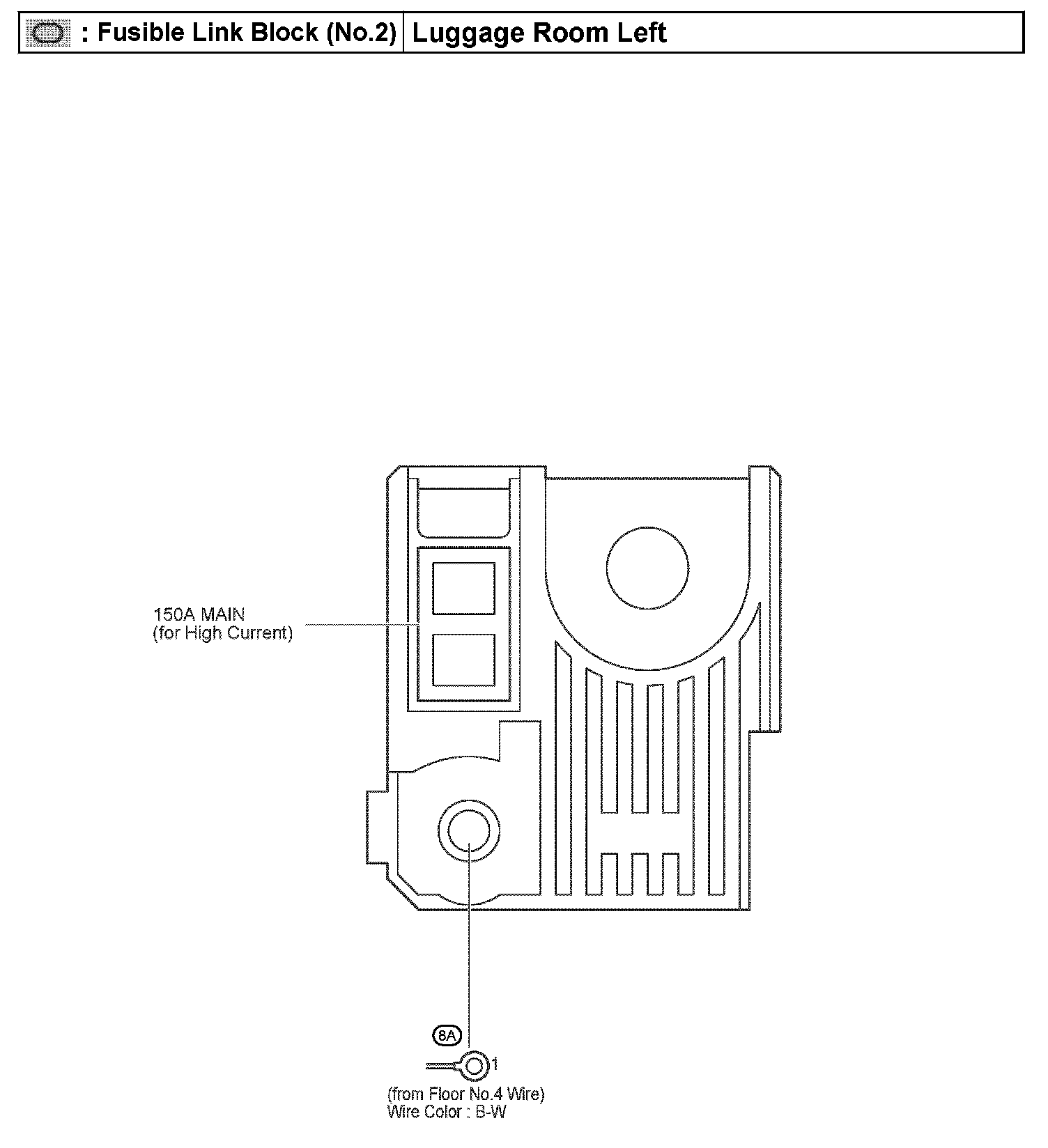

Fusible Link Block (No.2) - Luggage Room Left:

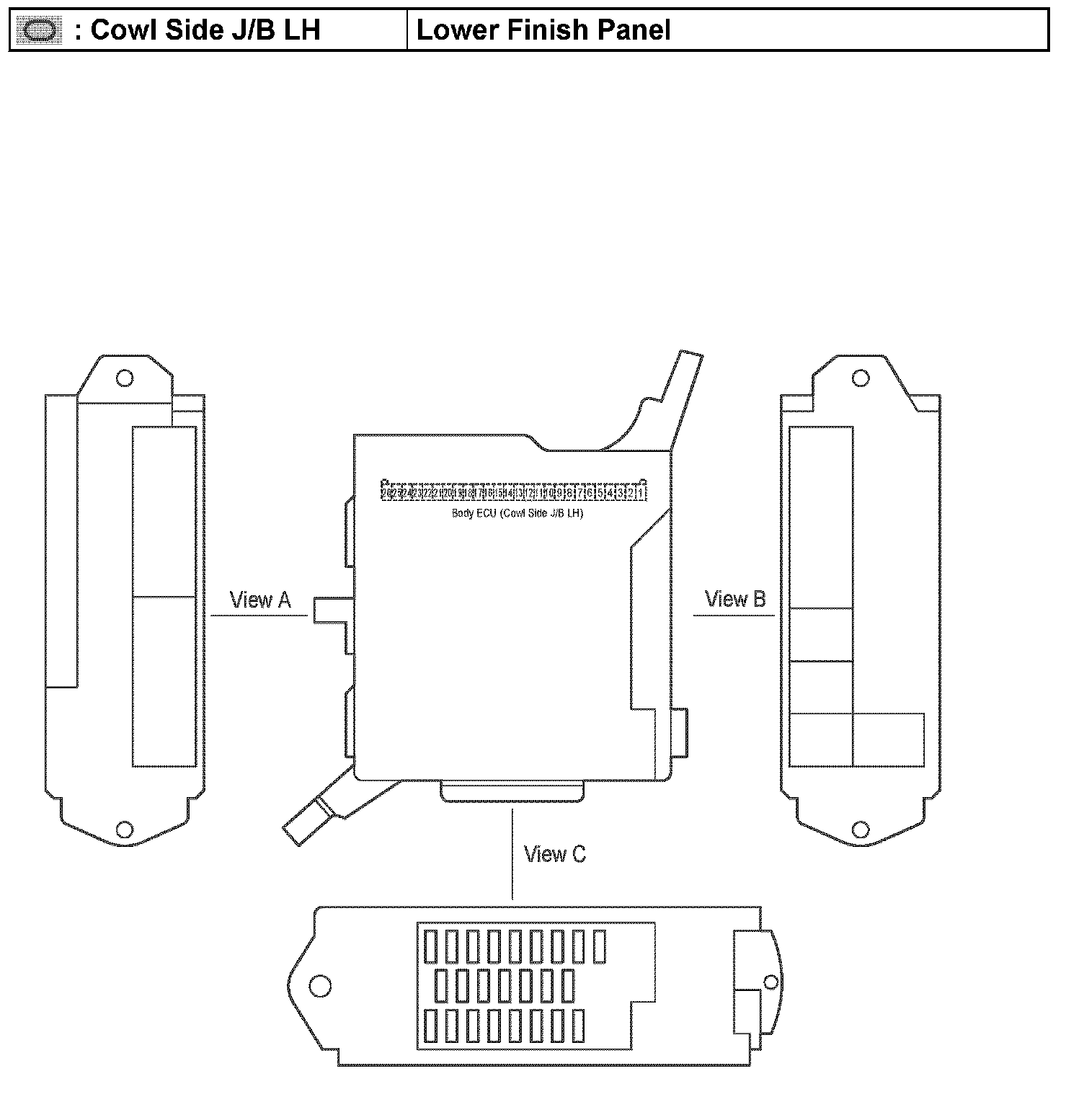

Cowl Side J/B LH - Lower Finish Panel:

Cowl Side J/B LH - Lower Finish Panel:

Cowl Side J/B LH - Lower Finish Panel:

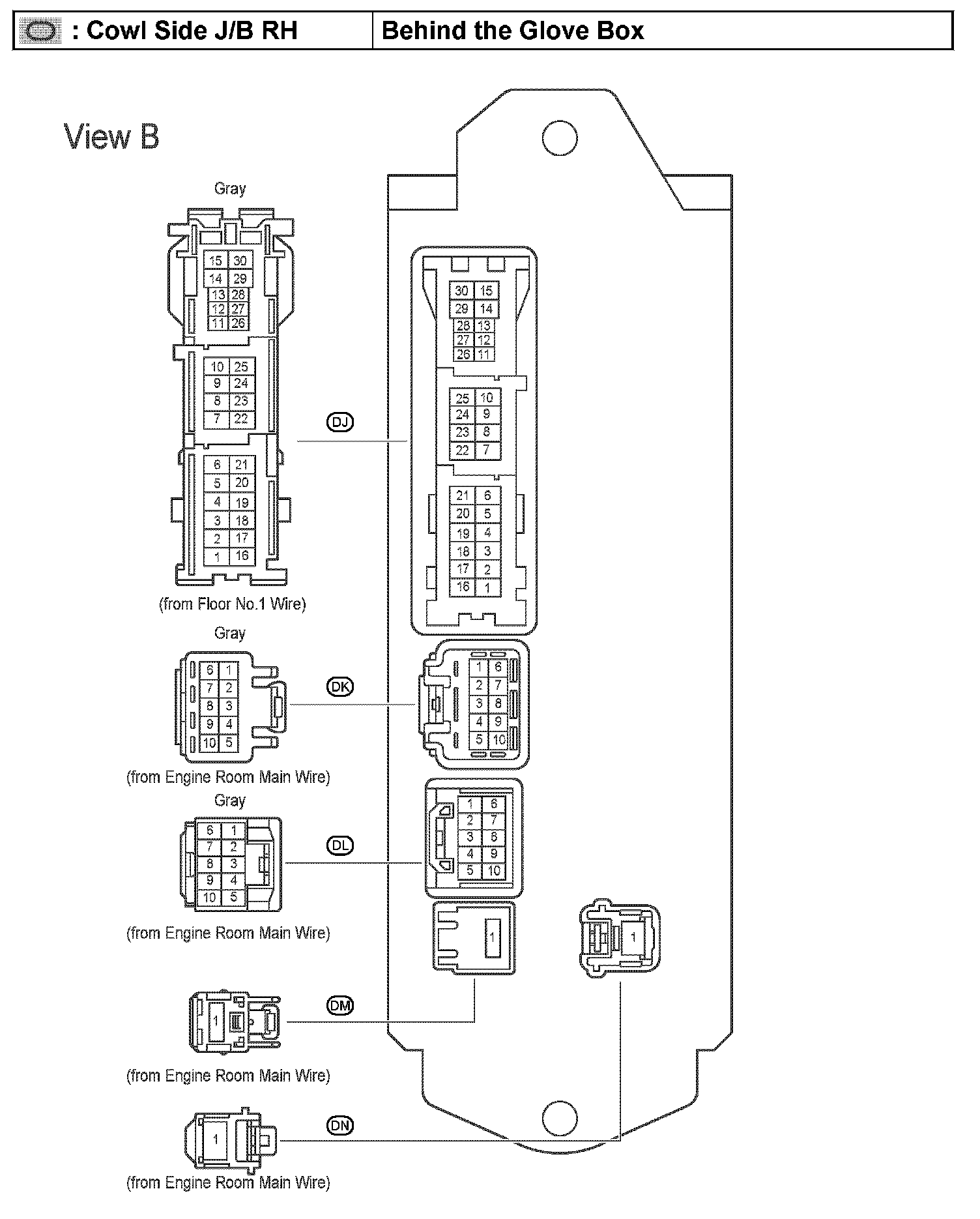

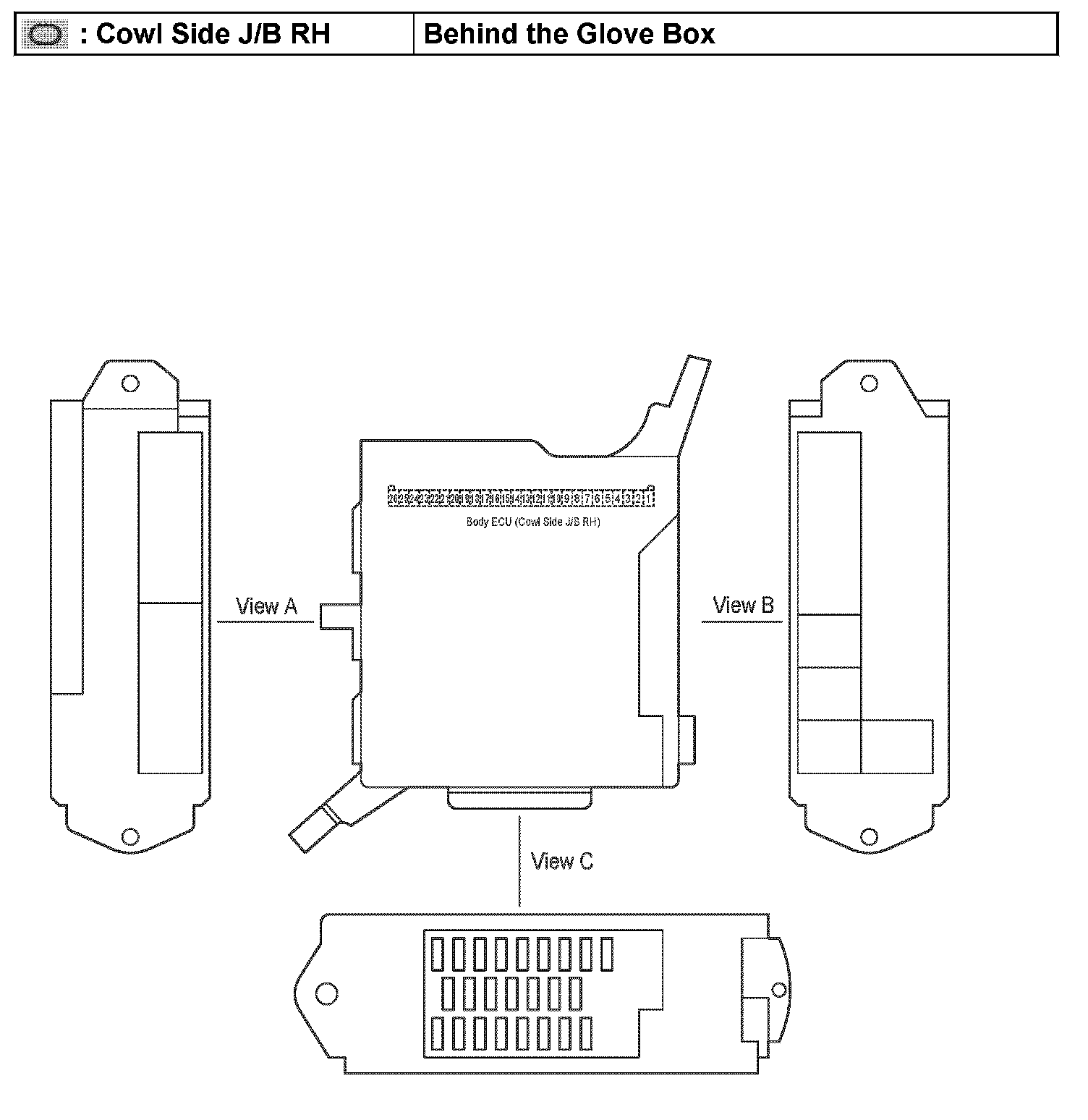

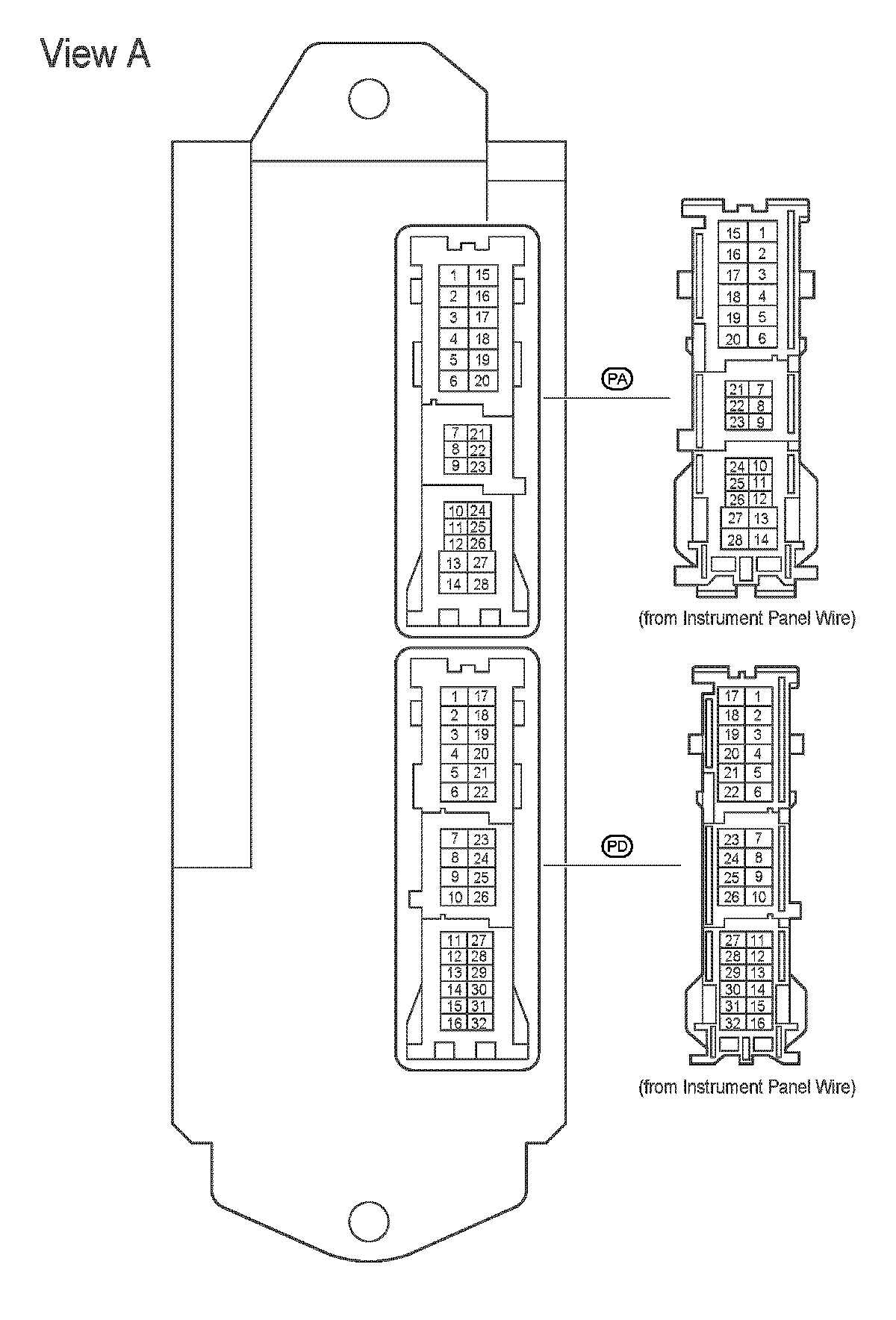

Cowl Side J/B RH - Behind the Glove Box:

Cowl Side J/B RH - Behind the Glove Box:

Cowl Side J/B RH - Behind the Glove Box:

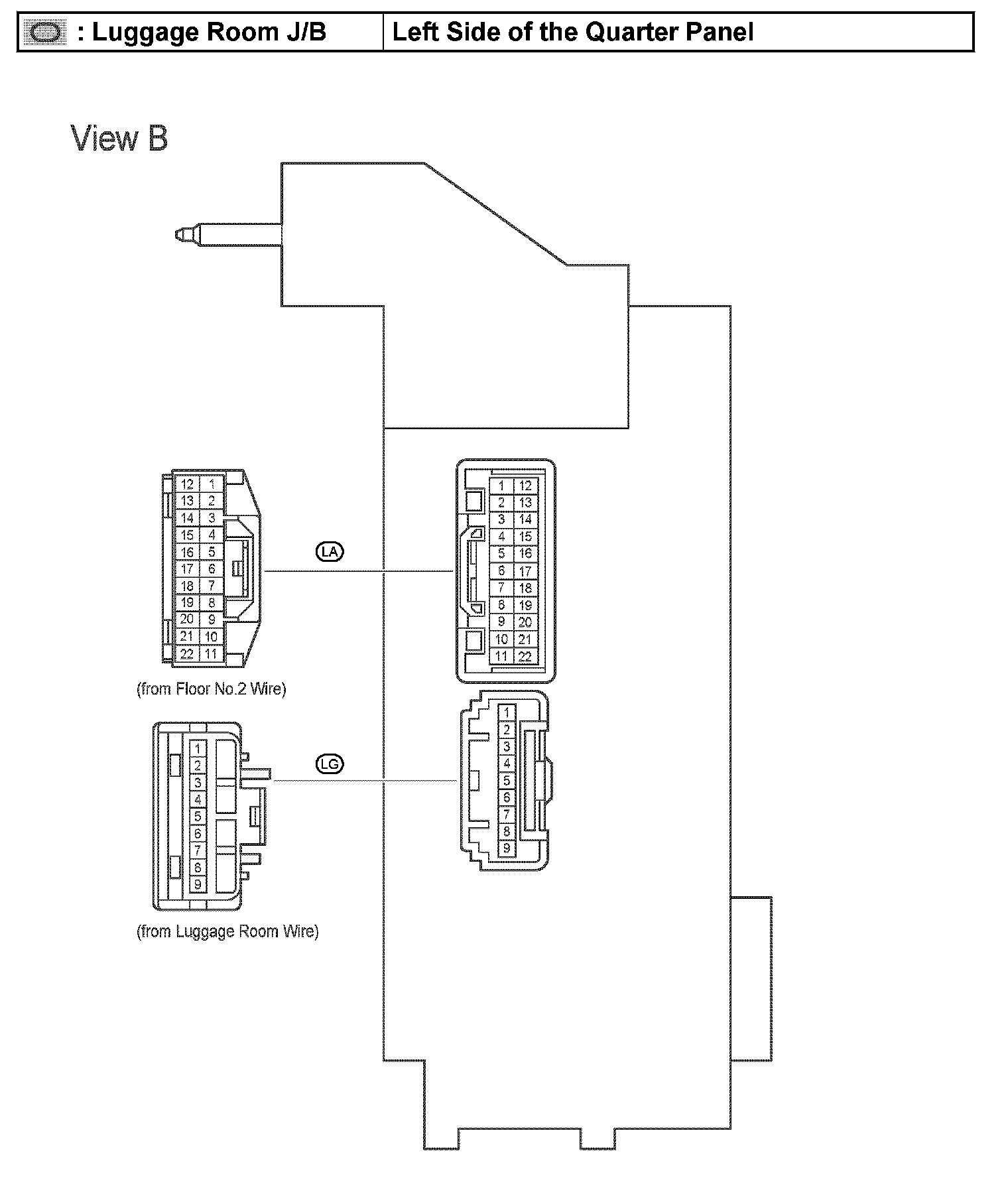

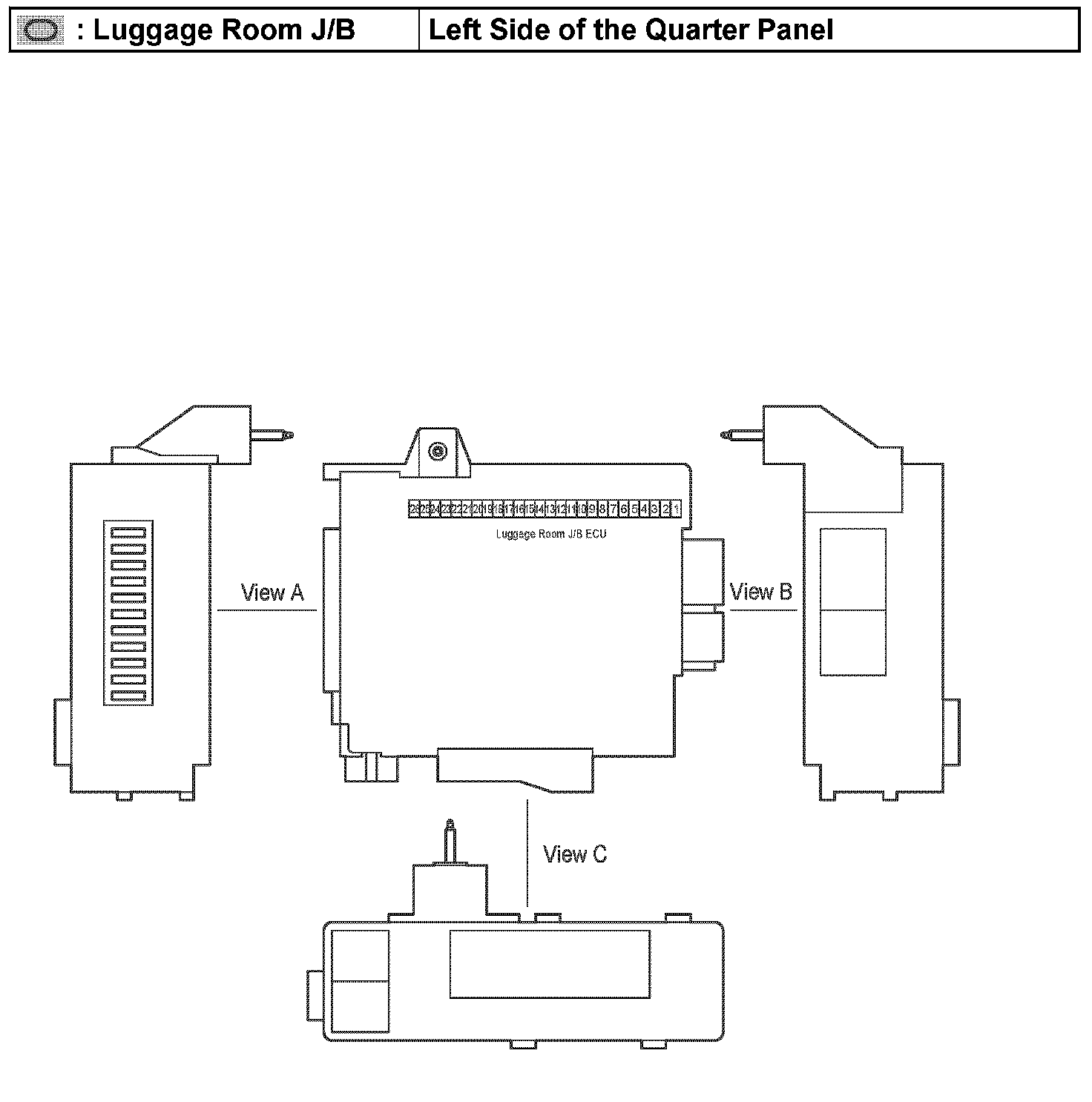

Luggage Room J/B - Left Side of the Quarter Panel:

Luggage Room J/B - Left Side of the Quarter Panel:

Luggage Room J/B - Left Side of the Quarter Panel:

Center J/B LH - Right Side of the Instrument Panel Reinforcement:

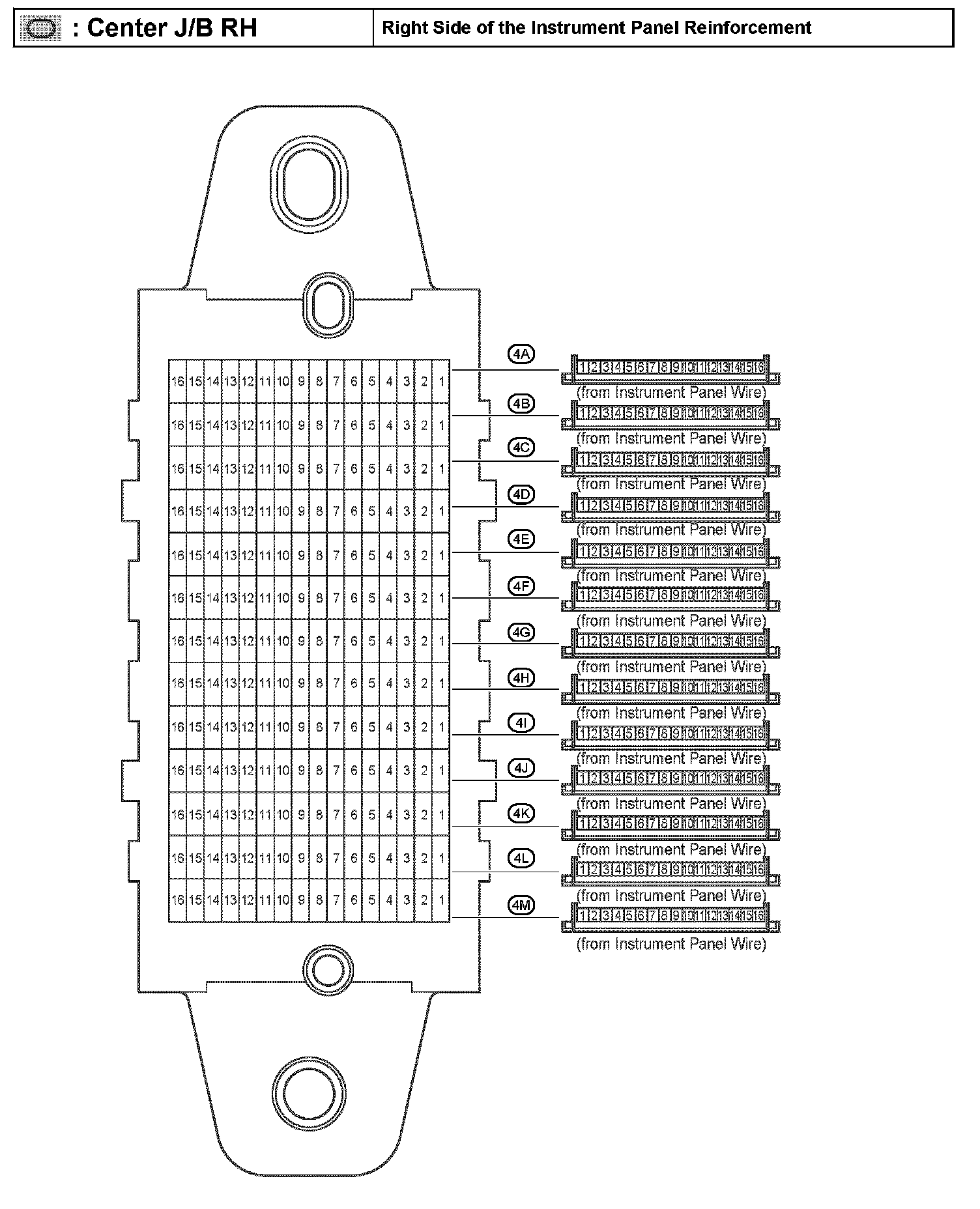

Center J/B RH - Right Side of the Instrument Panel Reinforcement:

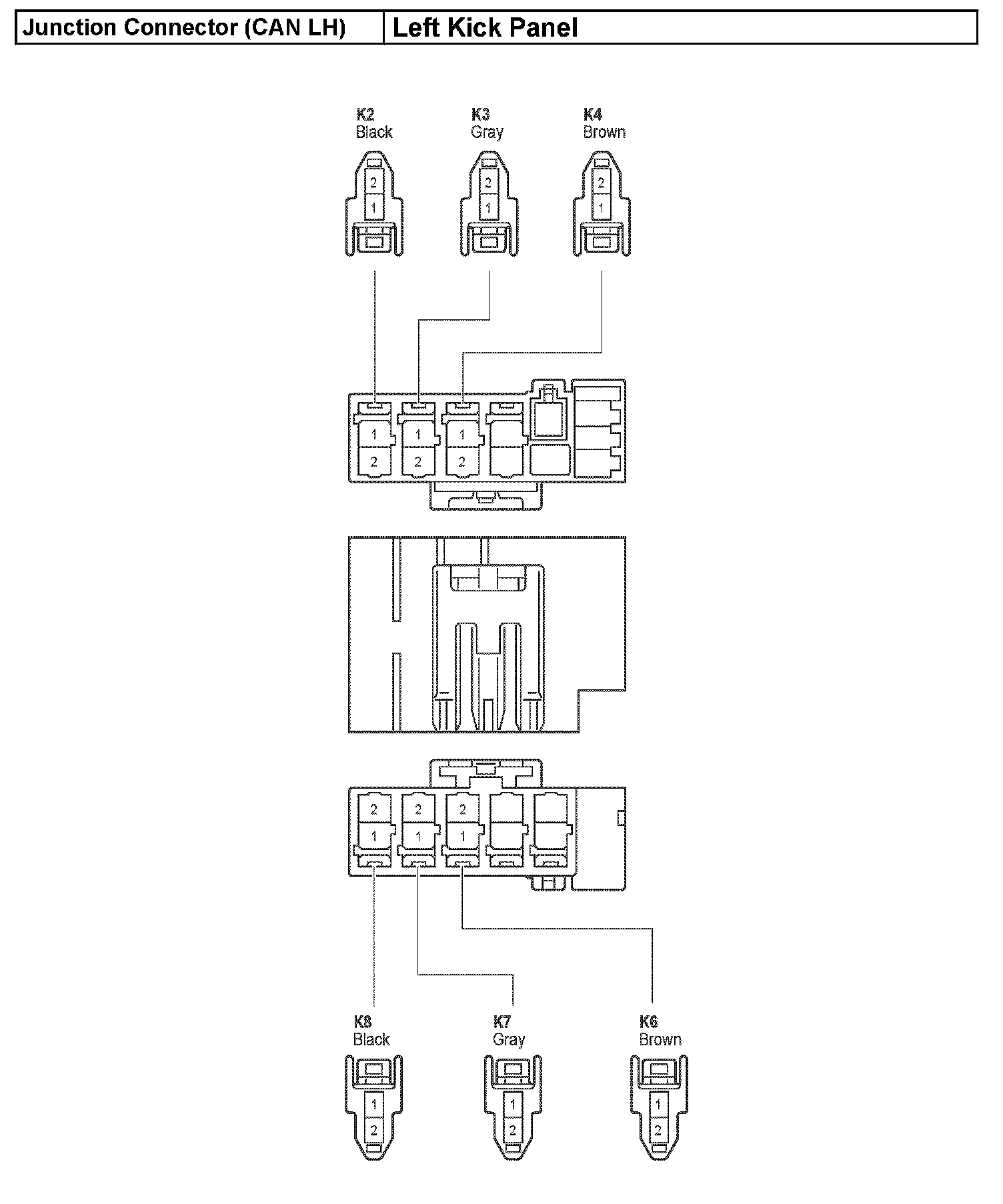

Junction Connector (CAN LH) - Left Kick Panel:

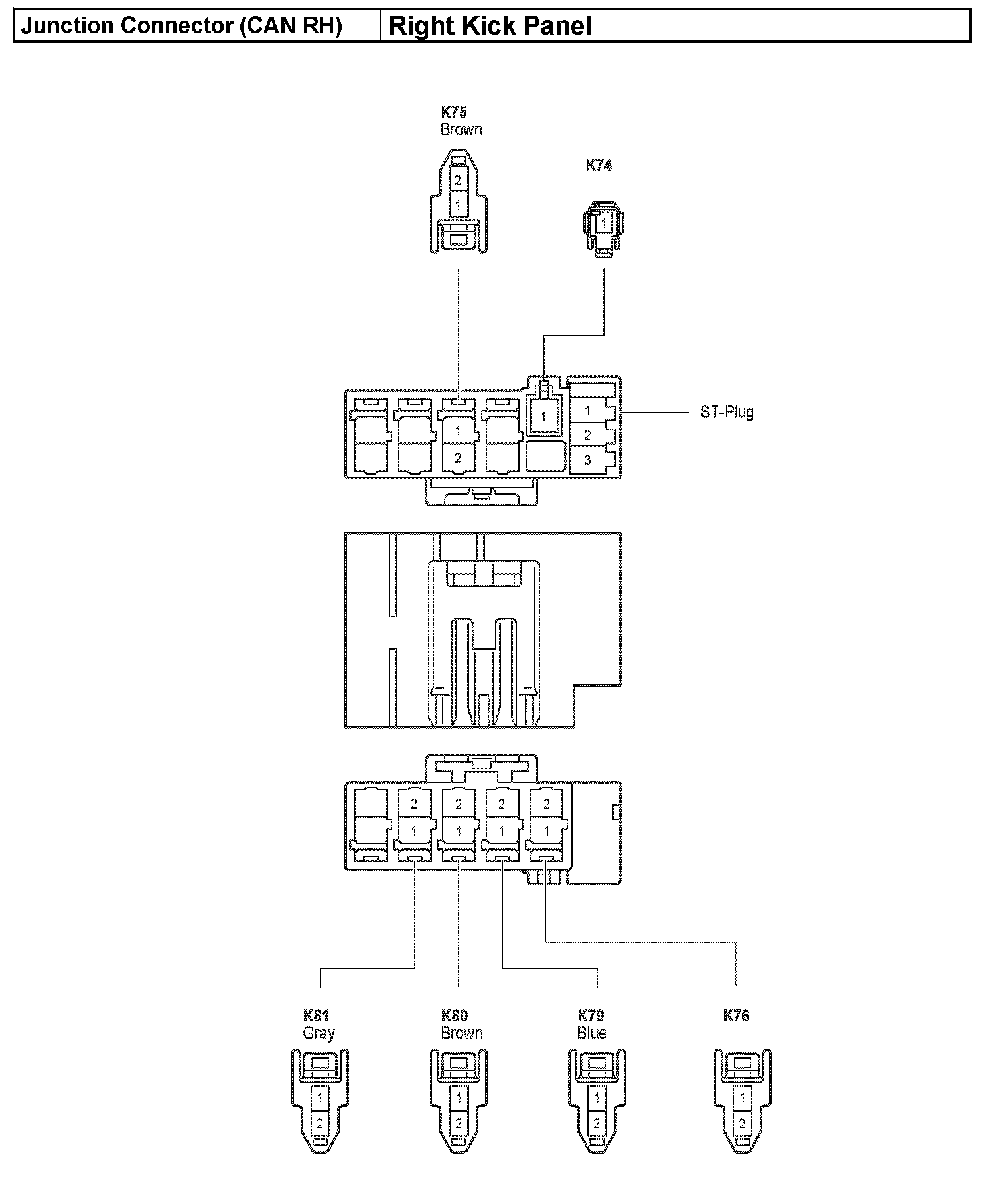

Junction Connector (CAN RH) - Right Kick Panel:

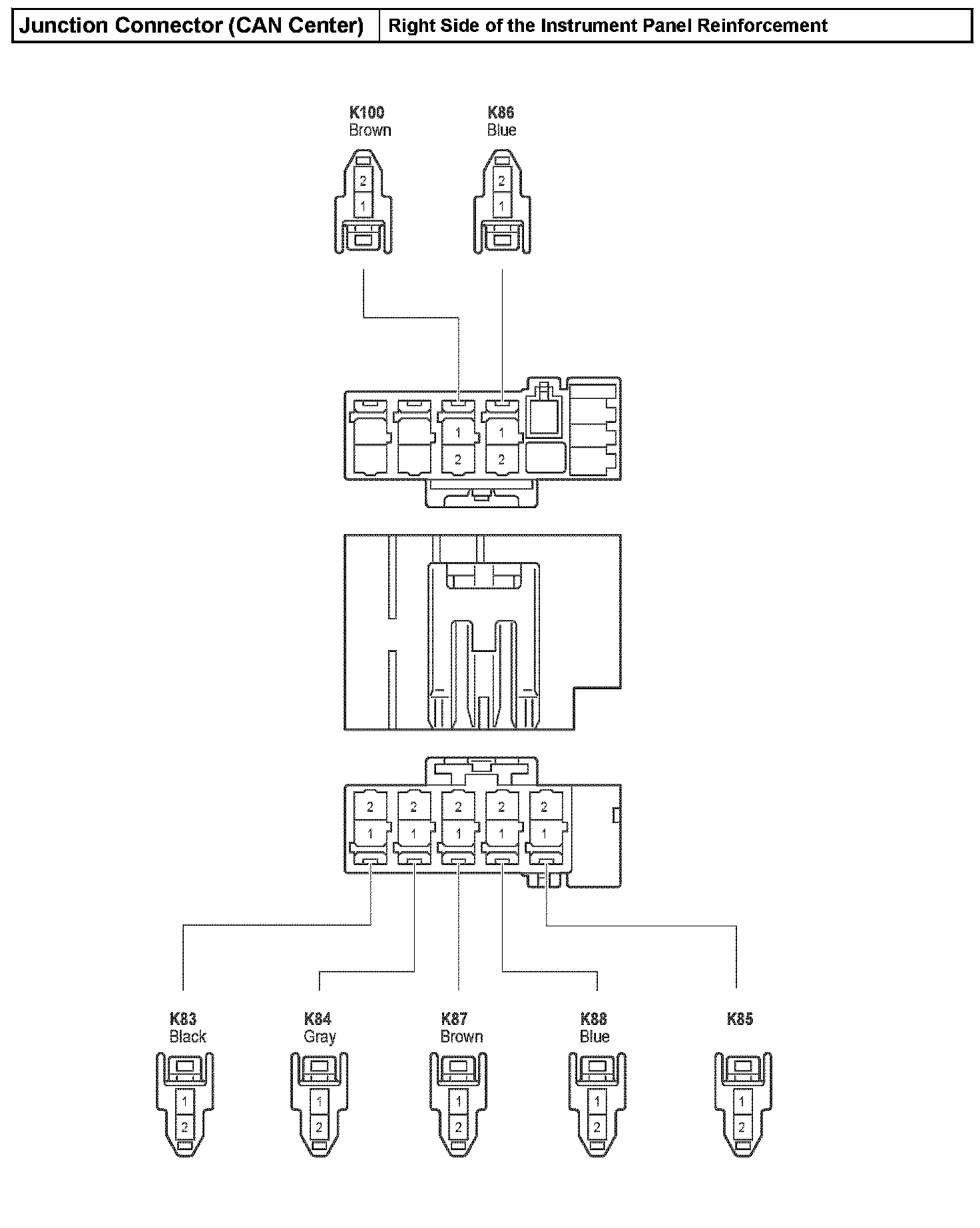

Junction Connector (CAN Center) - Right Side of the Instrument Panel Reinforcement:
