2GR-FSE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

(a) Using SST, install the sensor to the exhaust manifold RH.





SST : 09224-00010

Torque : 40 Nm (408 kgf-cm, 30 ft-lbf) for use with SST

Torque : 44 Nm (449 kgf-cm, 32 ft-lbf) for use without SST

HINT

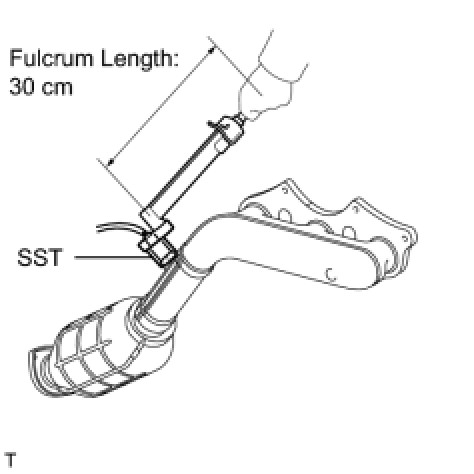

Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

2. INSTALL AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)

(a) Using SST, install the sensor to the exhaust manifold LH.





SST : 09224-00010

Torque : 40 Nm (408 kgf-cm, 30 ft-lbf) for use with SST

Torque : 44 Nm (449 kgf-cm, 32 ft-lbf) for use without SST

HINT
Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

3. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH Installation

4. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH Installation

5. INSTALL POWER STEERING ECU ASSEMBLY

(a) Install the power steering ECU Installation.

6. INSTALL FRONT EXHAUST PIPE ASSEMBLY

(a) Install the front exhaust pipe assembly Installation.

7. INSTALL INVERTER WITH CONVERTER

(a) Install the inverter with converter Installation.

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

9. INSTALL SERVICE PLUG GRIP Installation

10. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
