Installation





2GR-FSE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

(a) Using SST, install the sensor to the front exhaust pipe.





SST : 09224-00010

Torque : 40 Nm (408 kgf-cm, 30 ft-lbf) for use with SST

Torque : 44 Nm (449 kgf-cm, 32 ft-lbf) for use without SST

HINT

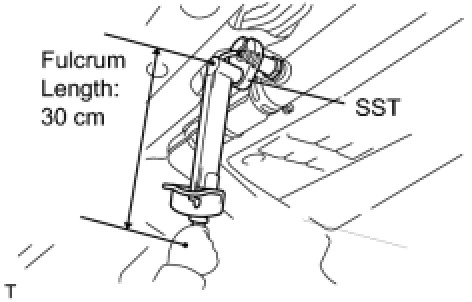

* Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
* Make sure SST and wrench are connected in a straight line.

(b) Pass the sensor connector through the floor panel and install the grommet.

(c) Connect the sensor connector.





2. INSTALL HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

(a) Using SST, install the sensor to the front exhaust pipe.





SST : 09224-00010

Torque : 40 Nm (408 kgf-cm, 30 ft-lbf) for use with SST

Torque : 44 Nm (449 kgf-cm, 32 ft-lbf) for not use without SST

HINT

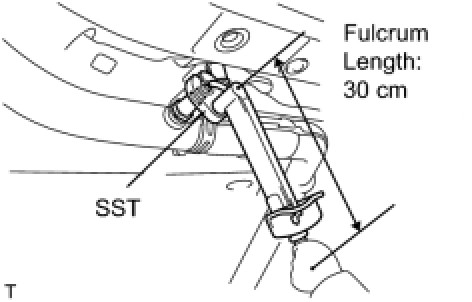

* Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
* Make sure SST and wrench are connected in a straight line.

(b) Pass the sensor connector through the floor panel and install the grommet.

(c) Connect the sensor connector.





3. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

4. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

5. INSTALL CONSOLE BOX PLATE Installation

6. INSTALL CONSOLE UPPER PANEL ASSEMBLY Installation

7. INSTALL FRONT CONSOLE UPPER GARNISH Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

9. INSTALL SERVICE PLUG GRIP Installation

10. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
