Alignment

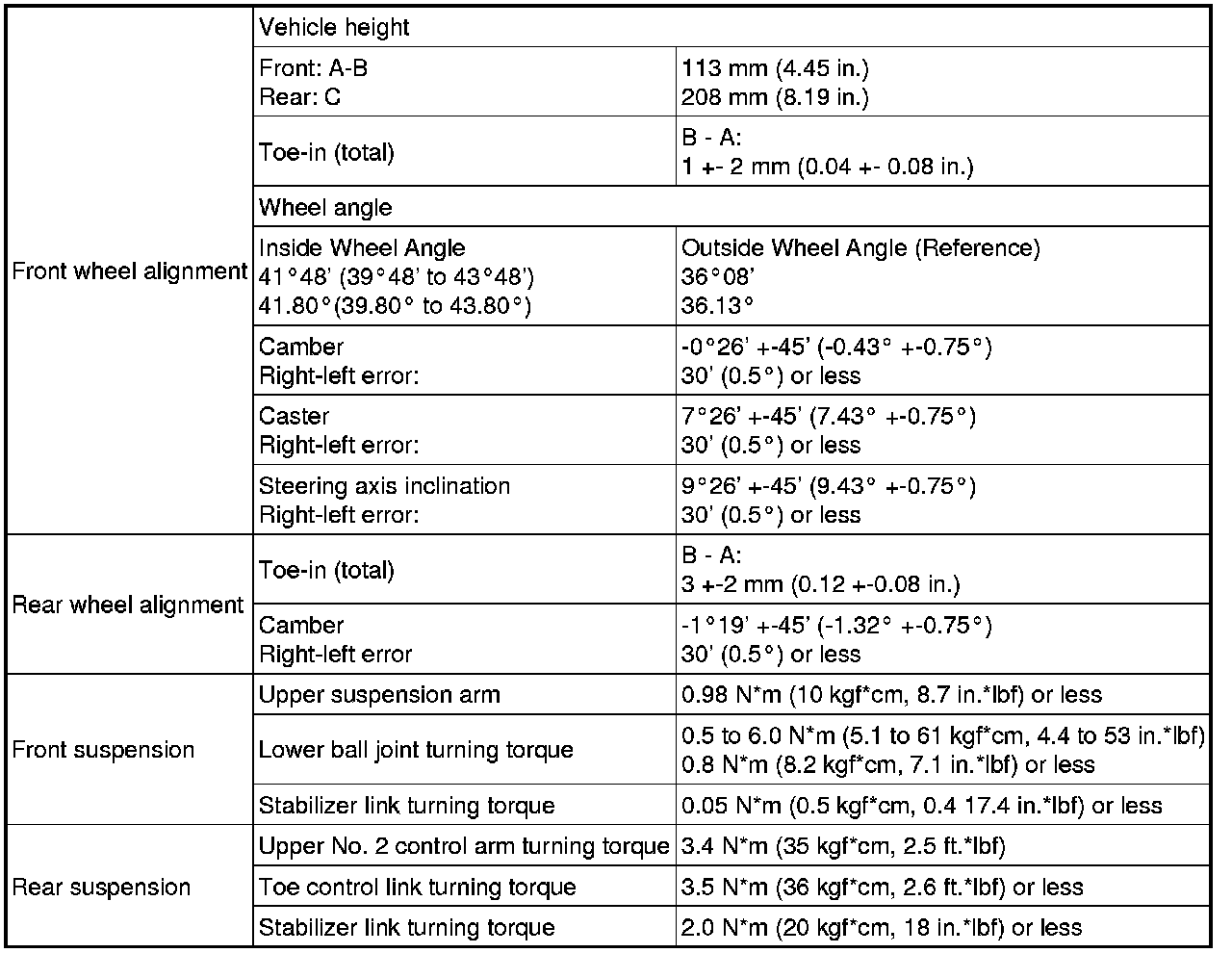

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATAAlignment
Ride height
Standard vehicle height

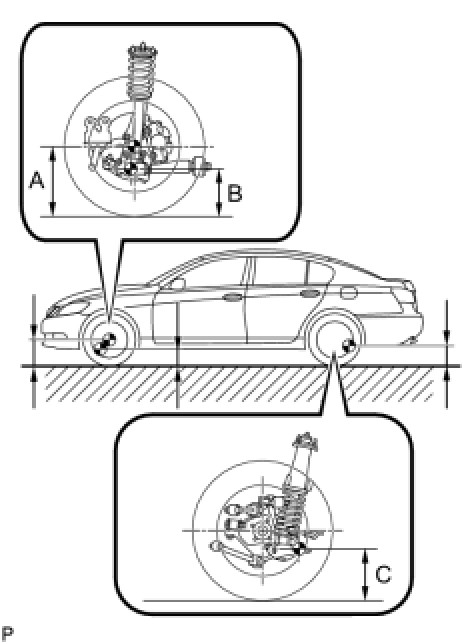

Measuring points
A = Ground clearance of front wheel center
B = Ground clearance of front center position of front suspension lower arm assembly front bush installation
C = Ground clearance of rear center position of rear suspension No. 2 arm bush installation bolt screw thread
